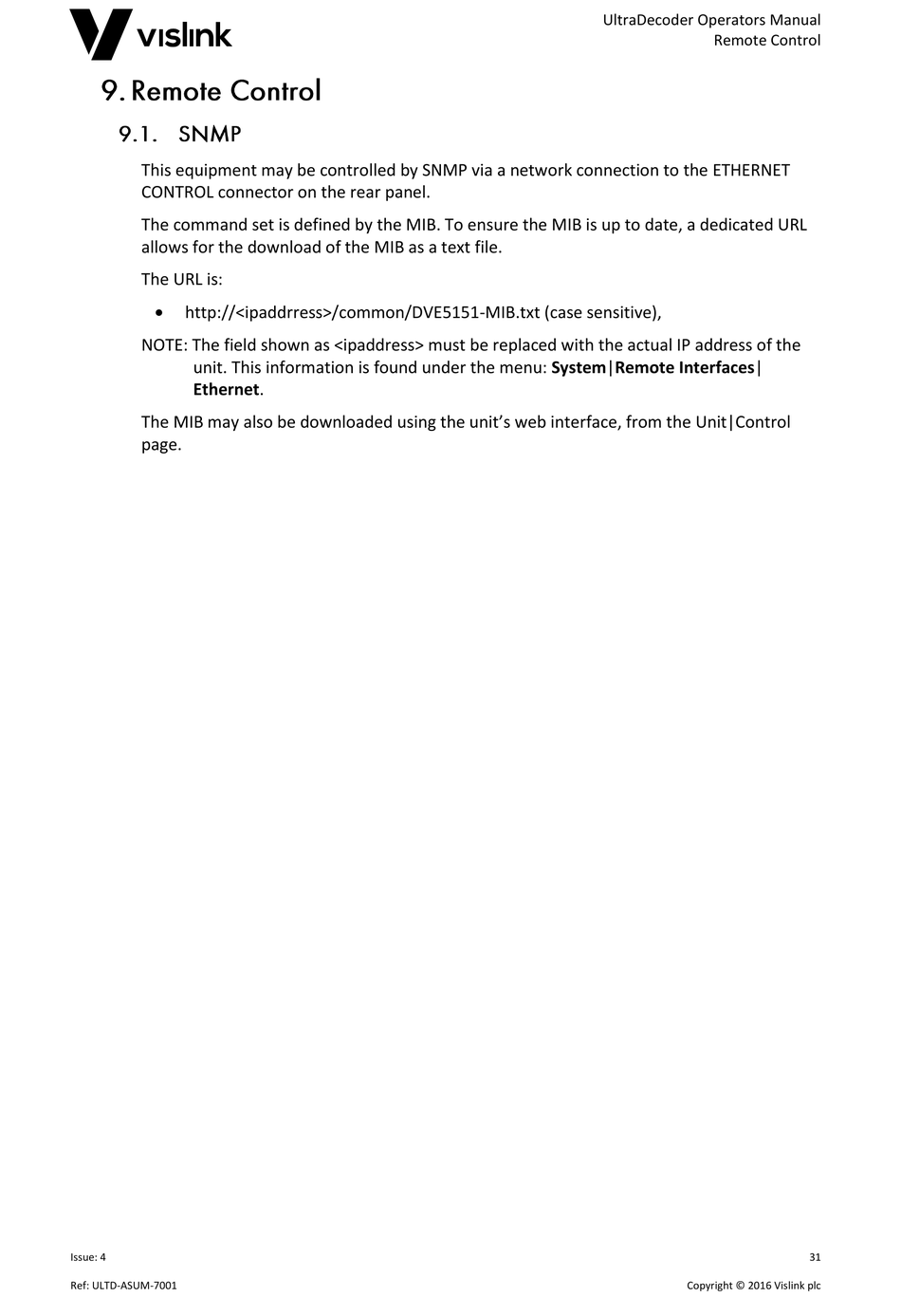

This equipment may be controlled by SNMP via a network connection to the ETHERNET
CONTROL connector on the rear panel.
The command set is defined by the MIB. To ensure the MIB is up to date, a dedicated URL
allows for the download of the MIB as a text file.
The URL is:
http://<ipaddrress>/common/DVE5151-MIB.txt (case sensitive),
NOTE: The field shown as <ipaddress> must be replaced with the actual IP address of the
unit. This information is found under the menu: System|Remote Interfaces|
Ethernet.
The MIB may also be downloaded using the unit's web interface, from the Unit|Control
page.
Issue: 4
Ref: ULTD-ASUM-7001
UltraDecoder Operators Manual
Remote Control
Copyright © 2016 Vislink plc
31
