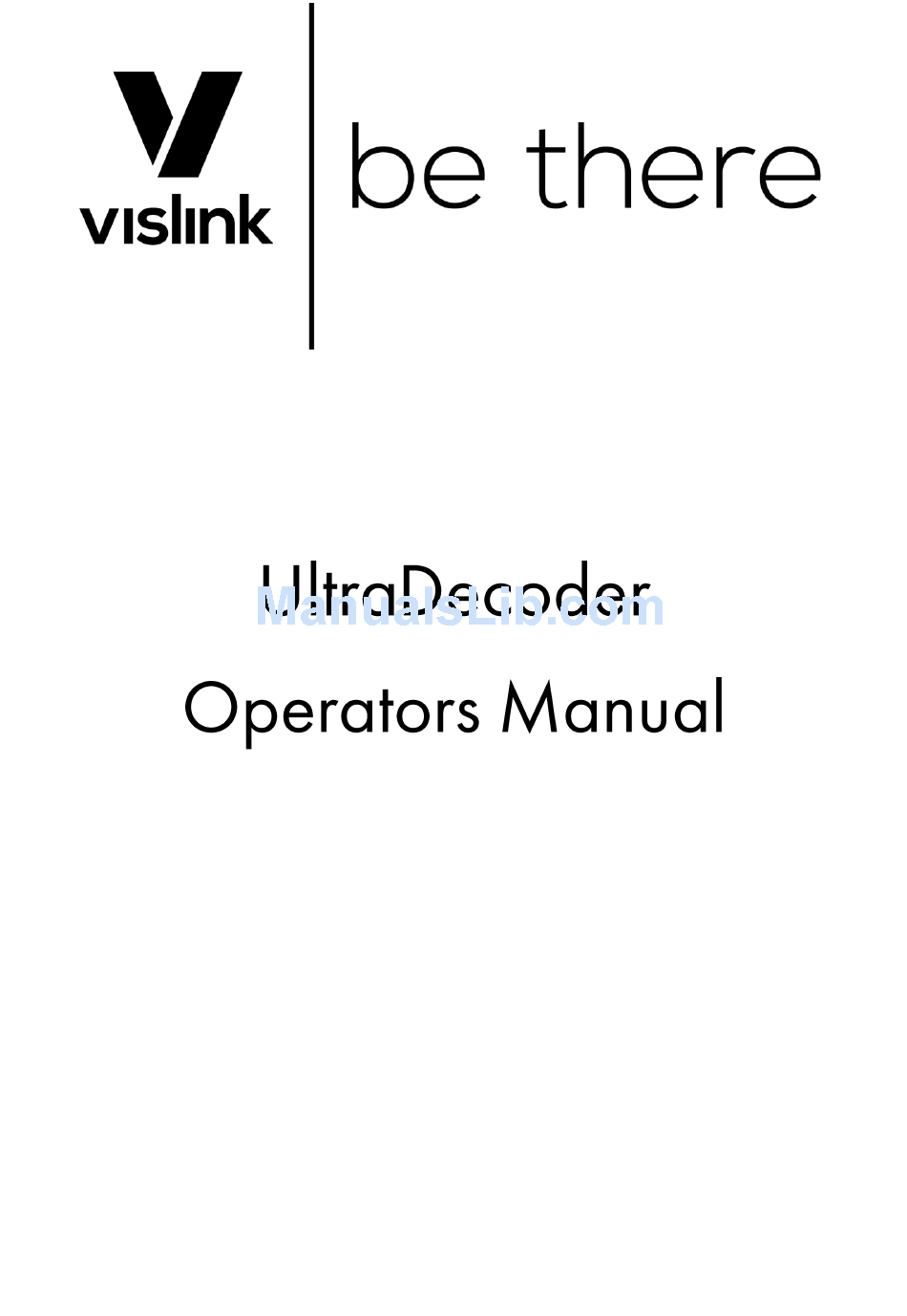

Vislink UltraDecoder Operator's Manual

1ru, half-rack width hevc & 4k uhd capable decoder

Hide thumbs Also See for UltraDecoder:

Operator's manual (43 pages)

Operator's manual (43 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

VISLINK. Vislink House, 27 Maylands Avenue, Hemel Hempstead, Hertfordshire, HP2 7DE, United Kingdom.

Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0)1442 431301 ● Email: sales@vislink.com ● Website: www.vislink.com

Company Registered in England no. 1910243 VAT registration no. 448 636 222

Registered Office: Marlborough House, Charnham Lane, Hungerford, Berkshire, RG17 0EY

Table of Contents

Need help?

Do you have a question about the UltraDecoder and is the answer not in the manual?

Questions and answers

Summary of Contents for Vislink UltraDecoder

Page 1 VISLINK. Vislink House, 27 Maylands Avenue, Hemel Hempstead, Hertfordshire, HP2 7DE, United Kingdom. Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0)1442 431301 ● Email: sales@vislink.com ● Website: www.vislink.com Company Registered in England no. 1910243 VAT registration no. 448 636 222...
Page 2 The information contained in this manual remains the property of Vislink and may not be used, disclosed or reproduced in any other form whatsoever without the prior written permission of Vislink. Vislink reserves the right to alter the equipment and specification appertaining to the equipment described in this manual without notification.
Page 3 AUTOBOOT P00016 Vt00 modified. Miscellaneous corrections. Versions contained in 2016-03- 16_Ultradecoder General revision for new release. Controller software: 17/3/2016 Updated template to new look AUTOBOOT_P0016_V1009 manual. HEVC decoder software: 9261update-2016-01-20_16-29-20 Issue: 4 Page : iii Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 4: Table Of Contents
6.8. ASI OUT ..........................14 6.9. 3G SDI ........................... 14 6.10. 4K HDMI ..........................15 6.11. AC Power ..........................15 IP Setup ........................17 7.1. Basic ............................17 Issue: 4 Page : iv Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 5 USB Transfer ......................25 8.3.2.3.1. Recall ........................26 8.3.2.3.2. Store ........................26 8.3.2.4. Restore Defaults ....................26 8.3.2.4.1. Restore Defaults....................26 8.3.2.4.2. IP Defaults ......................26 8.3.3. Remote Interfaces ......................26 Issue: 4 Page : v Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 6 Appendix D Declarations of Conformity ..............41 D.1. EC Declaration of Conformity ....................41 D.2. Federal Communications Commission Statement ............... 42 Appendix E Full Menu Tree ..................43 Issue: 4 Page : vi Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 7 Unit Setup Menu Overview ..................22 Table 8-3 System Setup Menu Overview ..................24 Table 9-1 Web Browser Overview Functions ................32 Table C-1 Maintenance Error Table .................... 39 Issue: 4 Page : vii Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 9: Introduction
Introduction Figure 1-1 Ultra Decoder Overview The Vislink UltraDecoder is the lightest new 1RU, half-rack width HEVC & 4K UHD capable decoder in the world. The system uses the latest advanced HEVC decoding techniques to offer up to 50% bit-rate reduction compared to H.264.
Page 11: Read Me First
We recommend you use option 1. above for the initial port addresses configuration. If the unit is to be connected to an external network, with more than one UltraDecoder unit present, then the default IP addresses of the ports must be changed before connecting to the external network in order to prevent IP Address clashes.
Page 13: Quick Start Guide
CAUTION: Make sure you connect the Ethernet ports to your network before reapplying power to avoid the control and decoder subsystems loosing communication. Access the Web Interface using the same IP address as the Ethernet Control port. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 14: Input Configuration
NOTE: Only one change can be made at a time. If the ASI IN input is selected, then no further input configuration is required. Figure 3-1 Routing Tab Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 15: Figure 3-2 Ip Video Tab
IP Video must be configured with matching settings. A tick will appear in the status box top in the page header Once the system detects incoming ASI or IP packets. Figure 3-2 IP Video Tab Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 16: Output Configuration
3. Change the Play control to PLAY. If a monitor is connected to the HDMI ports (All formats) or SDI ports (HD and SD only) video should now display. Figure 3-3 Decoder Tab Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 17: Specifications
3G SDI SMPTE 424M Feature Description For software upgrades Remote Control 10/100Mb/s Web Browser/SNMP IP Address (factory default) 192.168.2.6 Subnet Mask (factory default) 255.255.255.0 MAC Address 00.1D.65.nn.nn.nn (n will be unit specific) Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 18 @ 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 Feature Description Decoder ISO 14496-3 2006 (HE-AAC) 4 pairs Outputs Embedded Feature Description Type 10/100/1000 Base-T Ethernet IEEE802.3 Ethernet Protocol Encapsulation for ASI – RTP (RFC2250), ARP, IPv4, IGMPv2/3, TCP/UDP Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 19: Front Panel
˄ ˅ ˂ ˃ These buttons are used to navigate up, down, left and right around the menu screens. This button will apply and store the selected value when editing an item. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 20: Menu Screen
This connector provides the facility to upgrade the unit’s software via a USB memory stick, as well as downloading and uploading the unit configuration. See Appendix A for details on upgrading the unit. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 21: Rear Panel
UltraCoder. Normally this is configured at the factory for an open circuit indicating a fail. This configuration may be reversed by the use of internal status link on the control PCB. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 22: Eth. 2
The ETH.2 connector is used by the control subsystem for configuring the decoder. ETH. 2 should be connected directly to the rear panel ETHERNET CONTROL port by the supplied short Ethernet cable or, if remote control of the UltraDecoder is required, then the connection must be made via a network switch.
Page 23 WARNING: Dangerous voltage are evident. Make sure you disconnect the mains power and external IEC plug before removing any lids or covers that expose any internal components. Not following this warning may lead to serious personal injury or death. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 25: Ip Setup
ASI IN connector. An Ethernet cable must be connected directly between the IP VIDEO to ETH. 1 connectors and another cable connected directly between the ETHERNET CONTROL and ETH. 2 connectors. Figure 7-1 Basic Control Ethernet Connection Configuration Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 26: Web Browser Control
ETHERNET CONTROL and ETH. 2 connectors, and additional cables must be connected between a network switch and the IP VIDEO and the ETH. 1 connectors. Figure 7-3 IP VIDEO IN Connection Configuration Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 27: Complete Configuration
Different switches or VLANs can be used for the Control and IP Video as long as the relevant ports can communicate as stated in the previous examples, above. Figure 7-4 Complete Configuration Connection Configuration Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 29: Menu Navigation
UHD formats are: 2160x3840 and 4K is 2160x4096 Selecting this option will initiate a reboot of the internal decoder. To perform this action, change the setting to YES and then press the ENTER button. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 30: Ip Options
ETHERNET CONTROL and ETH. 2 are connected to the same network. This option defines the subnet mask of the IP VIDEO connector. This option defines the gateway of the IP VIDEO connector. For future use. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 31 Available settings are:  Off - no ASI output.  ASI In - ASI from the physical rear panel connector.  IP In - de-encapsulated ASI from the IP VIDEO input. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 32: System
Licences Line 1 Line 2 State Time Time Date Format Run Hours Miscellaneous Lamp Test Contrast Fault Test Reboot Help Unit Version Decoder Version Support Table 8-3 System Setup Menu Overview Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 33 3. When the display changes, requesting confirmation of the action, press ENTER to confirm or ESCAPE to cancel. This option provides the facility to upload from or download presets to a USB memory stick. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 34 To perform this action: 1. Change the setting to YES. 2. Press the ENTER button. This section provides the facility to configure the Ethernet settings for remote control by either SNMP or web browser. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 35: Mask
CATUION: Entering an incorrect licence may render the unit inoperable. This non-editable option displays whether the licence code has been accepted by the unit. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 36: State
This menu displays the physical serial number of the unit, the current build version of the software and kernel version. This menu displays the serial number and version of the internal decoder. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 37: Support
UltraDecoder Operators Manual Menu Navigation This menu displays contact information for Vislink customer support in the event that it is required. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 39 NOTE: The field shown as <ipaddress> must be replaced with the actual IP address of the unit. This information is found under the menu: System|Remote Interfaces| Ethernet. The MIB may also be downloaded using the unit’s web interface, from the Unit|Control page. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 40: Web Browser
Set button, or select the Enter button to apply. Favourites selection. Click on this button to illuminate it, to make it accessible from the favourites button at the top right of the screen. Table 9-1 Web Browser Overview Functions Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 41: Figure 9-2 Routing Tab Overview
NOTE: Only one switch may be changed at a time. An example of the routing page is shown in Figure 9-2. NOTE: The display will differ depending on the unit’s configuration and the licences applied. Figure 9-2 Routing Tab Overview Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 42: Alarm Logging
Further options are provided to clear events and to view and save the entire list of alarms. Figure 9-3 Alarm Logging Tab Overview Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 43: Figure A-1 Basic Configuration
UltraDecoder Operators Manual Remote Control The UltraDecoder is composed of two subsystems integrated within the chassis namely a control assembly and a decoder assembly. Both assemblies should be updated in sequence, using the following procedures. You require two formatted, blank USB sticks to complete the upgrade.
Page 44 1. To update the Decoder subassembly, copy the upgrade file named 9261update-xxxxx to a formatted, blank USB stick. 2. Ensure the UltraDecoder is not on a network with other units. 3. Power on the unit to be up-graded. 4. Once fully booted, insert the memory stick containing the upgrade file into rear USB socket.
Page 45 IP Setup|Dest Port. 10. Press ENTER and then ENTER again. The unit should now be functioning correctly and will now be configured to use the default IP addresses as shown in Figure B-1. Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 47: Table C-1 Maintenance Error Table
Encoder Fault Restart unit. If the fault continues, refer to factory/agent. Fan 1 Stopped Refer to factory/agent for spares. Fan 2 Stopped Refer to factory/agent for spares. Table C-1 Maintenance Error Table Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
Page 50 Consult the dealer or an experienced radio/TV technician for help. Properly shielded and grounded cables and connectors must be used to meet FCC emission limits. Vislink Ltd is not responsible for any radio or television interference caused by using other than recommended cables or connectors.
Page 51 Preset: Preset: Presets to USB Restore Defults Mask Line 1 Date Contrast Name Name Presets from USB Restore Defults Gway Line 2 Format Fault Test Recall Store State Run Hours Reboot Issue: 4 Ref: ULTD-ASUM-7001 Copyright © 2016 Vislink plc...
