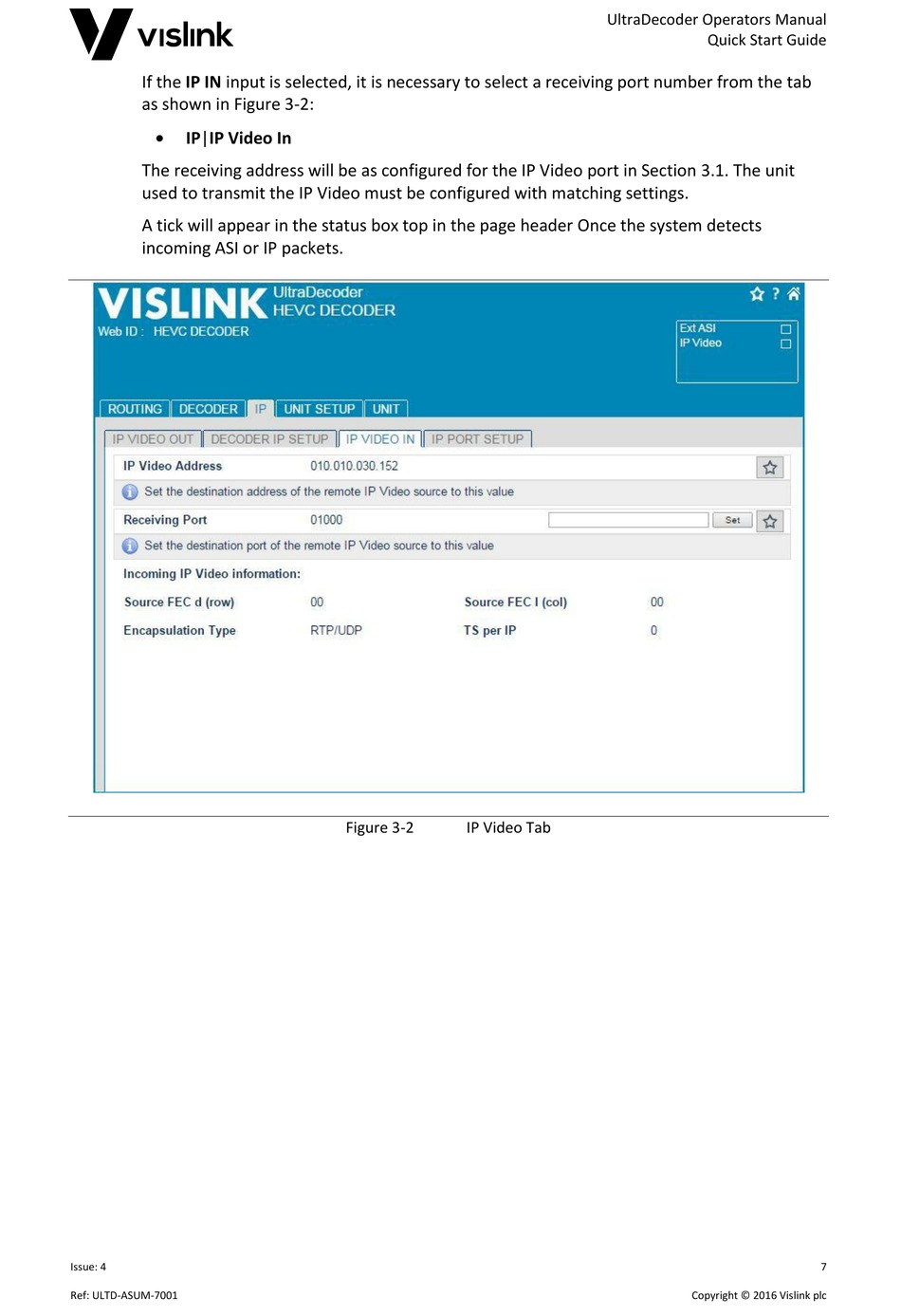

Figure 3-2 Ip Video Tab - Vislink UltraDecoder Operator's Manual

If the IP IN input is selected, it is necessary to select a receiving port number from the tab
as shown in Figure 3-2:

IP|IP Video In
The receiving address will be as configured for the IP Video port in Section 3.1. The unit
used to transmit the IP Video must be configured with matching settings.
A tick will appear in the status box top in the page header Once the system detects
incoming ASI or IP packets.
Issue: 4
Ref: ULTD-ASUM-7001
Figure 3-2 IP Video Tab
