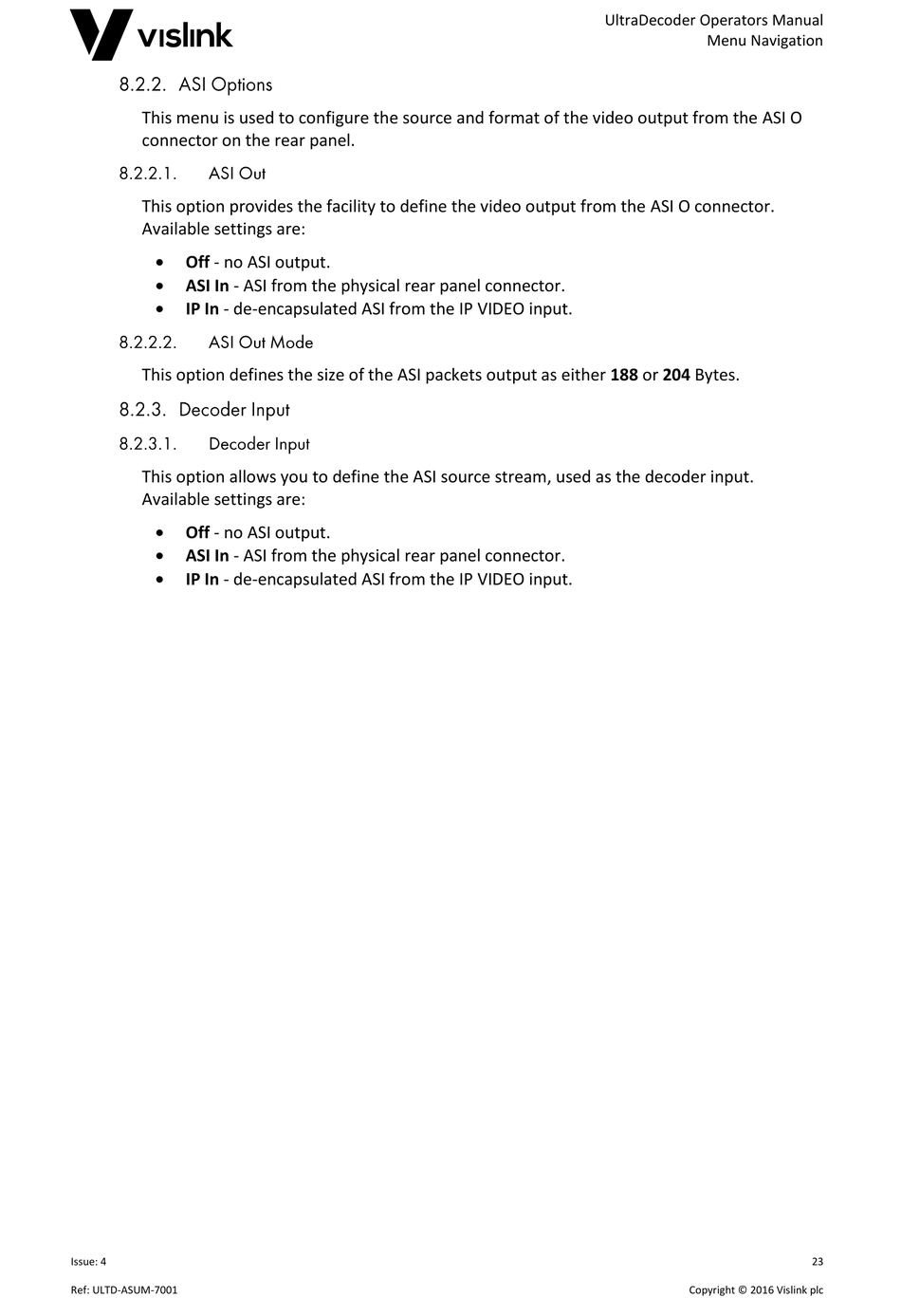

Vislink UltraDecoder Operator's Manual page 31

This menu is used to configure the source and format of the video output from the ASI O
connector on the rear panel.
This option provides the facility to define the video output from the ASI O connector.
Available settings are:

Off - no ASI output.

ASI In - ASI from the physical rear panel connector.

IP In - de-encapsulated ASI from the IP VIDEO input.
This option defines the size of the ASI packets output as either 188 or 204 Bytes.
This option allows you to define the ASI source stream, used as the decoder input.
Available settings are:

Off - no ASI output.

ASI In - ASI from the physical rear panel connector.

IP In - de-encapsulated ASI from the IP VIDEO input.
