IRD6200 Satellite IRD
User Manual
Vislink Technologies, Inc., Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK
Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0) 1494 775356 ● Email: sales@vislink.com ● Website: www.vislink.com
Company Registered in England & Wales no. 10523708 ● VAT registration no. GB 260 012 169
Registered Office: Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRD6200 and is the answer not in the manual?

Questions and answers

Related Manuals for Vislink IRD6200

Summary of Contents for Vislink IRD6200

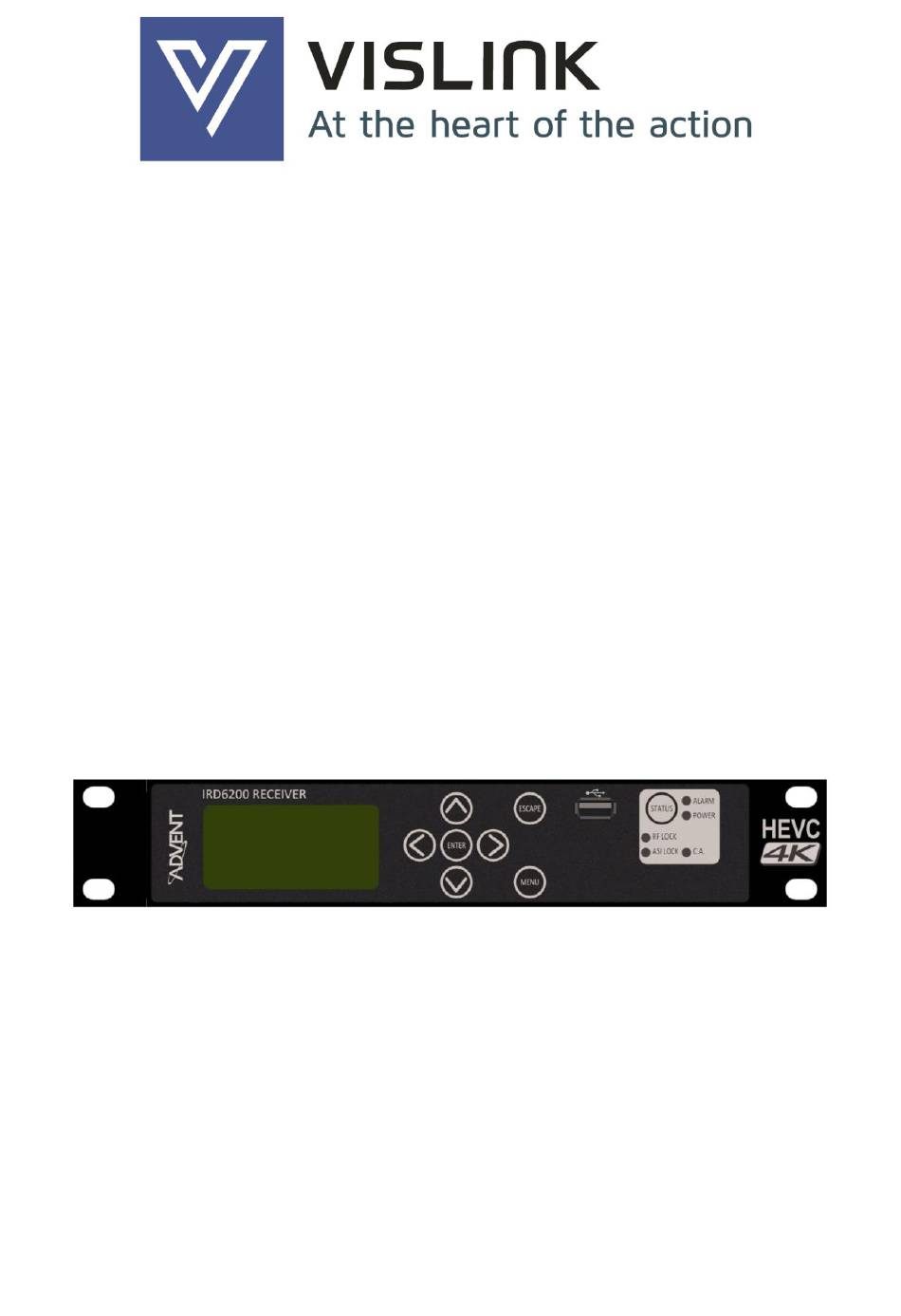

  • Page 1 Vislink Technologies, Inc., Waterside House, Earls Colne Business Park, Colchester, Essex, CO6 2NS, UK Telephone: +44 (0)1442 431300 ● Facsimile: +44 (0) 1494 775356 ● Email: sales@vislink.com ● Website: www.vislink.com Company Registered in England & Wales no. 10523708 ● VAT registration no. GB 260 012 169...
  • Page 2 Document Disclaimer The information contained in this manual remains the property of Vislink and may not be used, disclosed or reproduced in any other form whatsoever without the prior written permission of Vislink. Vislink reserves the right to alter the equipment and specification appertaining to the equipment described in this manual without notification.
  • Page 3 Document History Version Date Modification FW Ver. 24/10/19 First Issue Issue No: 1 Page: iii Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 4: Table Of Contents

    4. Main Display ......................11 4.1. RF Parameter setting ......................11 4.1.1. Setup Inputs ........................11 4.1.2. Status ..........................11 4.2. Decoder Menus ........................12 4.2.1. Inputs ..........................12 Issue No: 1 Page: iv Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.
  • Page 5 4.6. Webserver Operation over RJ45 Port ................15 4.6.1. How Do I Set Up a Basic Connection? ................15 4.6.2. Accessing the IRD6200 via Web Browser ..............16 4.6.3. Routing Page ........................16 5. Licenses and Upgrades ..................17 5.1.
  • Page 6 Table of Figures Figure 2-1 Input / Output Connections ..................5 Figure 3-1 IRD6200 Front Panel ....................9 Figure 4-1 Web Page Example ....................16 Table of Tables Table 4-1 Audio .......................... 12 Table 4-2 Presets Menu Overview ..................14 Table 4-3 Control Interface Menu Overview .................

  • Page 7: Safety And Compliance

    To ensure awareness of potential hazards, all personnel concerned with the operation or maintenance of the equipment must study the information that follows, together with local site regulations. CAUTION: We strongly recommended returning all RF equipment to Vislink for servicing. WARNING: GaAs / BeO Hazard: Certain components inside the equipment contain Gallium Arsenide and Beryllium Oxide that are toxic substances.

  • Page 8: Disposal Instructions

    NOTE: In Europe dispose of all equipment in accordance with the European Environmental directive. 1.3. Environmental CAUTION: Protect the unit from dripping or splashing water/fluids. When used outdoors, protect the unit using a rain cover. Issue No: 1 Page: 2 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 9: Introduction

    IRD6200 IRD User Manual Introduction 2. Introduction The IRD6200 is a flexible, high performance product, based on DVBS / S2 / S2X demodulator and integrated MPEG-2, H.264 and HEVC UHD/HD/SD decoder. Various licenses are available to purchase. Licensed options are: ...

  • Page 10: Inputs

    AC input 90 VAC to 264 VAC 50Hz to 60Hz; <100VA 2.10.4. Environmental:  Temperature (operating):  0˚C to 50˚C [32˚F to 122˚F]  Humidity (non-condensing):  Issue No: 1 Page: 4 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 11: Optional Licenses

    IRD6200 IRD User Manual Introduction 2.11. Optional Licenses NOTE: Licenses are available to purchase online via www.vislink.shop or contact your local Regional Sales Manager (RSM) or email sales@vislink.com.  HEVC 4K, UHD  HEVC 10 bit  H.264, SD/HD ...

  • Page 12: Pinout Information

    75Ω mini-BNC chassis mounted socket. Complies with ISO/IEC 13818-2 – 188- burst / byte mode. Route the ASI output from the Demodulator or external ASI input for decoding by an external decoder. Issue No: 1 Page: 6 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 13: Data

    The relay default is factory configured for an “open circuit” indicating a fail. To reverse this configuration use the internal ‘status’ link on the control PCB. The relay contacts open if the IRD6200 loses power or has a “major” alarm. 15W PIN# Signal...
  • Page 14 IRD6200 IRD User Manual Introduction This page is intentionally unused. Issue No: 1 Page: 8 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 15: Controls

    If more than one alarm is active (as indicated in the STATUS top right corner), pressing the Up and Down arrow keys will cycle through them. Press ESCAPE or MENU to exit: Issue No: 1 Page: 9 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 16: Leds

    For update information, see the unit’s firmware update notes, available from the Vislink ftp site:  ftp://ftp.vislink.com/Vislink%20Products/IRD6200/ NOTE: The USB port is not for remote control or for charging mobile devices. Issue No: 1 Page: 10 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 17: Main Display

    LNB 1 (2) 22KHz: this is used for some types of LNB that have band switching based on the presence of the 22 KHz tone. 4.1.2. Status Here a detailed view of the demodulated parameters can be viewed. Issue No: 1 Page: 11 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 18: Decoder Menus

    8 Pairs 4 Pairs MPEG-2 8 Pairs 4 Pairs 8 Pairs 4 Pairs 1 Pairs 1 Pairs Table 4-1 Audio 4.2.5. De-Scrambling Configure BISS-1 or BISS-E decryption keys. Issue No: 1 Page: 12 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 19: Genlock

    0 and 540, for positive offsets use the formula, 1124 minus the offset required as the front panel value. Pixel offset range is 0 to 2749. Issue No: 1 Page: 13 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 20: Unit Setup Menu

    Reboot Table 4-4 Defaults Menu Overview 4.3.4. Licenses Enter license codes and display which features you have licensed in the unit. See Section 5.1 for more details. Issue No: 1 Page: 14 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.

  • Page 21: Time

    4.4. Support Menu The Support menus display useful information. This information helps if you need to contact Vislink. In particular, the versions of the various modules in the unit. 4.4.1. Diagnostics Use this menu to for unit information, such as internal temperatures.

  • Page 22: Accessing The Ird6200 Via Web Browser

    5. Once you have configured the IP ports and connected the RJ45 cable, an LED illuminates on the RJ45 port to indicate a connection. 4.6.2. Accessing the IRD6200 via Web Browser 1. From your chosen browser, in the address bar, enter the IP address for the unit.

  • Page 23: Licenses And Upgrades

    Hardware serial numbers are located on the unit’s chassis. 5.2. Firmware Upgrades To upgrade the unit’s firmware, refer to the firmware release note for your unit. Firmware update information is available from the Vislink FTP site, via the Vislink website: ...
  • Page 24 IRD6200 IRD User Manual Licenses and Upgrades This page is intentionally unused. Issue No: 1 Page: 18 Ref: IRD6-ASUM-700X Copyright © 2019 Vislink Technologies, Inc.
