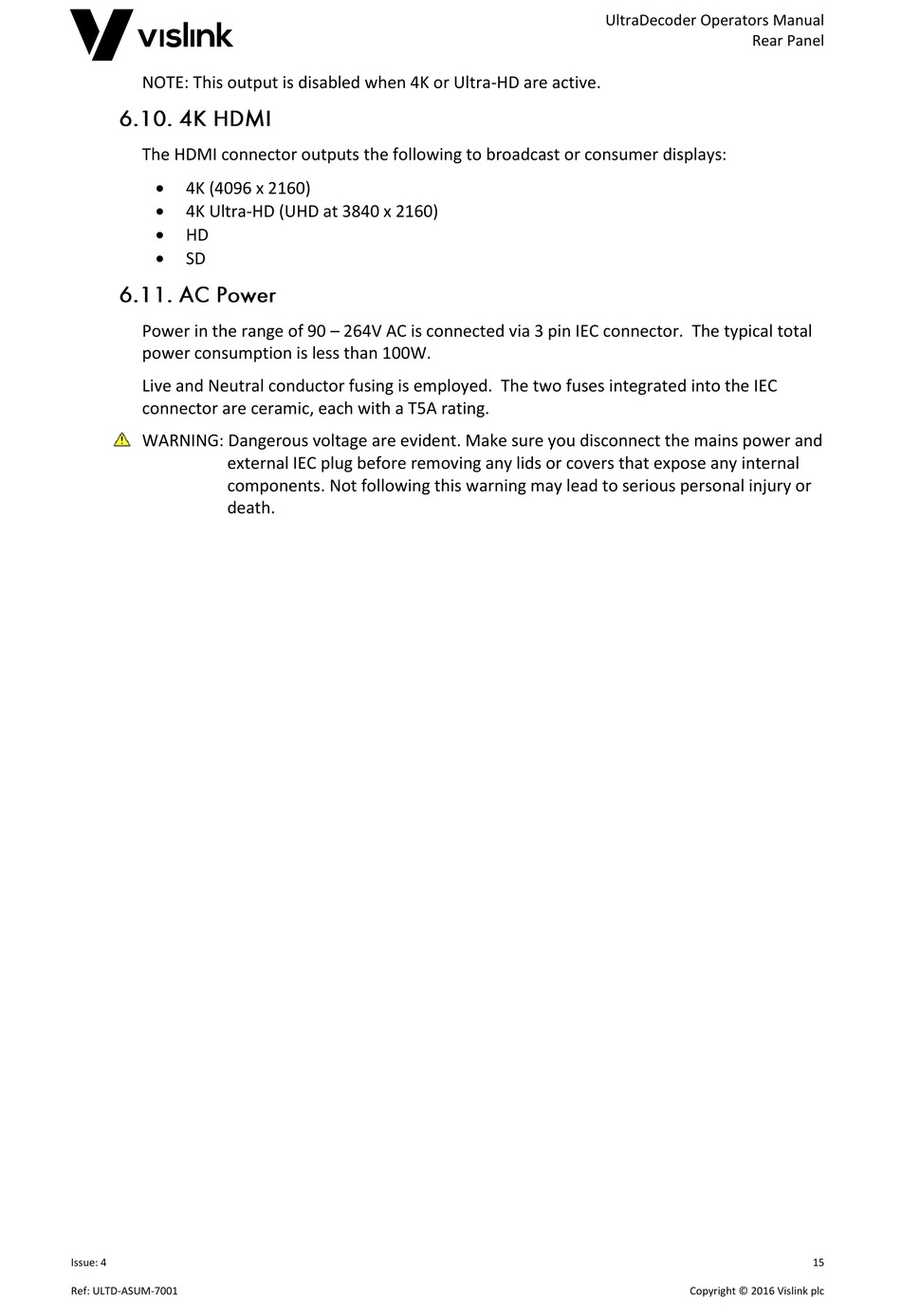

Vislink UltraDecoder Operator's Manual page 23

NOTE: This output is disabled when 4K or Ultra-HD are active.
The HDMI connector outputs the following to broadcast or consumer displays:

4K (4096 x 2160)

4K Ultra-HD (UHD at 3840 x 2160)

HD

SD
Power in the range of 90 – 264V AC is connected via 3 pin IEC connector. The typical total
power consumption is less than 100W.
Live and Neutral conductor fusing is employed. The two fuses integrated into the IEC
connector are ceramic, each with a T5A rating.
WARNING: Dangerous voltage are evident. Make sure you disconnect the mains power and
external IEC plug before removing any lids or covers that expose any internal
components. Not following this warning may lead to serious personal injury or
death.
