Refer to Figure 3-3 for the following output configuration:
1. If the incoming ASI stream contains more than one program, select the program
number the Select Program Number from the dropdown list in the Decoder tab.
2. Select the output format from the Video format field. The decoder will automatically
recognize the format of the incoming ASI stream and will up-scale or down-scale to
the selected format.
NOTE: It is important to select the same frame rate as the incoming ASI stream as the
decoder cannot change this.
3. Change the Play control to PLAY.
If a monitor is connected to the HDMI ports (All formats) or SDI ports (HD and SD only)
video should now display.
Issue: 4
Ref: ULTD-ASUM-7001

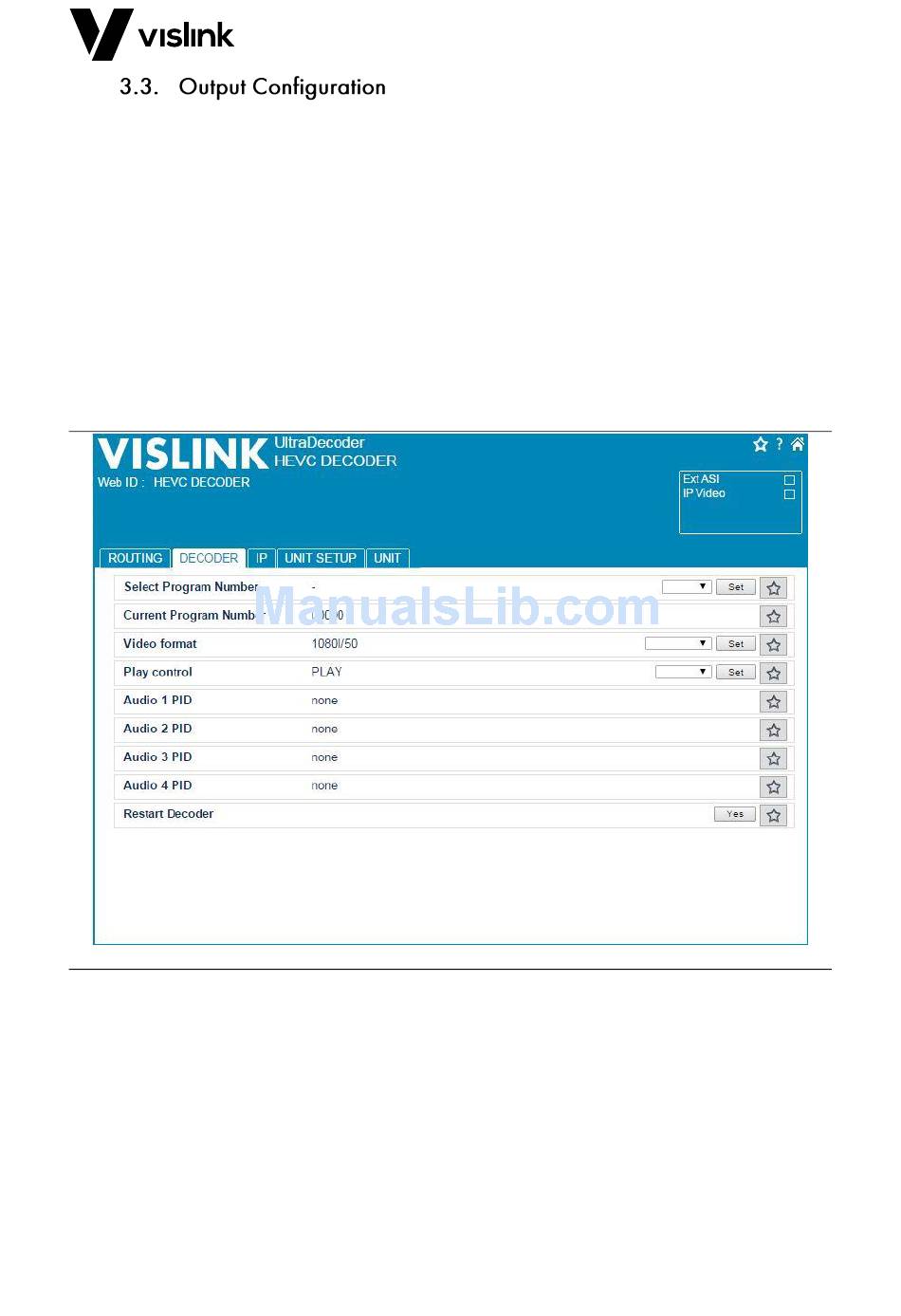

Figure 3-3 Decoder Tab
