Operation Manual
Celeb 401 DMX LED
®
Part No. 3100085 Rev 01
07-24-2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Celeb 401 DMX LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kino Flo Celeb 401 DMX LED

Summary of Contents for Kino Flo Celeb 401 DMX LED

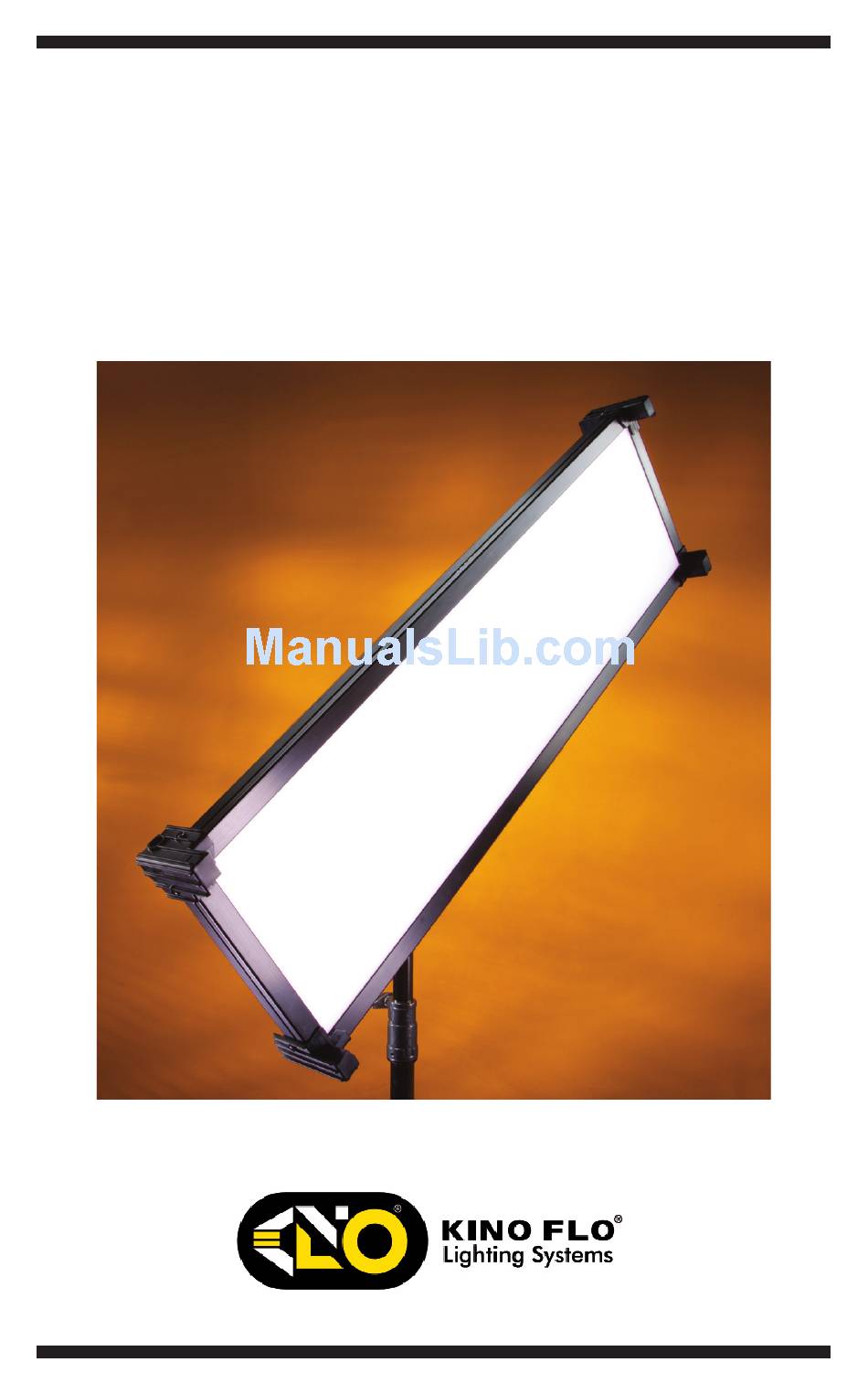

  • Page 1 Operation Manual Celeb 401 DMX LED ® Part No. 3100085 Rev 01 07-24-2015...
  • Page 2 Celeb 401 DMX LED Fixtures Celeb 401 Center Mount CEL-401C-120U Celeb 401 DMX Center Mount, Univ 120U CEL-401C-230U Celeb 401 DMX Center Mount, Univ 230U Celeb 401 Yoke Mount CEL-401Y-120U Celeb 401 DMX Yoke Mount, Univ 120U CEL-401Y-230U Celeb 401 DMX Yoke Mount, Univ 230U...
  • Page 3 Celeb 401 DMX LED Kits KIT-C401-120U Celeb 401 DMX Center Mount Kit, Univ 120U KIT-C401-230U Celeb 401 DMX Center Mount Kit, Univ 230U Kit Contents: 1 Celeb 401 DMX Center Mount 1 Flight Case Celeb 401 Center Mount Kit Weight: 52.5 lb (24kg) Dimensions: 53.5 x 11 x 16.5”...
  • Page 4 Celeb 401 DMX Control Panel A) Kelvin Preset Buttons: Kelvin buttons come preset at the factory. Factory defaults left to right are: 2700K, 3200K, 4500K, 5500K, 6500K. User can also use these preset buttons to store custom Kelvin settings. B) DMX ADDRESS – Use to set DMX address. The Celeb 401 automatically assigns 2 channels.
  • Page 5 Fixture Power AC Input The Celeb is powered AC and includes an IEC connection. A locking power cord is included with the fixture. To remove the plug, move the red tab to release. The ballast has a built-in power supply with universal input from 100-240VAC.
  • Page 6 Start Up When power is first applied to the fixture, the alphanumeric display shows the current software version. Press the On/Off button to turn on the fixture. The display will show its last setting. Kelvin Selection There are 5 Kelvin factory preset buttons.
  • Page 7 Kelvin Custom Settings In KELVIN mode, the Kelvin can be fine tuned with the adjustment knob to custom settings between 2700K to 6500K. The setting can be assigned to any preset button by holding down the desired button for 5 seconds. The Kelvin display will flash once the setting is registered.

  • Page 8: Reset Factory Settings

    Reset Factory Settings To reset factory settings, press and hold the LOCK / RESET button for 5 seconds. The indicator light will turn green and settings will reset to factory settings. Lock Mode Press the LOCK / RESET button to lock the Kelvin and Dim settings.

  • Page 9: Dmx Operation

    DMX Operation The Celeb 401 DMX operates on two DMX channels using DMX512. The first channel operates dimming; the 2nd channel operates Kelvin color temperature control. Once an address is selected, the fixture automatically assigns 2 channels. Press and hold the DMX ADDRESS button to select a DMX address.
  • Page 10 Note: All Kelvin indicator lights will turn green if a valid DMX signal is present. If a fixture loses its DMX signal, it will hold its last DMX command. For this reason, it is important to turn a fixture off using the DMX commands. For example, if you try to turn off the lights by turning off the dimmer board, the lights will remember their last DMX command and stay on.

  • Page 11: Dmx Cables

    Celeb 401 DMX Kelvin Color Temperature Dimmer Level Kelvin Color Dimmer Temperature Level 6500K 100% 5500K 4500K 3200K 2700K Note: The detailed DMX mapping for the Celeb 401 DMX fixture can be downloaded fromour website at www.kinoflo.com. IMPORTANT! The dimmer board/light console should have its channel set to LINEAR light output response.
  • Page 12 Celeb 401 Wireless Operation The Celeb 401 includes a built-in Lumen Radio receiver and can be operated wirelessly with a Lumen Radio transmitter (sold separately). Wireless is an option to using DMX cables. Set DMX address as previously instructed on p. 9. For more infor- mation on Lumen Radio Receiver/Transmitter, see www.LumenRadio.com.
  • Page 13 Center Mount MTP-LM Mounted on Mounted to pipe grid a junior stand The Celeb 401 Center Mount fixture includes a Lollipop w/ Junior Pin (28mm) (MTP-LM) which allows the fixture to be mounted directly onto a junior stand or hung from a grid with a junior pipe clamp. Note: The handles on the back of the fixture provide attachment points for a safety chain.

  • Page 14: Yoke Mount

    Yoke Mount MTP-I80 The yoke has a ½” hole to accept industry standard mounting hardware. The Celeb 401 Yoke Mount fixture can hang from a grid by a junior pipe hanger using a Junior Pin Assembly for Yoke (MTP-I80), sold separately. Note: The yoke also provides an attachment point for a safety chain.
  • Page 15 Operating Pole-Op The Blue cup alters the Pan (left or right). The White cup alters the Tilt (up or down). Warning! Do not pull yoke to adjust tilt. Turn the white knob counter clockwise to angle the yoke 90°. (ParaBeam shown for illustration purposes only.) Mount Option/Rope Hang Accessory holders are also designed to enable 4-point rope hangs for specialty rigging applications.

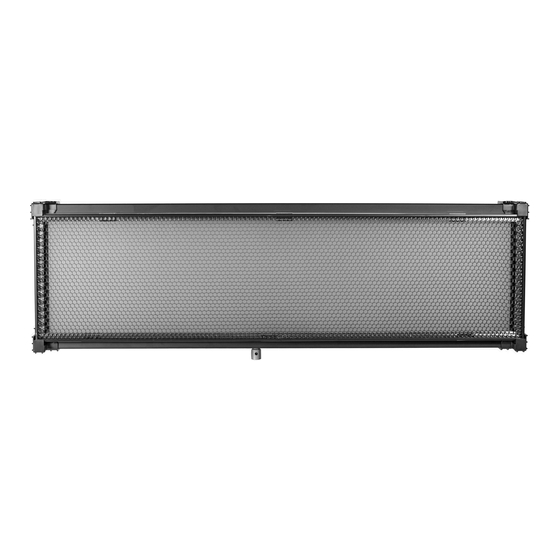

  • Page 16 Inserting Gel Frame and Louver The Celeb includes spring loaded accessory holders and two channels to hold the Gel Frame and Honeycomb Louver. Place the long edge of the Gel Frame or Honeycomb Louver into the lower channel. Press down on the left and right corners of the Gel Frame or Louver and slip the upper edge into the upper channel of the fixture.

  • Page 17: Troubleshooting

    Troubleshooting Display Protection Condition Description Normal Condition Cause/Solution Over Current Protection Shut down current 2.52A 2.1A @ 100% dim Repair Service in excess of 20% Center Over Voltage Protection Shut down voltage @ Below 28V Wrong Battery excess 30V or 24V Battery w/ too high Open Voltage Under Voltage Protection...
  • Page 18 Accessories BRD-CE4 Celeb 401 Barndoors (Set of 4) LVR-CE460-P Celeb 401 Louver/HP, 60° MTP-I80 Junior Pin Assembly for Yoke (28mm) MTP-LM Kino 81 Lollipop w/ Junior Pin (28mm) KAS-CE4 Celeb 401 Center Flight Case KAS-CE4-C Celeb 401 Center Travel Case KAS-CE4-S Celeb 401 Center Ship Case KAS-CE4-Y...

  • Page 19: Fixture Specifications

    Fixture Specifications CEL-401C-120U Celeb 401 DMX Center Mount, Univ 120U AC Input Voltage: 100~240VAC 50/60Hz, 210W Amperage VAC: 1.8A at 120VAC DC Input Voltage: 18~28VDC, 198W Amperage VDC: 8.25A at 24VDC Kelvin Range: 2700K~6500K Celeb 401 DMX Dimming Range: 100% ~ 1% Center Mount Weight: 26 lb (12kg) Dimensions: 45 x 14 x 5”...
  • Page 20 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
