ETS PARAMETERISATION
The Configuration screen (see Figure 6) is accessible by default after enabling the Fan
Coil function. It contains the following parameters:
PIPE CONFIGURATION
Type of Fan Coil: "2 pipes" or "4 pipes". If "2 pipes", it is necessary to define
the available HVAC modes:
 HVAC Mode: "Cooling", "Heating" or "Cooling + Heating". This
VALVE CONTROL CONFIGURATION
Valve Control Type: "Local" (default option) or "Remote".
http://www.zennio.com

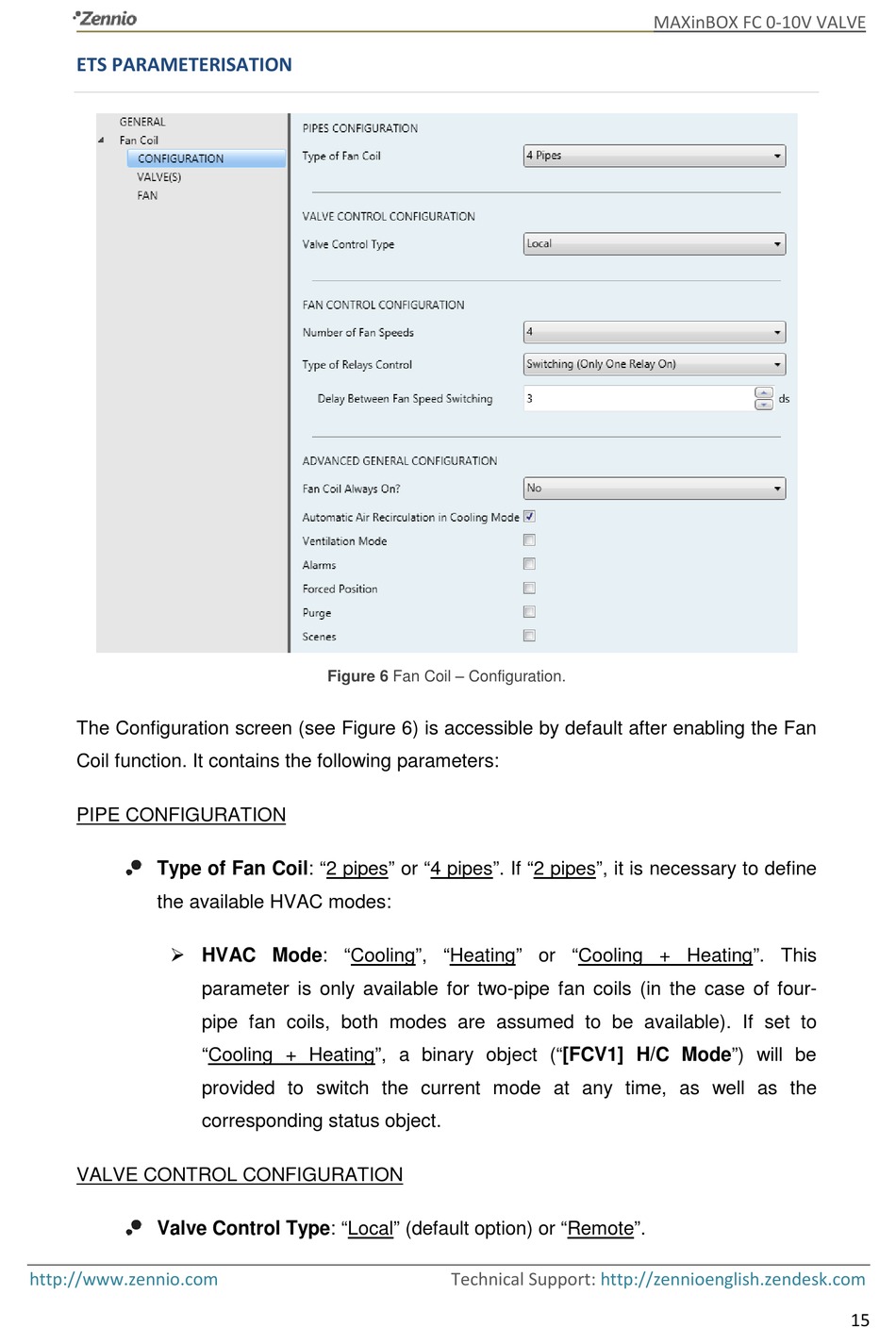

Figure 6 Fan Coil – Configuration.
parameter is only available for two-pipe fan coils (in the case of four-
pipe fan coils, both modes are assumed to be available). If set to
"Cooling + Heating", a binary object ("[FCV1] H/C Mode") will be
provided to switch the current mode at any time, as well as the
corresponding status object.
