Zennio ZCL-8HT230 Quick Start Manual

Heating actuator with 8 outputs 230VAC
ZCL-8HT230
FEATURES
 8 configurable outputs for 230V valve control.
 8 thermostats.
 10 Logic functions.
 Total data saving on power failure.
 Manual control through buttons and status LED indicators.
 Common 230V supply required for the 8 outputs.
 Integrated KNX BCU.
 Size 67 x 90 x 79 mm (4.5 DIN units).

DIN rail mounting (EN 50022), through pressure.
 Conformity with the CE directives (CE-mark on the right side).
1. 230V input (live phase)
5. Programming/Test LED
Programming/test button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe
mode. If this button is held for more than 3 seconds, the device enters the test mode.
Programming/Test LED: programming mode indicator (red). When the device enters into safe mode, it blinks (red) every half second. The manual
mode is indicated by the green color. During the start-up (reset or after KNX bus failure) and if the device is not in safe mode, it emits a red flash.
GENERAL SYSTEM SPECIFICATIONS
CONCEPT
Type of device
Voltage (typical)
Voltage range
KNX
Maximum
supply
consumption
Bus connection
External power supply
Operation temperature
Storage temperature
Operation humidity
Storage humidity
Complementary characteristics
Protection class
Operation type
Device action type
Electrical stress period
Degree of protection
Installation
Minimal clearances
Response on KNX bus failure
Response on KNX bus restart
Operation indication
Weight
PCB CTI index
Housing material
(1)
Maximum consumption in the worst case scenario (KNX Fan-In model)
© Zennio Avance y Tecnología S.L.
2. Valve outputs
DESCRIPTION
Electric operation control device
29VDC SELV
21...31VDC
Voltage
29VDC (typical)
(1)
24VDC
Typical bus connector TP1 for rigid cable 0.80mm Ø
230V 50/60Hz (only phase, for valve supply)
from 0ºC to +55ºC
from -20ºC to +55ºC
5 to 95% RH (no condensation)
5 to 95% RH (no condensation)
Class B
II
Continuous operation
Type 1
Long
IP20, clean environment
Independent device to be mounted inside electrical panels with DIN rail (EN 50022)
Not required
Data saving according to parameterization.
Data recovering change according to parameterization.
Programming LED indicates programming mode (red) and test mode (green). Each
output LED indicates its status (fixed = active output; flashing = overload or short-
circuit error)
181g
175V
PC FR V0 halogen free
Edition 3
3. Output control button
6. Programming/Test button
mA
10.7
15
Further information
HeatingBOX 230V 8X
Technical Documentation
1
4
3
6

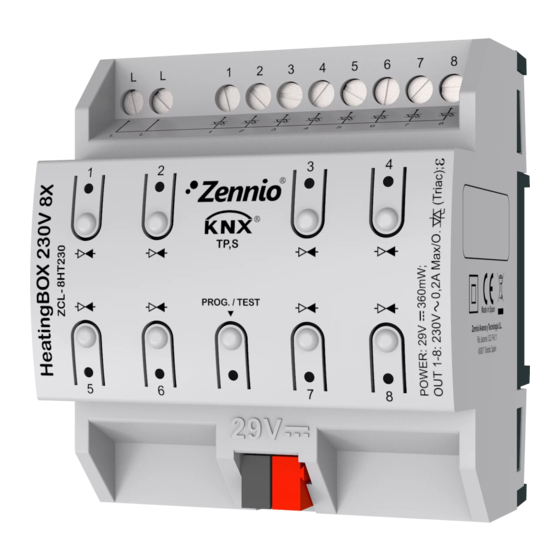

Figure 1. HeatingBOX 230V 8X
4. Output status indicator LED
7. KNX connector
mW
310.3
360
www.zennio.com
2
5
7
Page. 1 / 2
