Altronix eBridge1ST Installation Manual page 3

Fig. 2
eBridge1PCRM
EoC/PoE+ Receiver
eBridge1PCRM
Optional Power Input 24VDC/110mA or 24VAC/200mA
Blue LED Coax link status
RJ45 LEDs Yellow - Speed Green - Activity
Green LED Power and Po
Z1409
altronix.com
100m max.
Powered Switch or NetWay MidSpan
*Note: Caution: once PoE connection is established between eBridgePlus receiver and eBridge1ST,
disconnecting the eBridge1ST will not disable the PoE output voltage from the eBridgePlus receiver.
Although the eBridge1ST can be reconnected, caution should be taken not to connect coax wiring
from eBridgePlus receiver to any non-PoE device.
Fig. 3
Endspan or Midspan
eBridge1ST
www.a1securitycameras.com email: sales@a1securitycameras.com

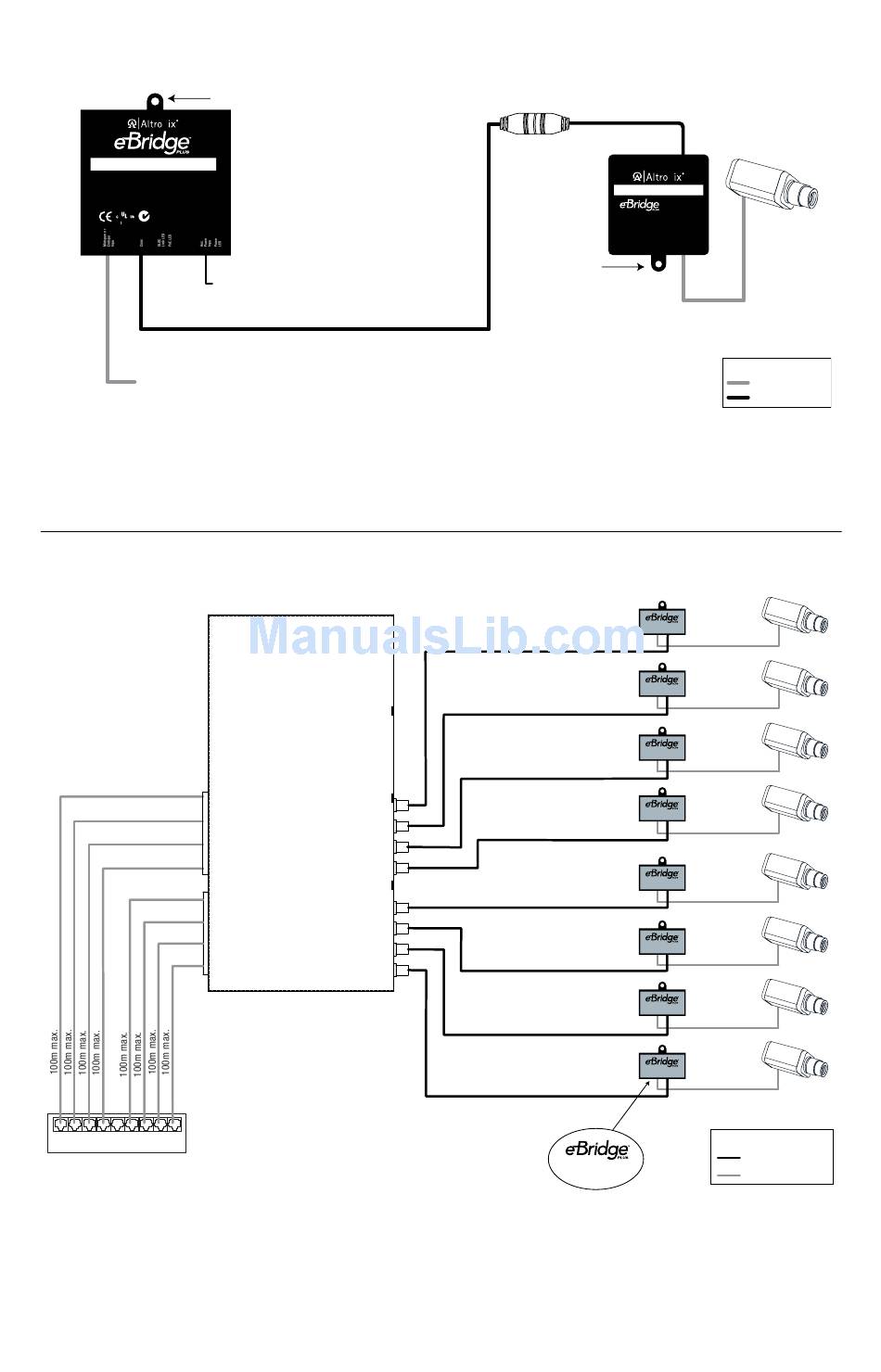

Single PoE Camera Connection:
Mounting Hole
+
Aux. 24VAC
or 24VDC Input
PoE/PoE+ over Coax up to 500m max.
Multiple PoE Cameras Connection:
eBridge8PCRM
Available from A1 Security Cameras
Fig. 2a
eBridge1ST
eBridge1ST - Transceiver
Supports PoE/PoE+
RJ45 LEDs ellow - Speed
Green - Activity
ellow LED Power and PoE
Mounting Hole
PoC (PoE+ over Coax) eBridge1ST
500m max.
eBridge1ST
PoC (PoE+ over Coax)
500m max.
eBridge1ST
PoC (PoE+ over Coax)
500m max.
eBridge1ST
PoC (PoE+ over Coax)
500m max.
PoC (PoE+ over Coax) eBridge1ST
500m max.
eBridge1ST
PoC (PoE+ over Coax)
500m max.
eBridge1ST
PoC (PoE+ over Coax)
500m max.
eBridge1ST
PoC (PoE+ over Coax)
500m max.
eBridge1ST
PoE Camera
.altronix.com
PoE compliant
100m max.
Legend:
Structured Cable
Coax
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m) max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
Legend:
Coax
Structured Cable
- 3 ­
