Pilz P2HZ X1.10P Manual

Two-hand control unit
Up to PL e of EN ISO 13849-1

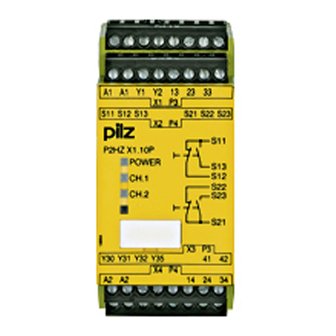

P2HZ X1.10P
Gertebild
Two-hand control unit for press con- ][Bildunterschrift_Zweihand
trollers and safety circuits
Approvals
P2HZ X1.10P
Zulassungen

Block diagram

Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: pilz.gmbh@pilz.de

Unit features

Positive-guided relay outputs:
Gertemerkmale
– 3 safety contacts (N/O), instanta-
neous
– 1 auxiliary contact (N/C), instan-
taneous
2 semiconductor outputs
Connection options for:
– 2 operator elements (buttons)
LED indicator for:
– Switch status channel 1/2
– Supply voltage
Semiconductor outputs signal:
– Switch status channel 1/2
– Supply voltage is present
Plug-in connection terminals (either
spring-loaded terminal or screw
terminal)

Unit description

The two-hand control relay meets the
][Gertebeschreibung_Zweihand
requirements of EN 574 Type IIIC. It
forces the operator to keep his hands
outside the danger zone area during
the hazardous movement. The unit is
suitable for use on controllers for met-
alworking presses as a component for
simultaneous switching.
It can be used in applications with
B l o c k s c h a l t b i l d
Mechanical presses (EN 692)
Hydraulic presses (EN 693)
Safety circuits in accordance with
EN 60204-1

Safety features

The two-hand control relay meets the
][Sicherheitseigenschaften_Zweihand
following safety requirements:
The circuit is redundant with built-in
self-monitoring
The safety function remains effec-
tive in the case of a component fail-
ure
The circuit prevents a further press
stroke in the case of:
– Relay failure
– Contact welding
– Coil defect on a relay
– Open circuit
– Short circuit
