Summary of Contents for Pilz P2HZ X1.10P

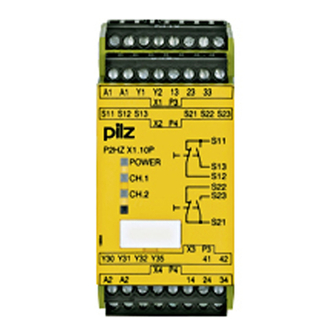

- Page 1 P2HZ X1.10P Safety relays Operating Manual-20817-EN-07...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Operation ..........................Status indicators ........................Faults – Interference ......................Dimensions in mm ......................... Technical details ........................Safety characteristic data ..................... Supplementary data ......................Service life graph ........................Order reference ........................EC declaration of conformity ....................Operating Manual P2HZ X1.10P 20817-EN-07... -
Page 4: Introduction
P2HZ X1.10P Introduction Validity of documentation This documentation is valid for the product P2HZ X1.10P. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
Safety Intended use The two-hand control relay P2HZ X1.10P meets the requirements of EN 574 Type III C. It forces a press operator to keep his hands out of the hazardous area during the dangerous closing movement, so avoiding hand injuries. -
Page 6: Use Of Qualified Personnel
Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120 VDC) are present on the unit, connected control elements and sensors must have a rated insulation voltage of at least 250 V. Unit features Positive-guided relay outputs: – 3 safety contacts (N/O), instantaneous Operating Manual P2HZ X1.10P 20817-EN-07... -
Page 7: Safety Features
The safety function remains effective in the case of a component failure. The circuit prevents a further press stroke in the case of: – Relay failure – Contact welding – Coil defect on a relay – Open circuit – Short circuit Operating Manual P2HZ X1.10P 20817-EN-07... -
Page 8: Block Diagram/Terminal Configuration
*Insulation between the non-marked area and the relay contacts: Basic insulation (over- voltage category III), Protective separation (overvoltage category II) Function Description The two-hand control relay P2HZ X1.10P is activated by simultaneously operating the two operator elements (simultaneity see Technical details [ 17]). -
Page 9: Operating Modes
Use the notch on the rear of the unit to attach it to a DIN rail (35 mm). When installed vertically: Secure the unit by using a fixing element (e.g. retaining bracket or end angle). Operating Manual P2HZ X1.10P 20817-EN-07... -
Page 10: Wiring
The supply voltage must be switched off with the operating energy of the machine. The connection cables between the P2HZ X1.10P and the pushbuttons should not be laid directly next to power cables, otherwise inductive and capacitive interference coupling can result. -
Page 11: Preparing For Operation
Open the safety contacts (switch off output) and start the device again, so that the internal diagnostics can check that the safety contacts open correctly for SIL CL 3/PL e at least 1x per month for SIL CL 2/PL d at least 1x per year Operating Manual P2HZ X1.10P | 11 20817-EN-07... -
Page 12: Status Indicators
Safety contacts of channel 2 are closed. Faults – Interference Contact malfunctions: If the contacts have welded, reactivation will not be possible after the input circuit has opened. Dimensions in mm 75 (2.95") 87 (3.42") (1.77") Operating Manual P2HZ X1.10P | 12 20817-EN-07... -
Page 13: Technical Details
0,1 mA 0,1 mA Max. internal voltage drop Conditional rated short circuit cur- rent 100 A 100 A Lowest operating current 0 mA 0 mA Utilisation category in accordance with EN 60947-1 DC-12 DC-12 Operating Manual P2HZ X1.10P | 13 20817-EN-07... - Page 14 Max. current 1,5 A 1,5 A Utilisation category of auxiliary con- tacts AC15 at 230 V 230 V Max. current DC13 (6 cycles/min) at 24 V 24 V Max. current 1,5 A 1,5 A Operating Manual P2HZ X1.10P | 14 20817-EN-07...
- Page 15 -40 - 85 °C Climatic suitability Humidity 93 % r. h. at 40 °C 93 % r. h. at 40 °C Condensation during operation Not permitted Not permitted EN 60947-5-1, EN 61000-6-2 EN 60947-5-1, EN 61000-6-2 Operating Manual P2HZ X1.10P | 15 20817-EN-07...
- Page 16 Conductor cross section with spring-loaded terminals: Flexible with/without crimp connector – 0,2 - 1,5 mm², 24 - 16 AWG Spring-loaded terminals: Terminal points per connection – Stripping length with spring-loaded terminals – 8 mm Operating Manual P2HZ X1.10P | 16 20817-EN-07...
-
Page 17: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual P2HZ X1.10P | 17 20817-EN-07... -
Page 18: Supplementary Data
To increase the service life, sufficient spark suppression must be provided on all output contacts. With capacitive loads, any power surges that occur must be noted. With DC con- tactors, use flywheel diodes for spark suppression. Operating Manual P2HZ X1.10P | 18 20817-EN-07... -
Page 19: Order Reference
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/support/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual P2HZ X1.10P... - Page 20 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
