Alarm Tab

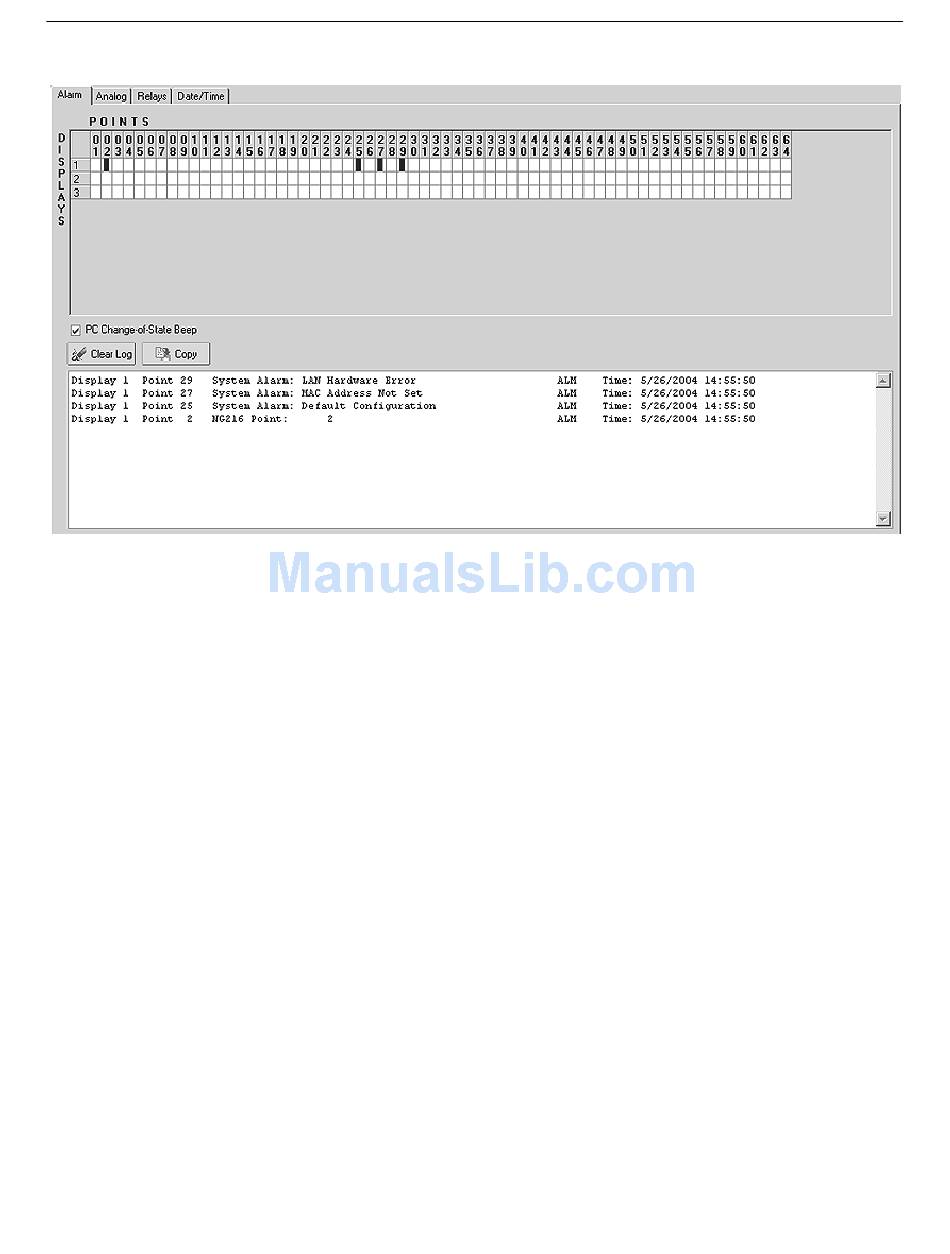

Fig. 6.2. The Alarm tab displaying multiple alarm events
The Alarm Tab displays and logs alarm events. The Alarm Tab consists of two elements: the Alarm Grid and the
Log screen.
The Alarm Grid represents each of the NetGuardian's 16 alarm points as a cell in a 64 x 3 grid. When an alarm
event occurs, a red box will appear in the alarm point's cell. The red box will remain as long as the alarm is
standing.
The alarm event is also listed in the Log screen, which displays the alarm point that was triggered and the date and
time of the alarm event.
If the PC Change-of-State Beep box is checked, T/NG216-Dialup will alert you with a beep sound whenever an
alarm changes state.
When the alarm condition is corrected or clears, the red box in the Alarm Grid will disappear, but the entry in the
Log screen will remain.
To copy Log screen data to the clipboard, click the Copy button.
To clear the Log screen, click the Clear Log button.
The Log screen only logs alarm events during your T/NG216-Dialup session. Alarm events between sessions are
not logged, and alarm events are not saved in memory.
