Editor Analog Alarms Tab

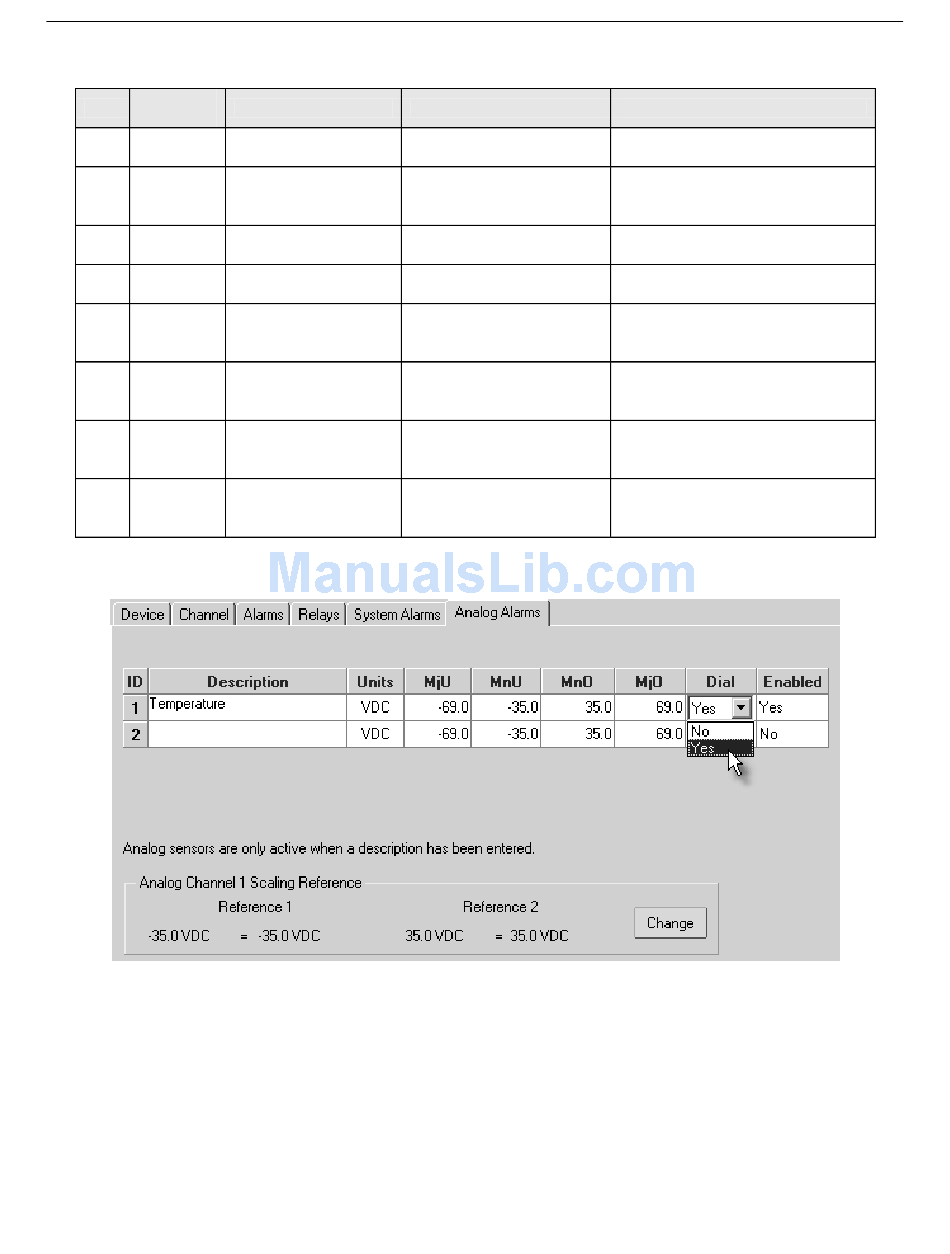

Fig. 5.18. Configure analog alarm descriptions in Analog Alarms tab
Note: The Analog Alarms channel is enabled if you see your description and "Yes" under the Enabled column —
see Figure 5.18.
Each of the NetGuardian 216 analog channels must be individually configured to monitor external analog data.
The Analog to Digital Converter (ADC) supports a range of -90 to +90 VDC. There are four alarm threshold
points in ascending or descending order: major under, minor under, minor over, and major over.
You can choose the values for each of the thresholds on all channels. Activate analog monitoring by entering
descriptions for the channels you are using.
Table 5.A System Alarms
Description
The NetGuardian default
Default Configuration
settings are in use.
NetGuardian has not
DCP Channel is
received DCP poll from
Down
Master in time specified.
MAC Address Not Network connectivity is
Set deactivated.
The IP Address Not
The IP address is incorrect.
Set
An error has occurred that
LAN Hardware Error will deactivate network
connectivity.
The NetGuardian did not
Modem Initialization
get expected response
Error
from modem during init.
The NetGuardian was
Modem Reporting
unable to establish a dial-
Error
up connection.
High network activity is
LAN TX Packet Drop preventing transmission of
data.
Indication
Write configuration with T/NG216-
Dialup.
Verify that setup and Master is
trying to poll unit. Relax call delay
timer value in T/NG216-Dialup.
Contact DPS for possible RMA.
Ensure NetGuardian IP address is
provisioned with T/NG216-Dialup.
Contact DPS for possible RMA.
Set modem port to 1200 baud
using T/NG216-Dialup.
Check phone line and relax timer
values in T/NG216-Dialup.
Verify LAN cable is connected. Set
IP address to 255.255.255.255 if
LAN is not used.
