5.2.1 Connecting via Craft Port

To access the NetGuardian via the craft serial port, follow these steps:
1. Click the Exit button.
2. Select the Settings Menu.
3. Select COM Port — see Figure 5.3.
4. In Communication Mode select Craft Port — see Figure 5.4.
5. Enter your COM Port Number.
6. Press Set.
7. Proceed with configuration.

5.2.2 Connecting via TCP/IP

If you are accessing the NetGuardian via TCP/IP follow these steps:
1. Click the Exit button.
2. Select the Settings Menu — see Figure 5.5.
3. Select COM Port.

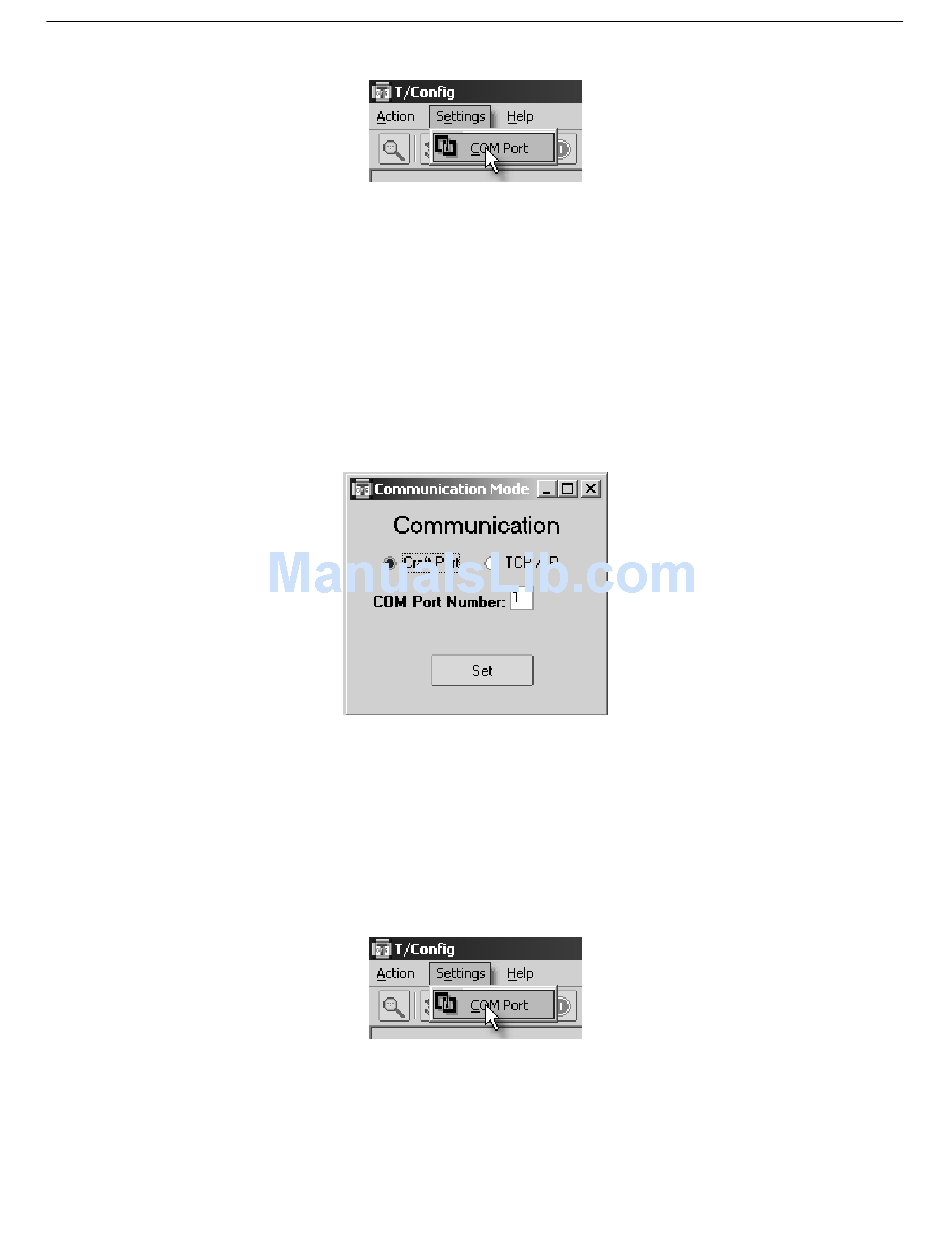

Fig. 5.3. Select a different port or TCP/IP connection
Fig. 5.4. Change your COM Port
Fig. 5.5. Select a different port or TCP/IP connection
