To unlatch a relay, click the Release button.
To momentarily latch a relay, click the Mom button. The relay will latch for 600 msec, then unlatch.
6.4

Real-Time Clock

The NetGuardian 216 features a real-time clock, which will remember the current date and time settings if you
need to reboot. You can configure the clock in the T/NG216-Dialup Turn-up and Test Mode > Date/Time tab
manually or by clicking on the Sync With Local PC button.
To set the real-time clock, follow these steps:
1. Choose the Date/Time tab.
2. Click Sync With Local PC to synchronize the NetGuardian 216 time with your PC date and time settings.
3. To manually update NetGuardian 216 settings, use the drop-down menus to select the Date, Time, and Day of
Week.
4. Click the Update Date/Time button to save the settings.
7

Analyze Mode

Analyze Mode is a powerful troubleshooting tool that enables you to monitor communication traffic between the
NetGuardian 216 and its alarm collection master.
Once you open the Analyze screen, T/NG216-Dialup automatically starts monitoring. Use the drop-down menu to
switch between DCP and Dialup channels.

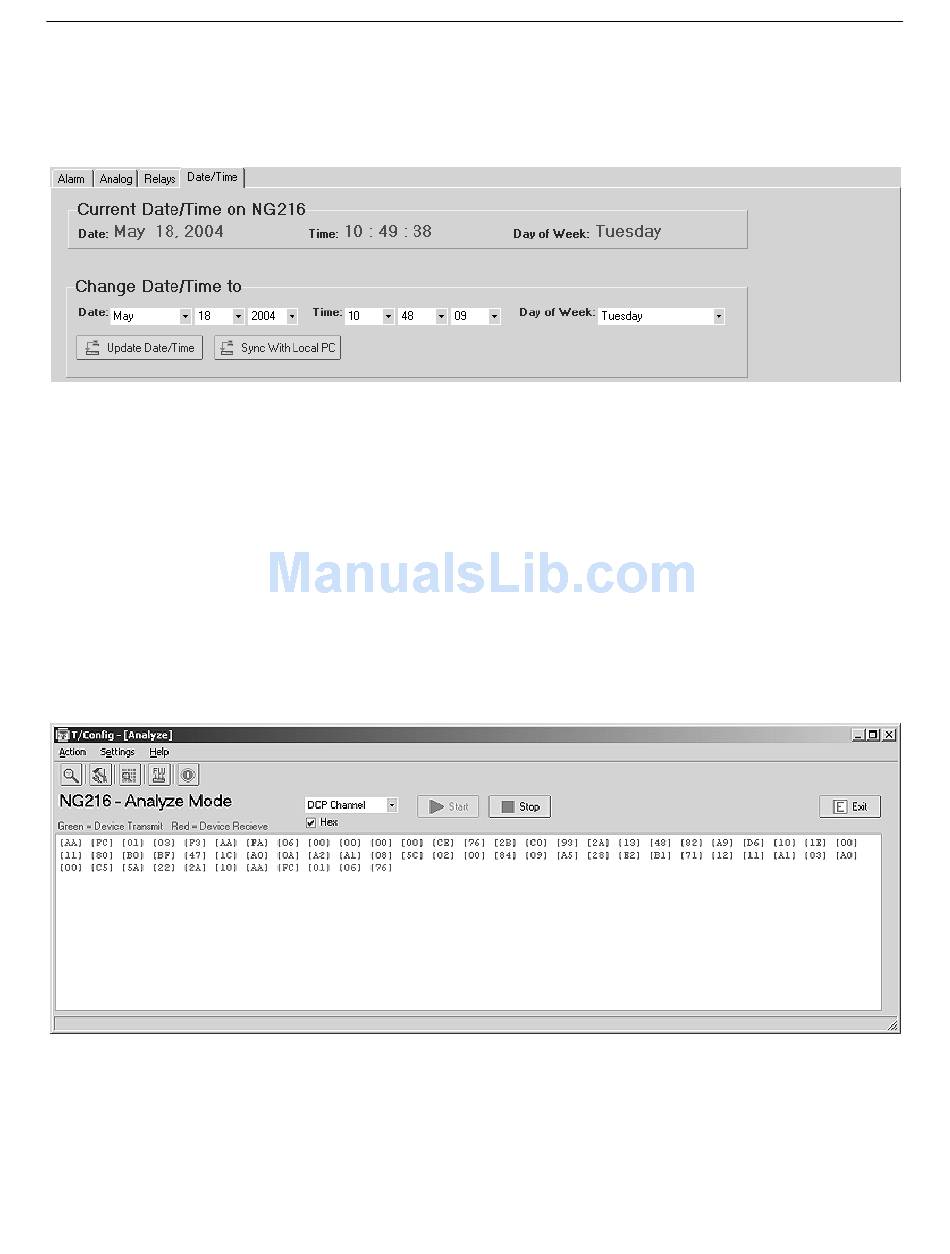

Fig. 6.6. The Real-Time Clock
