Analogs

The Analog tab displays the current state of the voltage on your NetGuardian. To monitor your analogs in the
Turn-up and Test Mode, click on the Analog tab. Before you can monitor your analogs, you will be prompted to
read the analog channel descriptions from the NetGuardian 216 NVRAM.
To activate your channel and view the voltage in scaled units, enter your analog descriptions and threshold range
in the Editor Mode > Analog Alarms tab — see section 5.10 (Editor Analog Alarms Tab) for more information.
When an alarm is triggered, a red box will appear under the appropriate alarm type column: major under (MjU),
minor under (MnU), minor over (MnO), and major over (MjO). See Section 10 (Reference Information) Table A3
for channel locations.
6.3

Relays

The Relays tab displays the current state of the NetGuardian's two control relays. From this tab you may latch and
unlatch relays or you can latch them momentarily.
To latch a relay, click the Latch button. The relay's green display box will turn red and read "Latched." The Latch
button will also change to a Release button.

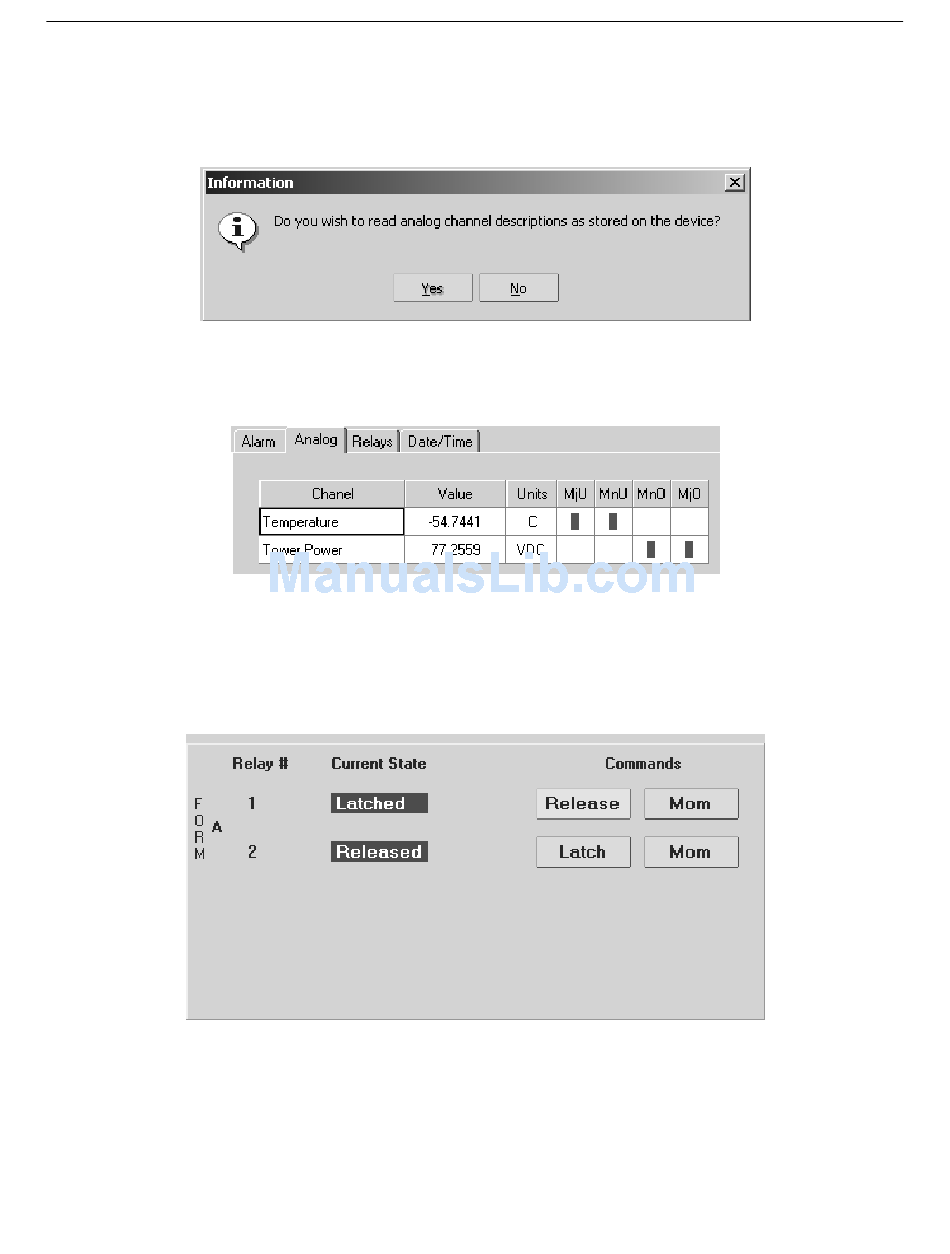

Fig. 6.3. Download analog descriptions to monitor analogs
Fig. 6.4. Monitor Analog Values
Fig. 6.5. The Relays Tab
