4.3
NetGuardian 216 Connections
Craft Configuration Port
4.4
Power Connection
Fig. 4.3. Power screw lug barrier plug (optional 9 Volt power input option shown)
The NetGuardian's power connections are convenient screw lug barrier plugs. To connect the NetGuardian to a
power source, follow these steps:
NOTE:
Do not apply –48V Power to the NetGuardian 216 Dialup until all power Connections in Step 1
through Step 8 have been completed.
NOTE:
Use proper lug terminations on all power and frame ground connections to the NetGuardian 216
Dialup power input terminal strips.
1. Make sure the fuse from the front panel of the NetGuardian is removed.
2. Get the screw lug barrier plug.
Front Panel LEDs
Modem Serial Port
Power Feed

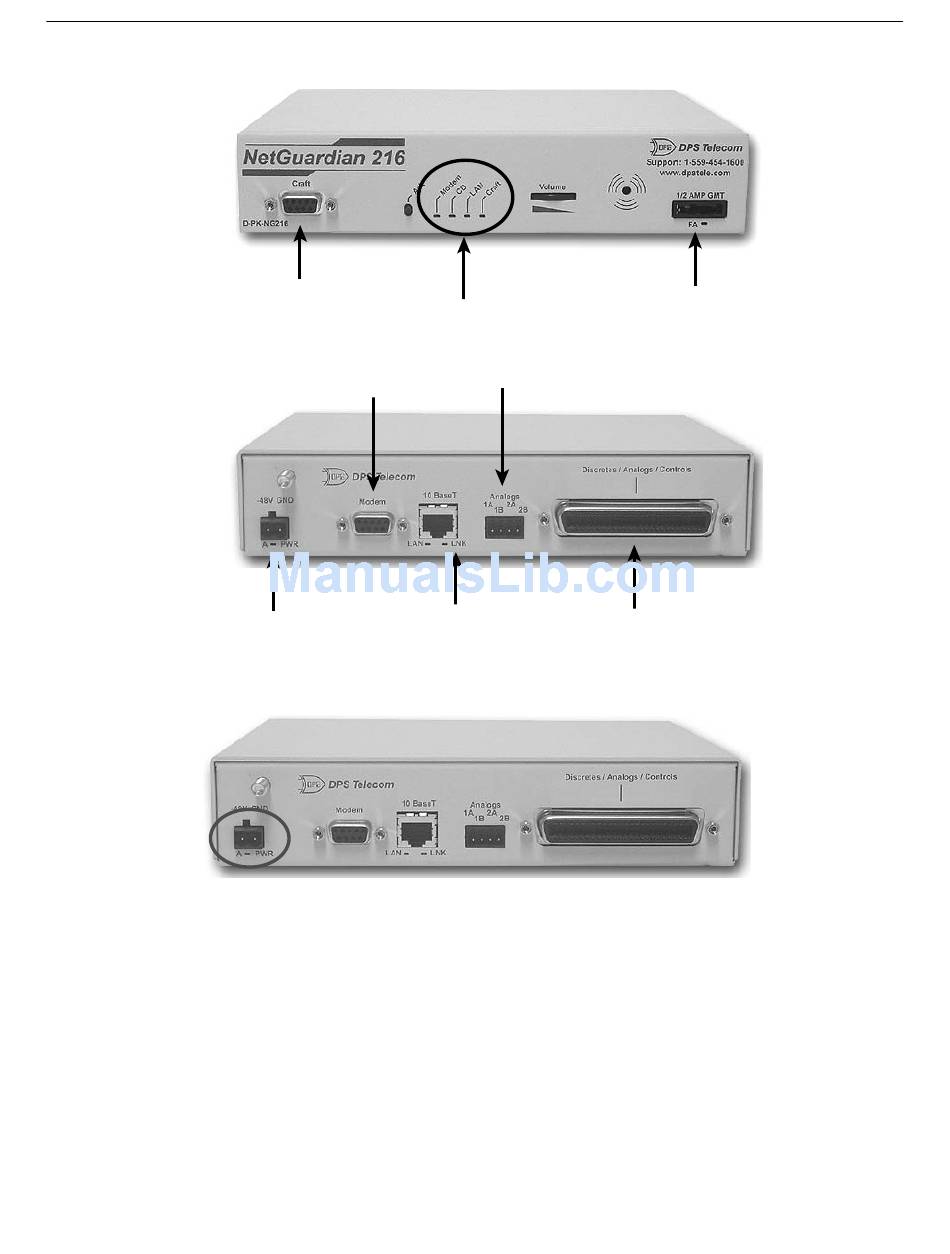

Fig. 4.2. NetGuardian connection panels
½ Amp GMT Fuse
Analogs
LAN
Discrete Alarm Controls
