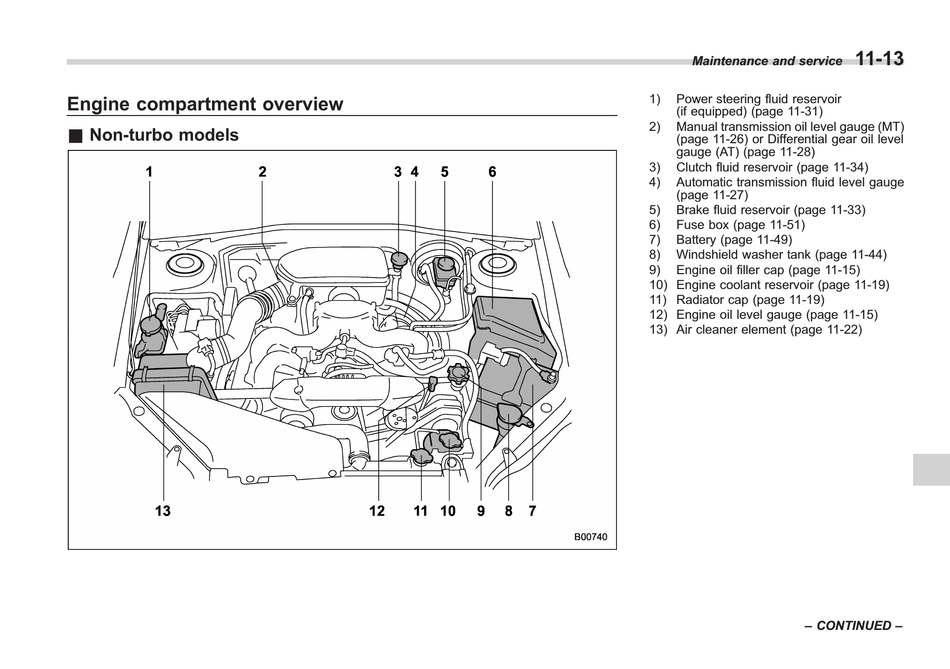

Engine compartment overview

& Non-turbo models
Maintenance and service
1) Power steering fluid reservoir
(if equipped) (page 11-31)
2) Manual transmission oil level gauge (MT)
(page 11-26) or Differential gear oil level
gauge (AT) (page 11-28)
3) Clutch fluid reservoir (page 11-34)
4) Automatic transmission fluid level gauge
(page 11-27)
5) Brake fluid reservoir (page 11-33)
6)

Fuse box (page 11-51)

7) Battery (page 11-49)
8) Windshield washer tank (page 11-44)
9) Engine oil filler cap (page 11-15)
10) Engine coolant reservoir (page 11-19)
11) Radiator cap (page 11-19)
12) Engine oil level gauge (page 11-15)
13) Air cleaner element (page 11-22)
– CONTINUED –
11-13
