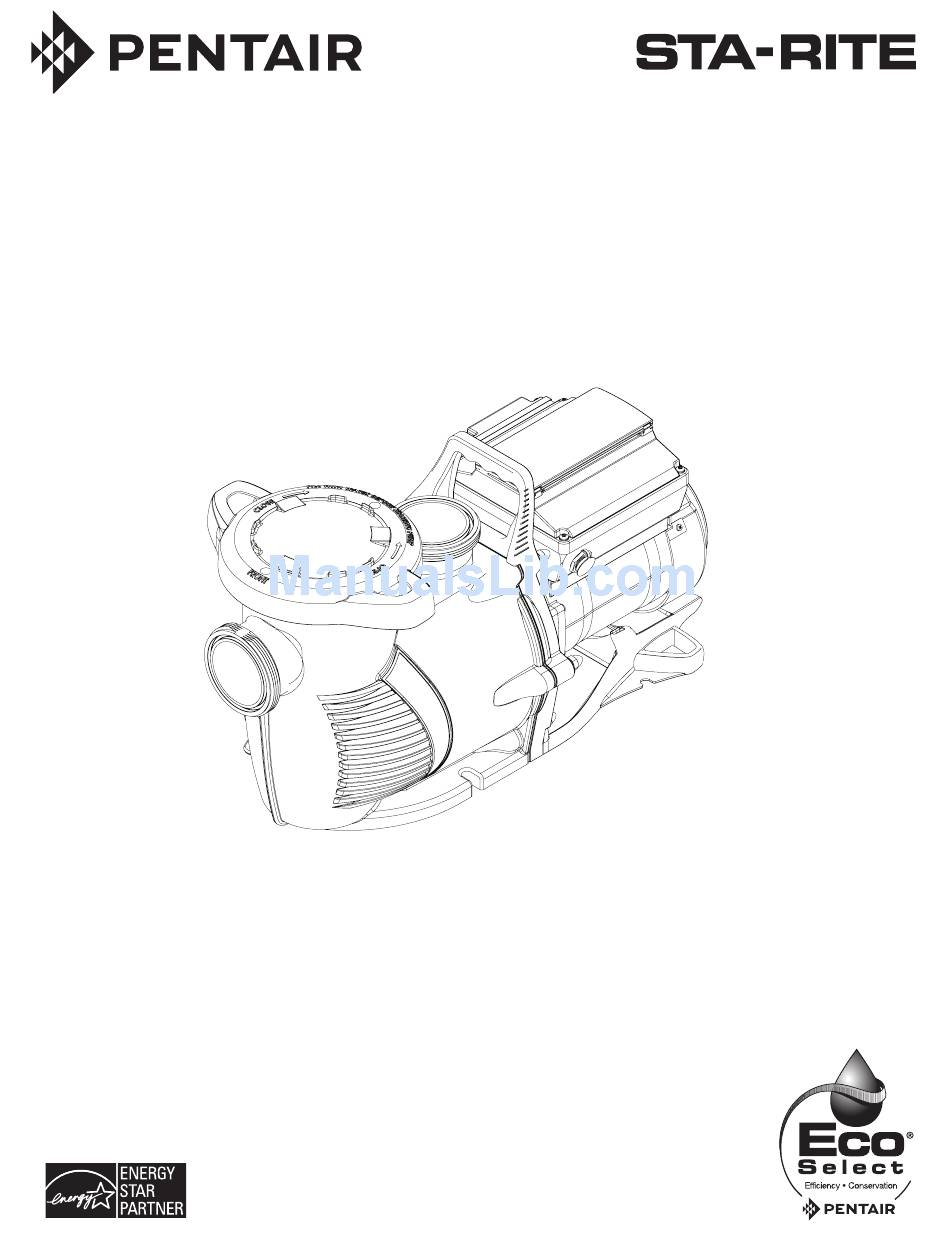

- Page 1 INTELLIFLO ® INTELLIPRO ® VARIABLE SPEED ULTRA ENERGY EFFICIENT PUMP INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
- Page 2 CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Water Pool and Spa replacement parts, and pool products, please contact: Customer Service and Technical Support, USA Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times)
- Page 3 IntelliFloXF ® and IntelliProXF ® Variable Speed Pumps. Consult Pentair • The pump is not submersible. with any questions regarding this equipment. • The pump is capable of high flow rates; use caution when installing Attention Installer: This guide contains important information about the and programming to limit pumps performance potential with old or installation, operation and safe use of this product.
-
Page 4: Save These Instructions

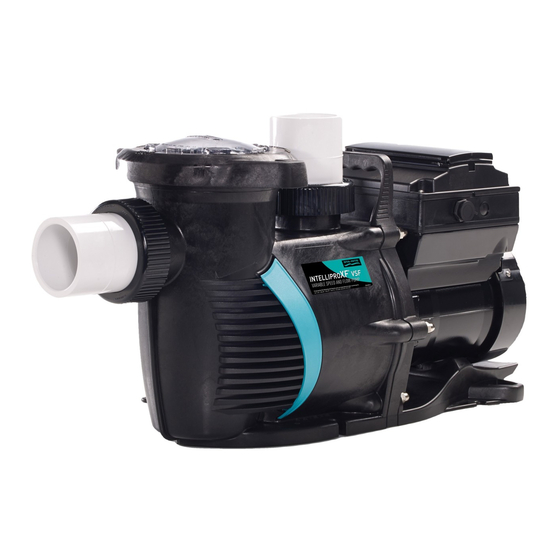

(D) Disabled submerged outlets, or (E) Suction outlets shall be reconfigured into return inlets. Warnings and safety instructions for Pentair Aquatic Systems For Installation of Electrical Controls at Equipment Pad (ON/OFF pumps and other related products are available at: Switches, Timers and Automation Load Center) http://www.pentairpool.com/pool-owner/safety-warnings/ or call... - Page 5 PUMP OVERVIEW The IntelliFloXF and IntelliProXF Variable Speed Pump ® ® Communication port to Operator Control can be programmed to run at specific speeds and time connect to automation Panel intervals for maximum operating efficiency and energy system via RS-485 cable (not shown).
- Page 6 INSTALLATION Only a qualified plumbing professional should install the IntelliFloXF and IntelliProXF Variable Speed Pumps. Refer ® ® to “Pump Warning And Safety Instructions” on pages ii - iv for additional installation and safety information. Location Be sure the pump location meets the following...
- Page 7 Electrical Wiring Installation ® ® RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. This IntelliFloXF or IntelliProXF Variable Speed Pump must be installed by a licensed or certified electrician or a qualified service professional in accordance with the National Electrical Code and all applicable local codes and ordinances. Improper installation will create an electrical hazard which could result in death or serious injury to users, installers, or others due to electrical shock, and may also cause damage to property.
-
Page 8: Operating The Pump
OPERATING THE PUMP NOTE: Speed 1 is the default filtration speed. When setting up the IntelliFloXF Variable Speed Pump, the user must set the ® pump’s internal clock and establish an operation schedule by following the steps in this manual. Please refer to user’s guide sections: ‘Set Time’... - Page 9 Using the Operator Control Panel Use the operator control panel to start and stop the IntelliFloXF Variable Speed Pump, program, set, and change ® speeds (RPM), and access pump features and settings. 12:15 Controls and LEDs on Key Pad 750 RPM Speed 1: Press to select Speed 1 (750 RPM).
-
Page 10: Pump Operating Modes
Pump Operating Modes Starting the Pump The pumps can be programmed in three different modes: Manual, Schedule, and Egg Timer. 1. Be sure the IntelliFloXF Variable Speed Pump is ® Speeds 1-4 can be programmed in all three modes. powered on and the green power LED is on. - Page 11 Operator Control Panel: Pump Menu Guide MENU Press MENU button to access menus Pump Address (1-16) Default: ADDRESS 1 SETTINGS (pages 8-10) Set Time (hr:mm) Default: 12:00 AM Set AM/PM AM/PM 24 hr. Temperature Unit Fahrenheit - Default: F° C° Celsius Screen Contrast (1-5) Default 3 Language...
- Page 12 To change the time from a 12 hour clock (AM/PM) to a Pump Address 24 hour clock: The default pump address is #1 and only needs to be 1. Press Menu. changed when there is more than one IntelliFloXF ® 2. Press Select to select “Settings”. IntelliProXF ®...
- Page 13 • Password protection cannot be turned back on with maximum running speed of the pump. Start/Stop while running in manual mode. When the IntelliFloXF Variable Speed Pump is set to ® • Pressing Start/Stop when the pump is off will return Priming “Enabled”, the pump will speed up to and run at...
- Page 14 PASSWORD Disabled/Enabled - Default: Disabled 7. The factory default time is 10 minutes. This means Password Time Out (1 min. - 6 hours) Default:10 minutes the IntelliFloXF Variable Speed Pump will go into ® Enter Password (xxxx) Default: 1234 Password Protection mode 10 minutes after the last control panel key is pressed.
- Page 15 MENU Pump Menu: Speeds 1-8 SPEED 1-8 Set Speeds in Manual or Egg Timer Mode Pump Operating Modes (Speeds 1-4 Only) The IntelliFloXF and IntelliProXF Variable Speed ® ® Pumps can be programmed in three different modes: 1. Press Menu.
- Page 16 12. Press Enter to save the new stop time setting. 3. Use Up or Down arrow to scroll to “Ext. Ctrl.”. 13. Press Start/Stop. 5. Press Select. “Program 1” is displayed. The IntelliFloXF Variable Speed Pump will prime and ® 6. Press Select to change the speed. The “RPM”...
- Page 17 Quick Clean 6. Then press Select again to choose “Timeout Duration”. NOTE: Quick Clean is the only high-speed override 7. Press Select to change the time. The cursor will feature of the IntelliFloXF and IntelliProXF ® ® highlight the minutes column.
- Page 18 PRIMING Priming Features Default: ENABLED DISABLED/ENABLED Allows IntelliFloXF Variable Speed Pump to automatically detect if pump if is primed ® for startup. The pump will ramp up to 1800 RPM and pause for three (3) seconds - if there is enough water in the basket, the pump will go out of priming mode and run the commanded speed.
- Page 19 MENU Pump Menu: Priming PRIMING Disabling Priming with an Automation System When IntelliFloXF Variable Speed Pump To disable priming with an automation system: ® is connected to an automation control system, 1. Disable the priming feature on the automation control...
- Page 20 To Set Anti Freeze Speed and Pump Temperature: motor. This feature allows you to set a speed (450 RPM 1. With Anti Freeze displayed on the screen, press - 3450 RPM) that runs when the IntelliFloXF Variable ® Speed Pump goes into anti freeze mode. The tempera- the Down arrow - “Set Speed”...
- Page 21 Wiring Terminal Descriptions for IntelliComm Communication Center Communication Center Use the RS-485 communications cable to remotely Terminal Terminal Max. Phase Voltage Frequency control the IntelliFloXF Variable Speed Pump from an ® Number Name Current Type IntelliComm communication center. The IntelliComm Power 100 - 240...
- Page 22 To connect the IntelliFloXF Variable Speed Pump ® communication cable to EasyTouch or IntelliTouch ® ® Control System load center: IntelliTouch COM port (J7/8): Connect the GREEN 1. Switch the main power off to the load center. (#2) and YELLOW (#3) wires to the COM port (J20) 2.
- Page 23 Connecting the Pump to a SunTouch Control System ® The IntelliFloXF and IntelliProXF Variable Speed ® ® Switch OFF main system power to the SunTouch Pumps can be controlled by a SunTouch control system system power center before making any via the RS-485 communication cable.
- Page 24 Pump Strainer Basket Winterizing The strainer basket (or ‘strainer pot’), is located in front To protect the pump electronics from freeze damage, of the IntelliFloXF Variable Speed Pump housing. The the pump will switch on to generate internal heat as ®...
- Page 25 SERVICING Always disconnect power to the IntelliFloXF Variable Speed Pump at the circuit breaker and disconnect the communication cable ® before servicing the pump. Failure to do so could result in death or serious injury to service people, users or others due to electric shock.
-
Page 26: Drive Assembly Removal And Installation
100 in-lbs (maximum). Do not overtighten missing gasket. the nuts. 9. Reinstall the drive onto the top of the motor. 10. Fill the IntelliFloXF Variable Speed Pump with ® water. 11. Reinstall the pump lid and locking ring; see “Cleaning the Pump Strainer Basket”... - Page 27 Drive Assembly Removal and Installation Alerts and Warnings The IntelliFloXF Variable Speed Pump displays all ® Before installing this product, read and follow all alarms and warnings on the control panel display. When warning notices and instructions on pages ii - iii.
-
Page 28: Troubleshooting
TROUBLESHOOTING Always disconnect power to the IntelliFloXF Variable Speed Pump at the circuit breaker and disconnect the communication cable ® before servicing the pump. Failure to do so could result in death or serious injury to serviceman, pool users or others due to electric shock. - Page 29 Problem Possible Cause Corrective Action Inadequate circulation. Filter or pump basket dirty. Check trap basket; if plugged, turn pump off and clean basket. (For alert display messages, refer to Alerts Check and clean pool filter. and Warning on page 23). Suction/discharge piping is too small.
-
Page 30: Replacement Parts
REPLACEMENT PARTS IntelliFloXF and IntelliProXF Variable Speed Pump Replacement Parts ® ® Item Item Description IntelliFloXF IntelliProXF Description IntelliFloXF IntelliProXF Wet End Assembly 400000 401000 Diffuser Screw 353323 Union Kit Without Tap 410020 Diffuser 400010 Power End Assy. w/ Drive 400605... -
Page 31: Pump Dimensions
Pump Performance Curves Max. Speed @3450 rpm Speed 4 @3110 rpm Speed 3 @2350 rpm Speed 2 @1560 rpm Speed 1 @750 rpm 100 110 120 130 140 150 160 170 180 190 200 210 220 230 Volumetric Flow Rate in GPM Pump Dimensions [633 mm] 25 in... - Page 32 Operator Control Panel: Pump Menu Quick Reference Guide 12:15 750 RPM MENU Press MENU button to access menus T 0.00 150 WATTS Running Speed 1 Pump Address (1-16) Default: ADDRESS 1 SETTINGS Speed Speed Speed Speed (pages 8-10) Set Time (hr:mm) Default: 12:00 AM AM/PM Set AM/PM...
- Page 33 NOTES...
- Page 34 NOTES...
- Page 35 NOTES...
- Page 36 United States and/ or other countries. Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and Pentair Water Pool and Spa, Inc.
