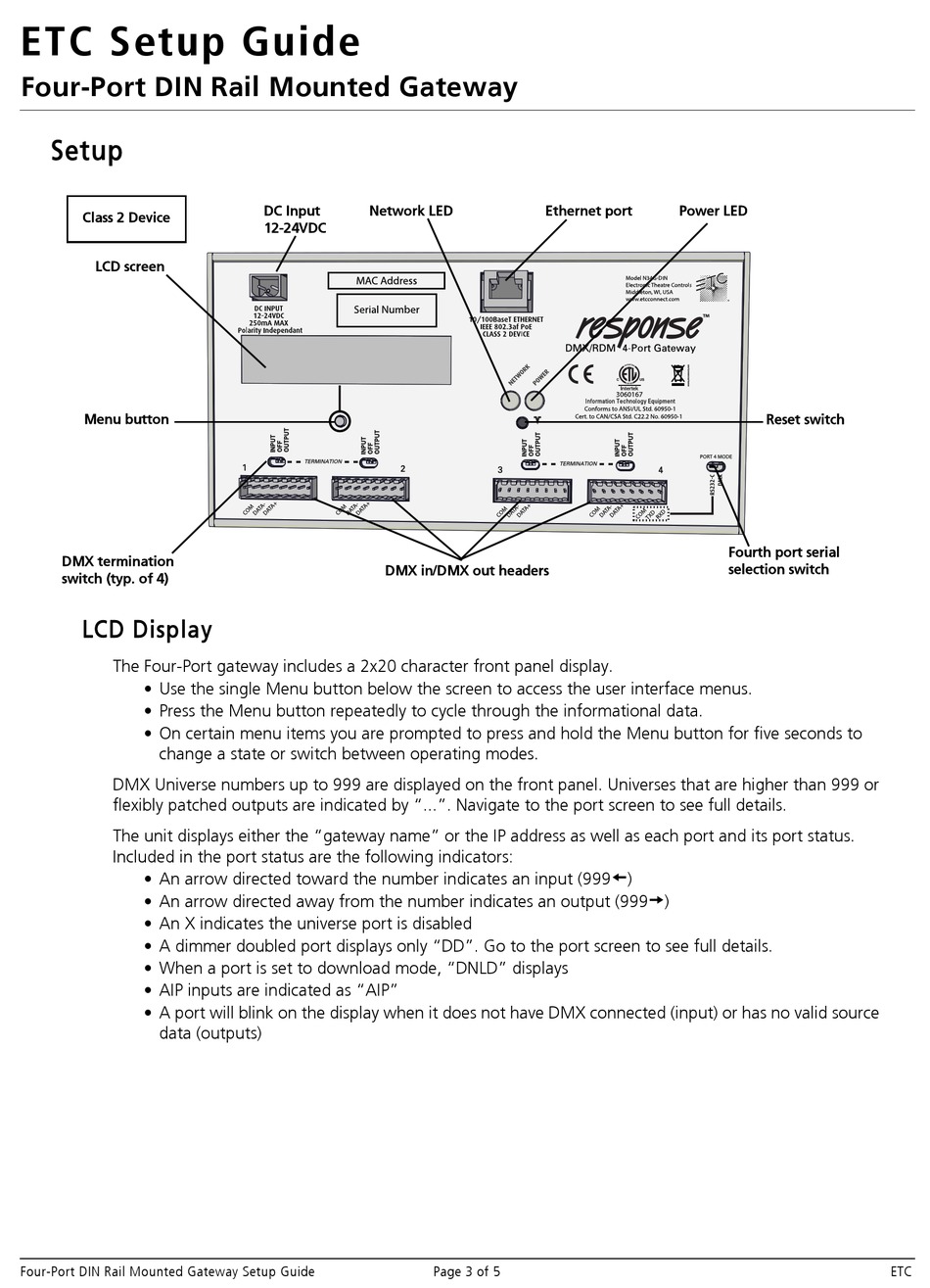

ETC Setup Guide
Four-Port DIN Rail Mounted Gateway
Setup
Class 2 Device
LCD screen
Menu button
DMX termination
switch (typ. of 4)

LCD Display

The Four-Port gateway includes a 2x20 character front panel display.
• Use the single Menu button below the screen to access the user interface menus.
• Press the Menu button repeatedly to cycle through the informational data.
• On certain menu items you are prompted to press and hold the Menu button for five seconds to
change a state or switch between operating modes.
DMX Universe numbers up to 999 are displayed on the front panel. Universes that are higher than 999 or
flexibly patched outputs are indicated by "...". Navigate to the port screen to see full details.
The unit displays either the "gateway name" or the IP address as well as each port and its port status.
Included in the port status are the following indicators:
• An arrow directed toward the number indicates an input (999
• An arrow directed away from the number indicates an output (999
• An X indicates the universe port is disabled
• A dimmer doubled port displays only "DD". Go to the port screen to see full details.
• When a port is set to download mode, "DNLD" displays
• AIP inputs are indicated as "AIP"
• A port will blink on the display when it does not have DMX connected (input) or has no valid source
data (outputs)
Four-Port DIN Rail Mounted Gateway Setup Guide
DC Input Network LED
12-24VDC
DMX in/DMX out headers
Page 3 of 5
Ethernet port Power LED

)

)
Reset switch
Fourth port serial
selection switch
