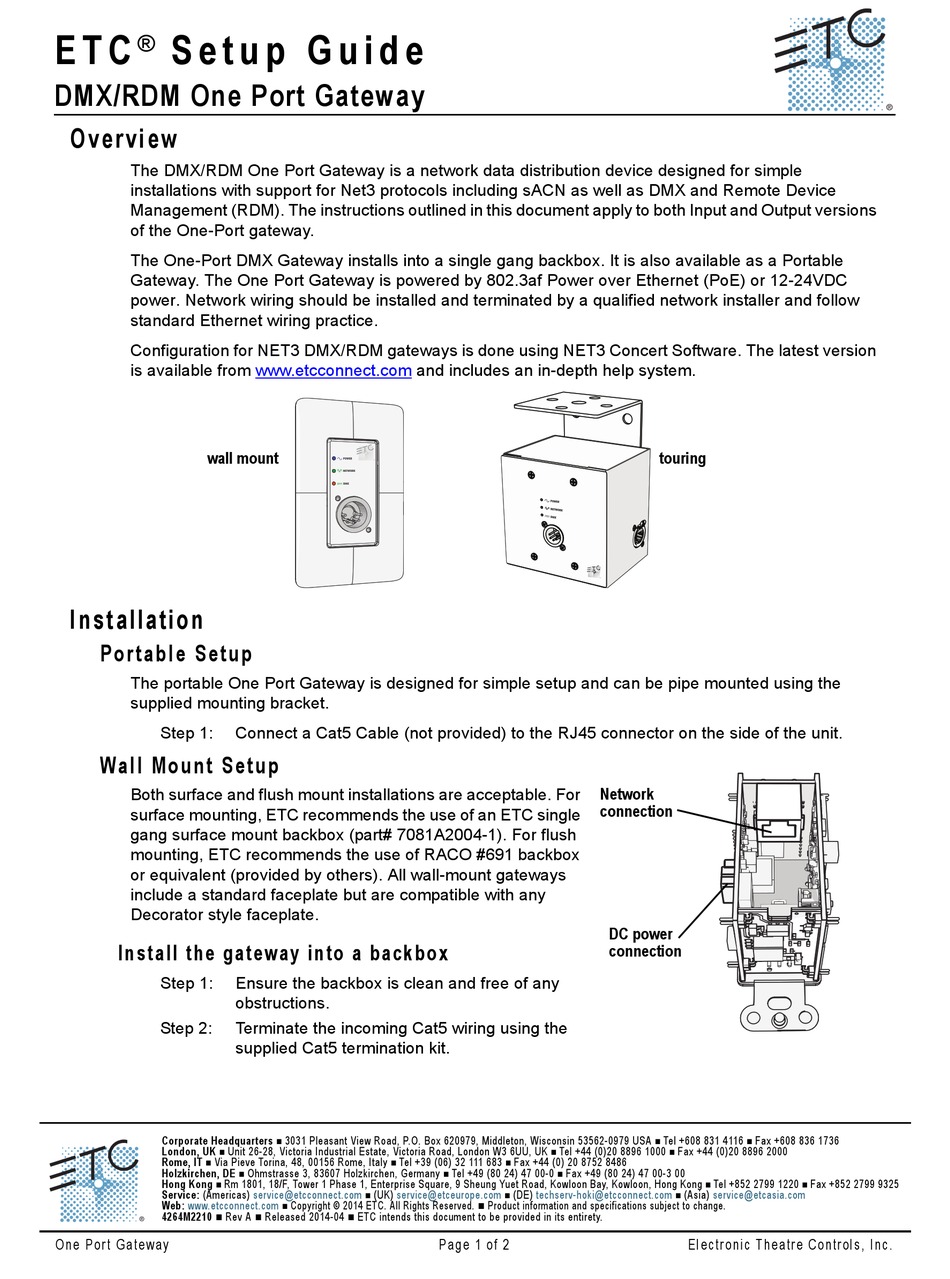

ETC DMX/RDM One Port Gateway Setup Manual

E T C S e t u p G u i d e
®
DMX/RDM One Port Gateway
O v e r v i e w
The DMX/RDM One Port Gateway is a network data distribution device designed for simple
installations with support for Net3 protocols including sACN as well as DMX and Remote Device
Management (RDM). The instructions outlined in this document apply to both Input and Output versions
of the One-Port gateway.
The One-Port DMX Gateway installs into a single gang backbox. It is also available as a Portable
Gateway. The One Port Gateway is powered by 802.3af Power over Ethernet (PoE) or 12-24VDC
power. Network wiring should be installed and terminated by a qualified network installer and follow
standard Ethernet wiring practice.
Configuration for NET3 DMX/RDM gateways is done using NET3 Concert Software. The latest version
is available from
wall mount

Installation

P o r t a b l e S e t u p
The portable One Port Gateway is designed for simple setup and can be pipe mounted using the
supplied mounting bracket.
Step 1:
Wa l l M o u n t S e t u p
Both surface and flush mount installations are acceptable. For
surface mounting, ETC recommends the use of an ETC single
gang surface mount backbox (part# 7081A2004-1). For flush
mounting, ETC recommends the use of RACO #691 backbox
or equivalent (provided by others). All wall-mount gateways
include a standard faceplate but are compatible with any
Decorator style faceplate.
Install the gateway into a backbox
Step 1:
Step 2:
Corporate Headquarters
London, UK Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK

Rome, IT Via Pieve Torina, 48, 00156 Rome, Italy

Holzkirchen, DE
Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong

Service: (Americas)
Web: www.etcconnect.com
4264M2210 Rev A

One Po r t Ga te way
www.etcconnect.com
Connect a Cat5 Cable (not provided) to the RJ45 connector on the side of the unit.
Ensure the backbox is clean and free of any
obstructions.
Terminate the incoming Cat5 wiring using the
supplied Cat5 termination kit.
3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA

Tel +39 (06) 32 111 683

Ohmstrasse 3, 83607 Holzkirchen, Germany

service@etcconnect.com (UK) service@etceurope.com

Copyright © 2014 ETC. All Rights Reserved.

Released 2014-04 ETC intends this document to be provided in its entirety.
 
and includes an in-depth help system.
Tel +44 (0)20 8896 1000

Fax +44 (0) 20 8752 8486

Tel +49 (80 24) 47 00-0 Fax +49 (80 24) 47 00-3 00
 
(DE) techserv-hoki@etcconnect.com

Product information and specifications subject to change.

Pag e 1 of 2
touring
Network
connection
DC power
connection
Tel +608 831 4116 Fax +608 836 1736
 
Fax +44 (0)20 8896 2000

Tel +852 2799 1220

(Asia) service@etcasia.com

El ect r on ic T he at r e Con t ro ls , I nc .
