ETC Response Analog IO Gateway Setup Manual

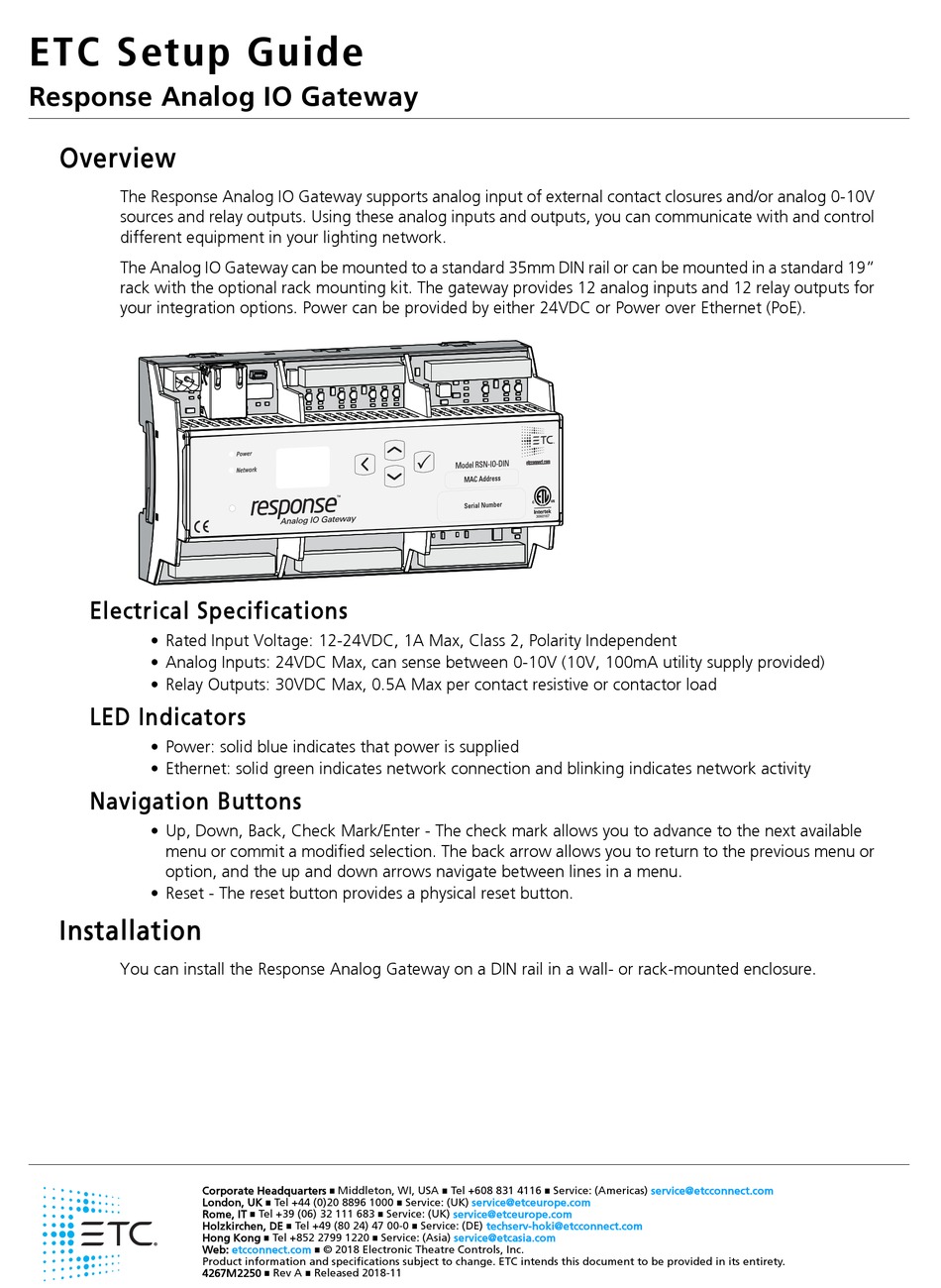

ETC Setup Guide
Response Analog IO Gateway

Overview

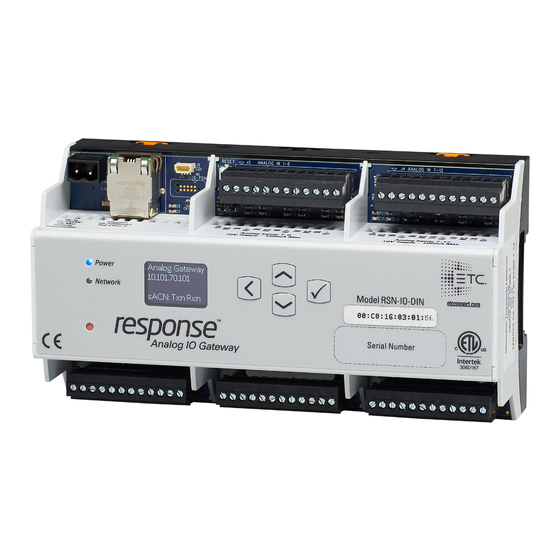

The Response Analog IO Gateway supports analog input of external contact closures and/or analog 0-10V
sources and relay outputs. Using these analog inputs and outputs, you can communicate with and control
different equipment in your lighting network.
The Analog IO Gateway can be mounted to a standard 35mm DIN rail or can be mounted in a standard 19"
rack with the optional rack mounting kit. The gateway provides 12 analog inputs and 12 relay outputs for
your integration options. Power can be provided by either 24VDC or Power over Ethernet (PoE).

Electrical Specifications

• Rated Input Voltage: 12-24VDC, 1A Max, Class 2, Polarity Independent
• Analog Inputs: 24VDC Max, can sense between 0-10V (10V, 100mA utility supply provided)
• Relay Outputs: 30VDC Max, 0.5A Max per contact resistive or contactor load

LED Indicators

• Power: solid blue indicates that power is supplied
• Ethernet: solid green indicates network connection and blinking indicates network activity

Navigation Buttons

• Up, Down, Back, Check Mark/Enter - The check mark allows you to advance to the next available
menu or commit a modified selection. The back arrow allows you to return to the previous menu or
option, and the up and down arrows navigate between lines in a menu.
• Reset - The reset button provides a physical reset button.

Installation

You can install the Response Analog Gateway on a DIN rail in a wall- or rack-mounted enclosure.
