ETC Response MIDI Gateway Setup Manual

ETC Setup Guide
Response MIDI Gateway

Overview

The Response MIDI Gateway supports sending and receiving MIDI (Musical Instrument Digital Interface)
control signals. MIDI enables various types of equipment to communicate, control and synchronize with
each other through the transmission of digital data. For MIDI output the signal is generated by the
controlling device and transmitted to the MIDI Gateway over USB or an Ethernet network to be output
locally at the gateway. The gateway itself does not generate MIDI messages.

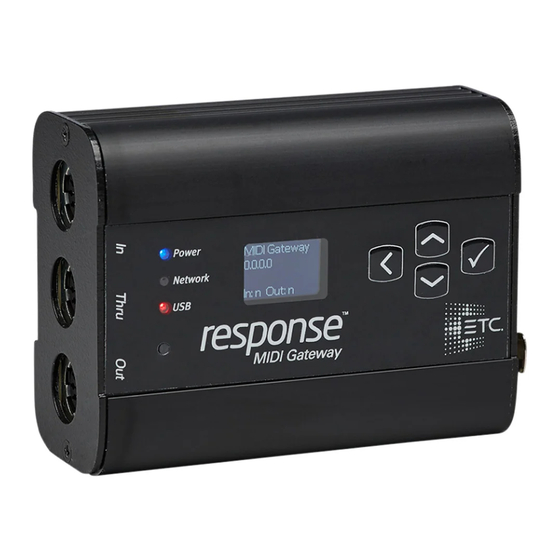

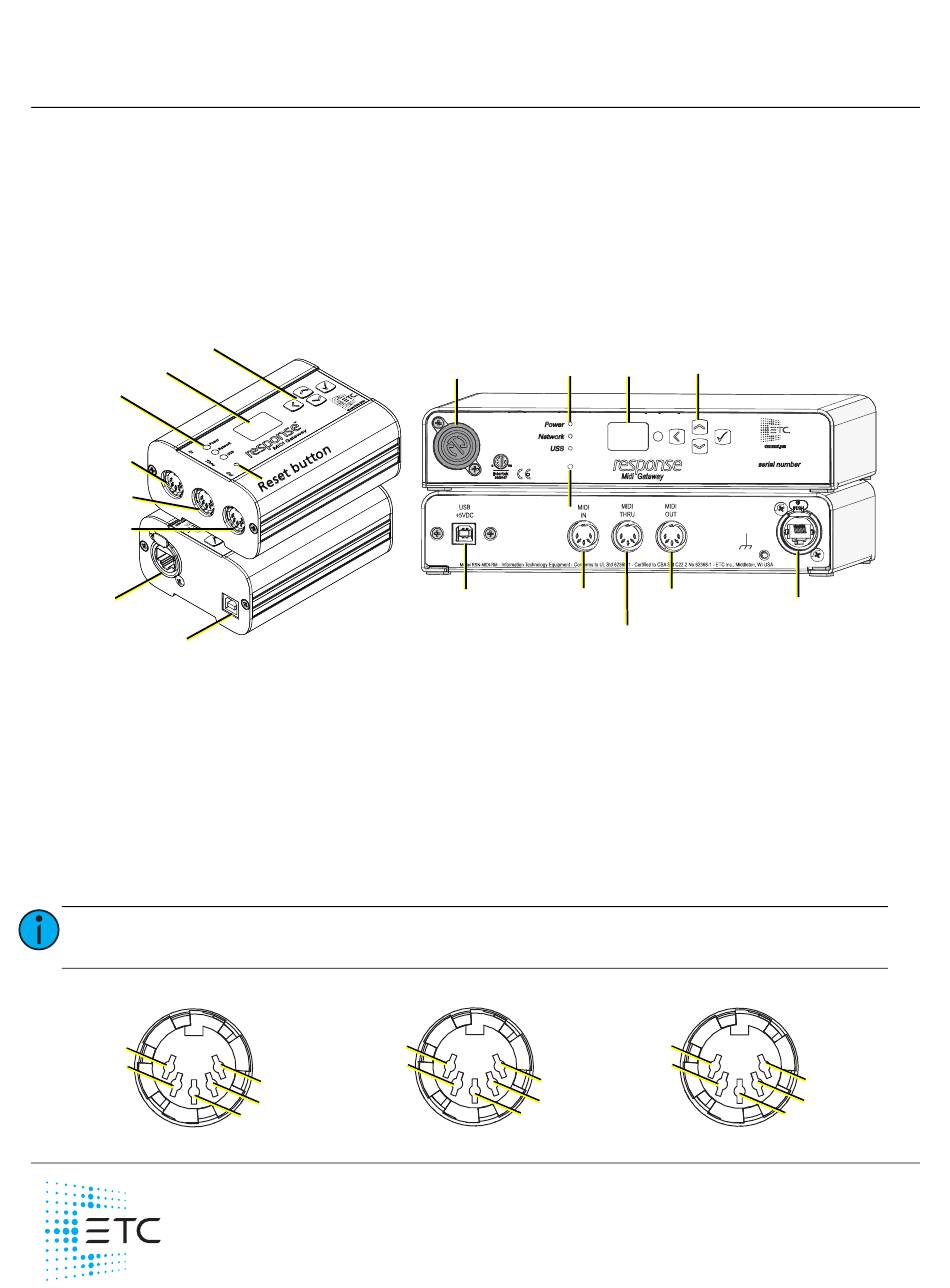

Backpack version
Up, Down, Back,
Enter buttons
OLED
screen
LED
indicators
MIDI In
MIDI Thru
MIDI Out
Ethernet
port
USB port

MIDI Connections

The following connections are available:
• MIDI In - allows communication from a MIDI device to a Net3 controller, ACN controller or USB MIDI
receiver through the gateway. The input accepts MIDI notes, MIDI Show Control packets and MIDI
Time Code
• MIDI Thru - allows communication between multiple MIDI devices by passing the input through the
gateway and back out to another MIDI device
• MIDI Out - allows communication with a MIDI device from a Net3, ACN or USB control source through
the gateway. Outputs MIDI notes, MIDI Show Control packets and/or MIDI Time Code (MIDI Time
Code generated by a third-party device conneted via USB)
Note:
MIDI In
N/C
3
1
In-
5
4
2
