ETC Setup Guide
Four-Port DIN Rail Mounted Gateway
Installation and Removal
Installing the DIN Rail Enclosure
The DIN rail mounted Four-Port gateway kit consists of the
gateway, a Cat5 termination kit, and four DMX termination
kits. Additional information on these termination kits ships
with the kit, or can be downloaded from ETC's website.
Using DMX over Cat5 cable will require the use of additional
Cat5 termination kits which are not included. Contact ETC and
request a qty. of 4, part# 4100A1013.
To install the gateway:
1: Ensure the section of DIN rail to be used is mounted
securely.

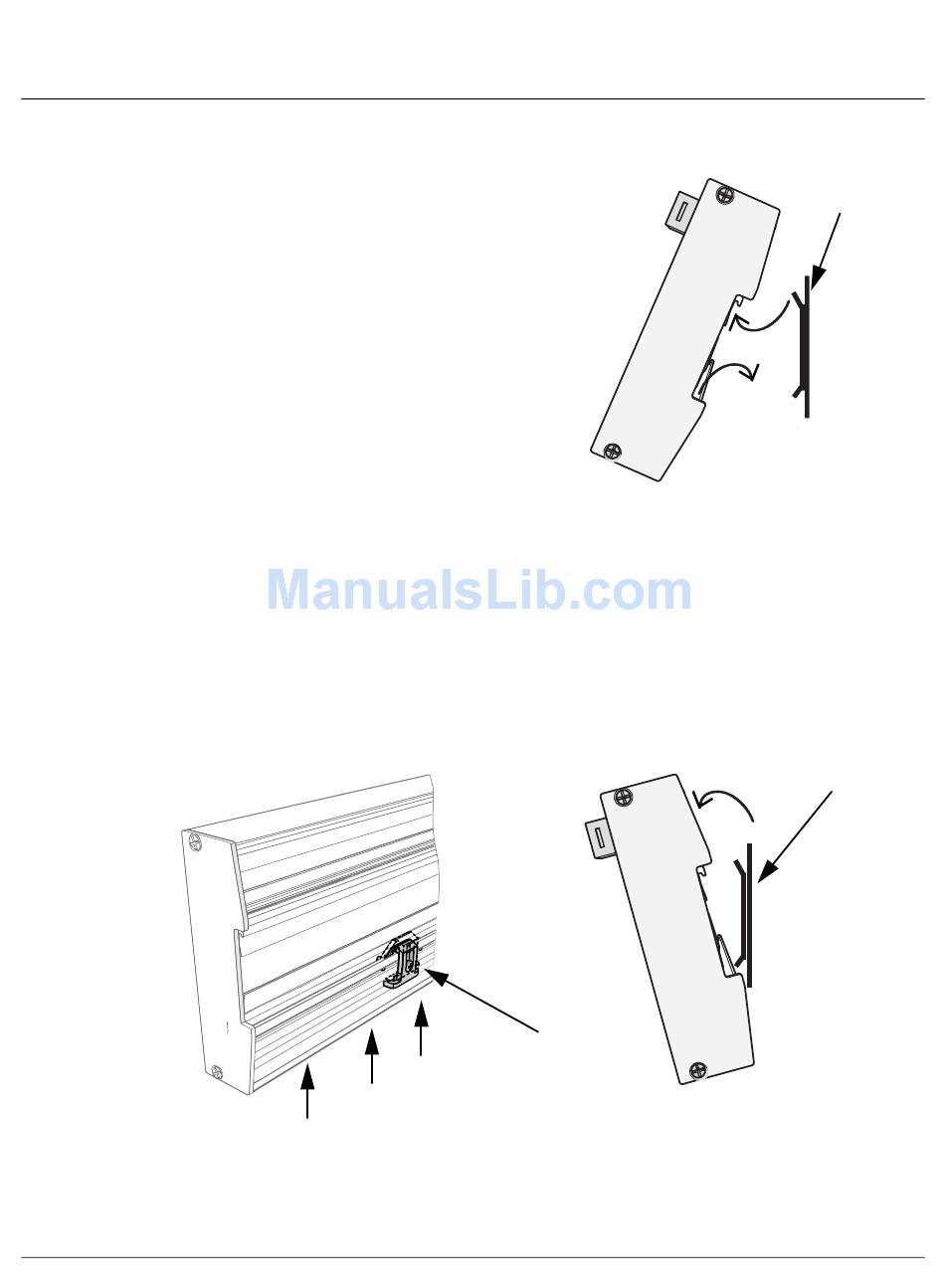

2: Hook the top of the gateway over the top of the DIN rail
as shown.
3: Pivot the gateway downward until it is seated securely on the DIN rail.
4: Step 4: Terminate the bare end of the Cat5 wire using the provided termination kit and plug it into
the connector on the front of the gateway.
5: Terminate the DMX wires using the provided termination kits and plug them into the DMX
connectors on the front of the gateway.
To remove the gateway from the DIN rail:
1: Use both thumbs to push up firmly on the bottom of the mounted gateway. This will disengage the
tension clips on the rear of the gateway housing.
2: Rock the top of the gateway forward and off of the DIN rail.
Four-Port DIN Rail Mounted Gateway Setup Guide
Step 1
Page 2 of 5
Tension clip
DIN rail
hook
pivot
DIN rail
Step 2
