ETC Response SMPTE Setup Manual

ETC Setup Guide

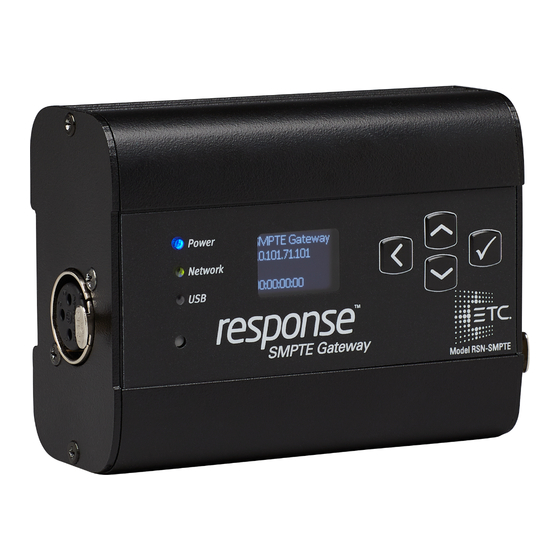

Response SMPTE Gateway

Overview

The Response SMPTE Gateway allows you to receive a SMPTE control signal from an external source and
then pass it through to your lighting network or console, providing a simple way to synchronize other
systems with your lighting control. The SMPTE signal is generated by the controlling device and transmitted
to the SMPTE Gateway. The gateway acts as a receiver in a SMPTE system.

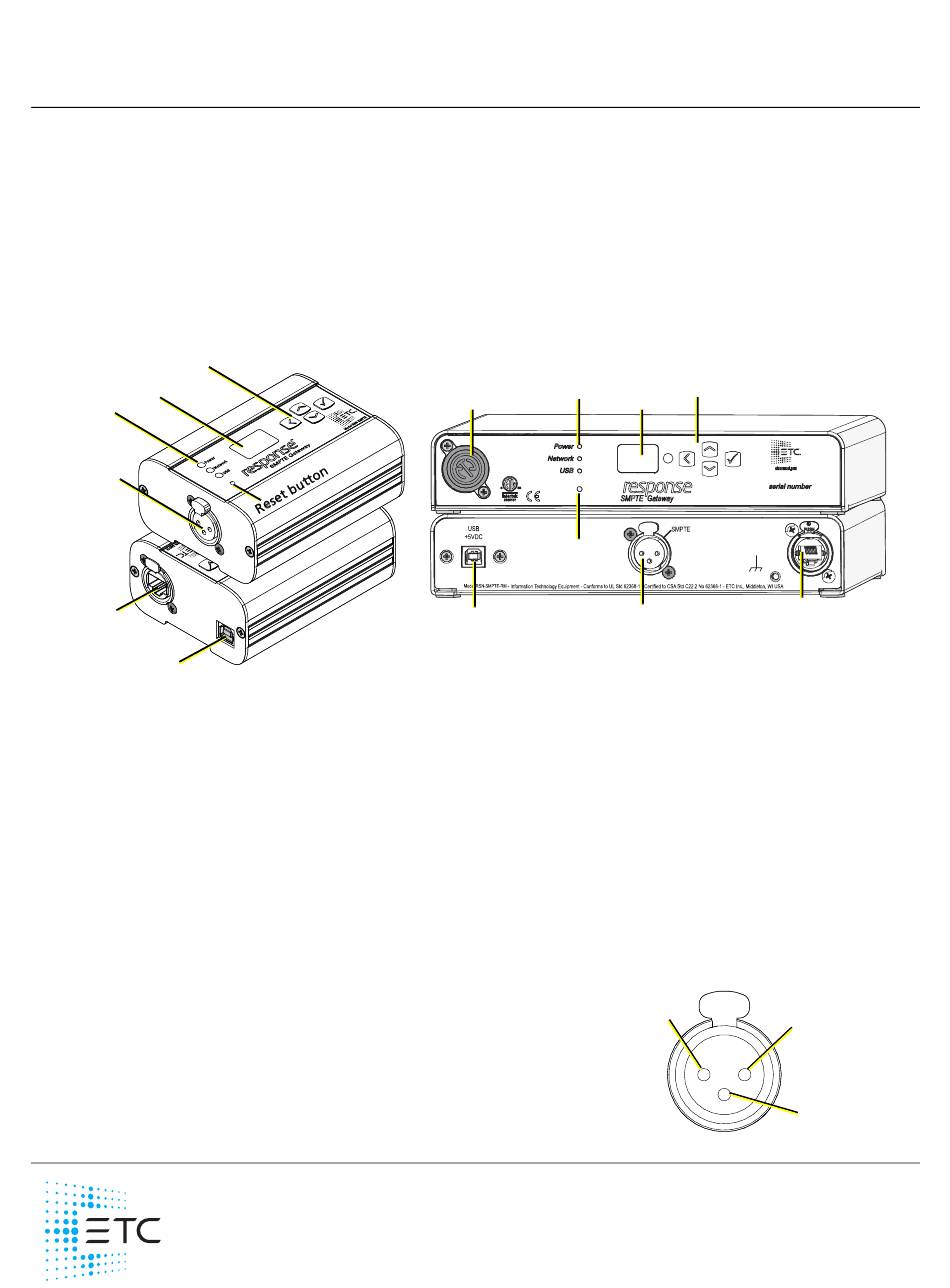

There is a backpack and rack-mounted version of the SMPTE gateway.
Up, Down, Back,
Enter buttons
OLED
LED
screen
indicators
SMPTE
Input
Ethernet
port
USB port

LED Indicators

• Power - solid blue indicates that power is supplied
• Network - solid green indicates network connection and blinking indicates network activity
• USB - solid green indicates USB connection and solid red indicates connection without having fully
detected, identified and loaded device drivers

Action Buttons

• Up, Down, Back buttons - The Back button allows you to return to the previous menu option and the
Up and Down buttons navigate between menu options
• Enter - The Enter button allows you to advance to the next available menu option or commit a
modified selection
• Reset - The Reset button provides a physical button to reset the gateway but does not restore factory
settings

SMPTE Connection

The three-pin XLR connector on the gateway allows for connection
of an LTC SMPTE source in the form of a balanced audio input.
Corporate Headquarters Middleton, WI, USA +1 608 831 4116 London, UK +44 (0)20 8896 1000
Holzkirchen, DE +49 (80 24) 47 00-0 Rome, IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 Paris, FR +33 1 4243 3535
Web
© 2019 Electronic Theatre Controls, Inc. Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
4267M2270 Rev B Released 2019-11
Backpack version
etcconnect.com Support support.etcconnect.com
Rack Mount version
LED
Alternative
indicators
Ethernet location
Reset button
USB port
Contact etcconnect.com/contactETC
etcconnect.com/ip
Up, Down, Back,
OLED
Enter buttons
screen
Ethernet
SMPTE Input
port
In Phase
Common
(Signal +)
(Ground)
2 1
3
Out of phase
(Signal -)
