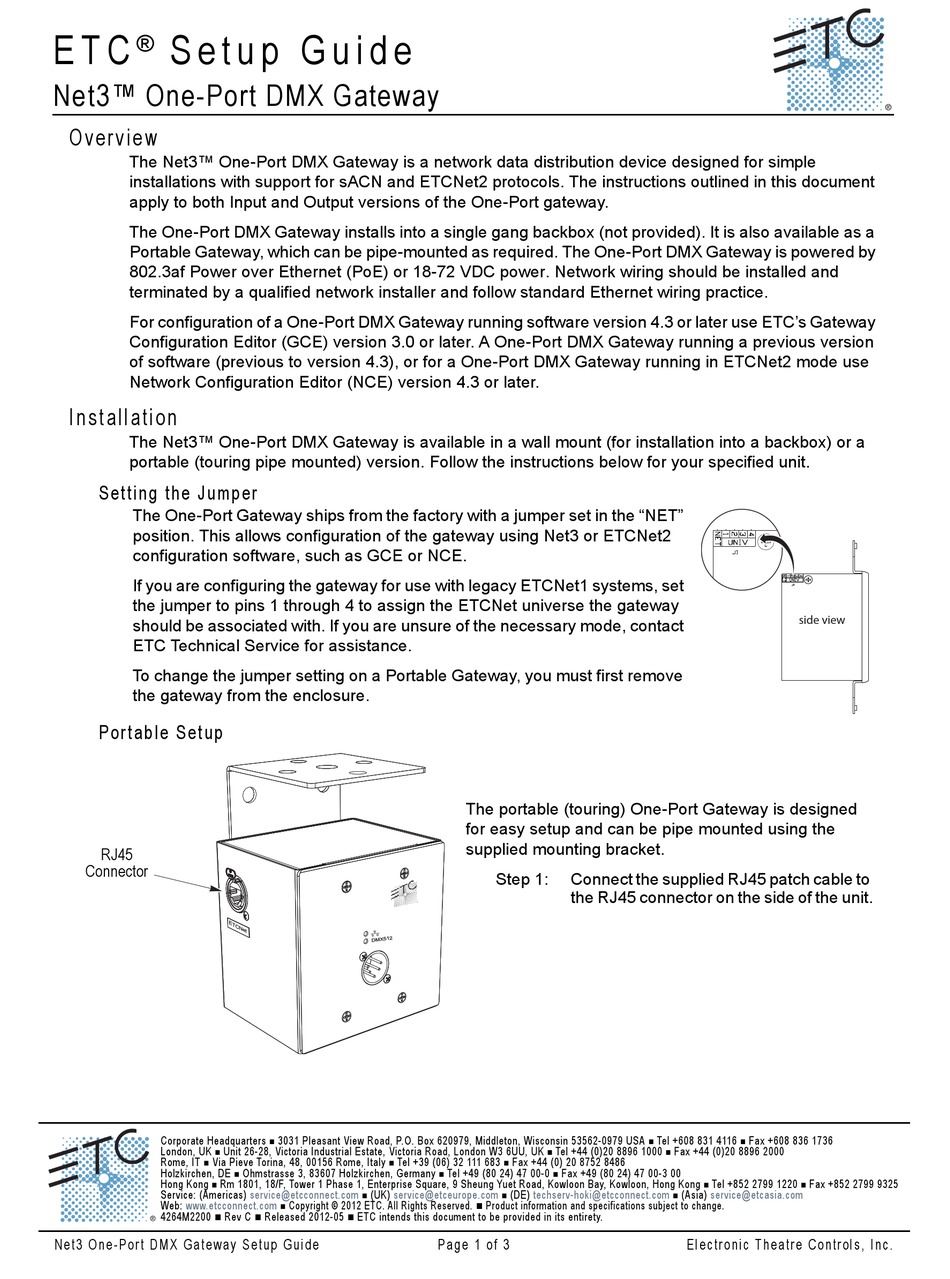

E T C
S e t u p G u i d e
®
Net3™ One-Port DMX Gateway

Overview

The Net3™ One-Port DMX Gateway is a network data distribution device designed for simple
installations with support for sACN and ETCNet2 protocols. The instructions outlined in this document
apply to both Input and Output versions of the One-Port gateway.
The One-Port DMX Gateway installs into a single gang backbox (not provided). It is also available as a
Portable Gateway, which can be pipe-mounted as required. The One-Port DMX Gateway is powered by
802.3af Power over Ethernet (PoE) or 18-72 VDC power. Network wiring should be installed and
terminated by a qualified network installer and follow standard Ethernet wiring practice.
For configuration of a One-Port DMX Gateway running software version 4.3 or later use ETC's Gateway
Configuration Editor (GCE) version 3.0 or later. A One-Port DMX Gateway running a previous version
of software (previous to version 4.3), or for a One-Port DMX Gateway running in ETCNet2 mode use
Network Configuration Editor (NCE) version 4.3 or later.

Installation

The Net3™ One-Port DMX Gateway is available in a wall mount (for installation into a backbox) or a
portable (touring pipe mounted) version. Follow the instructions below for your specified unit.

Setting the Jumper

The One-Port Gateway ships from the factory with a jumper set in the "NET"
position. This allows configuration of the gateway using Net3 or ETCNet2
configuration software, such as GCE or NCE.
If you are configuring the gateway for use with legacy ETCNet1 systems, set
the jumper to pins 1 through 4 to assign the ETCNet universe the gateway
should be associated with. If you are unsure of the necessary mode, contact
ETC Technical Service for assistance.
To change the jumper setting on a Portable Gateway, you must first remove
the gateway from the enclosure.

Portable Setup

RJ45
Connector
E T
Corporate Headquarters
London, UK
Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK
Rome, IT
Via Pieve Torina, 48, 00156 Rome, Italy
Holzkirchen, DE
Hong Kong
Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong
Service: (Americas)
Web:
www.etcconnect.com
4264M2200
Rev C
Net3 One-Port DMX Gateway Setup Guide
C N
e t
3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA
Tel +39 (06) 32 111 683
Ohmstrasse 3, 83607 Holzkirchen, Germany
service@etcconnect.com
(UK)
service@etceurope.com
Copyright © 2012 ETC. All Rights Reserved.
Released 2012-05
ETC intends this document to be provided in its entirety.

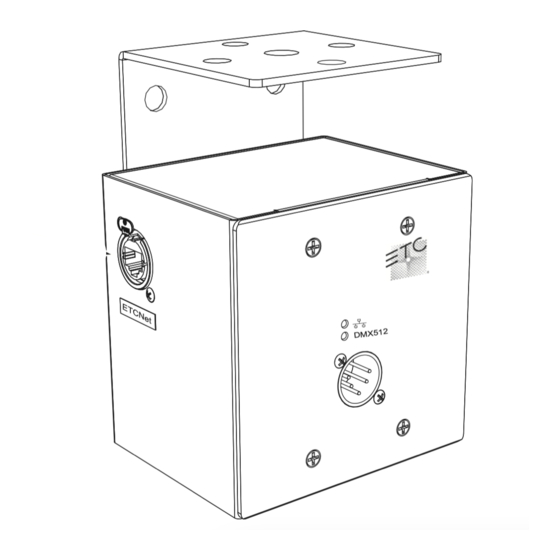

The portable (touring) One-Port Gateway is designed
for easy setup and can be pipe mounted using the
supplied mounting bracket.
Step 1:
Connect the supplied RJ45 patch cable to
the RJ45 connector on the side of the unit.
Tel +44 (0)20 8896 1000
Fax +44 (0) 20 8752 8486
Tel +49 (80 24) 47 00-0
Fax +49 (80 24) 47 00-3 00
(DE)
techserv-hoki@etcconnect.com
Product information and specifications subject to change.
Page 1 of 3
side view
Tel +608 831 4116
Fax +608 836 1736
Fax +44 (0)20 8896 2000
Tel +852 2799 1220
Fax +852 2799 9325
(Asia)
service@etcasia.com
Electronic Theatre Controls, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Net3 and is the answer not in the manual?

Questions and answers

Summary of Contents for ETC Net3

  • Page 1 Network Configuration Editor (NCE) version 4.3 or later. Installation The Net3™ One-Port DMX Gateway is available in a wall mount (for installation into a backbox) or a portable (touring pipe mounted) version. Follow the instructions below for your specified unit.
  • Page 2 One-Port DMX Gateway Wall Mount Installation For surface mount applications ETC recommends the use of an ETC 1 gang surface mount backbox (part# 1064A1037). For flush mount applications, ETC recommends the use of RACO #691 backbox or equivalent (provided by others).
  • Page 3 • DMX input port versions: a blinking DMX LED indicates no active DMX is present. • DMX output port versions: a blinking LED indicates no valid sACN or EDMX data is present over the network. Net3 One-Port DMX Gateway Setup Guide Page 3 of 3 Electronic Theatre Controls, Inc.
