ViconNet 8.0 Software
Quick Installation Guide

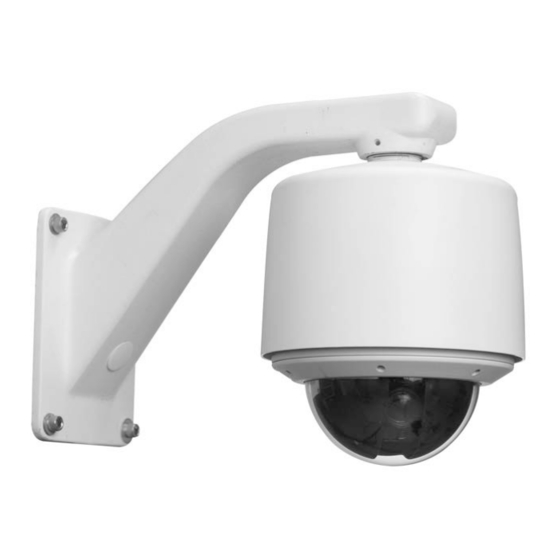

Surveyor® MKII Network Camera Domes
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8282-20-02 Product specifications subject to change without
notice. Issued: 10/17 Copyright © 2017 Vicon Industries Inc. All rights reserved.
XXYYY-XX-XX
XX282-20-02
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon Surveyor 282-20-02 Series
Summary of Contents for Vicon Surveyor 282-20-02 Series
- Page 1 Surveyor® MKII Network Camera Domes XX282-20-02 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform Toll Free: 800-645-9116 precisely as described in the documentation.
- Page 2 MKII Series of Camera Domes. Refer to the complete manual, XX282-0X (installation) and XX282-4X (web browser), for complete details on installation, setup and operating details. These can be found on Vicon’s website vicon-security.com. The Surveyor MKII is a compact network dome comprised of a camera/lens and pan/tilt drive in an attractive covert enclosure.
-
Page 3: Installation
Quick Operation Guide Installation Outdoor and Impact-Resistant Pendant The Customer Interface (CI) board is packed separately with the mechanism. This has to be snapped into the housing. Install mount or prepare vertical 1-1/2 NPT pipe with appropriate coupling. Screw housing clockwise into mount. When snug, turn an additional quarter turn. - Page 4 Quick Operation Guide Pressurized The Customer Interface (CI) board is packed separately with the mechanism. This has to be snapped into the housing. Connect plastic tube to pressure sensor.
-
Page 5: Wiring And Setup
Quick Operation Guide Wiring and Setup CONNECTOR/PIN CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME NUMBER TERMINAL BLOCK POWER (J2) J2-1 J2-2 Neutral TERMINAL BLOCK ALARM (J11) J11-1 ALARM 1 Alarm I/O 1 J11-2 Ground J11-3 ALARM 2 Alarm I/O 2 J11-4 Ground J11-5 ALARM 3... - Page 6 Quick Operation Guide Pressurized Cable Preparation Be sure to connect the plastic tube to the pressure sensor on the Customer Interface board. Using the prefabricated cable. Using a customer prepared cable...
-
Page 7: Using The Web Browser Interface
The camera dome defaults to using DHCP. The Surveyor MKII login screen displays. Note that the Discovery tool utility for the Surveyor MKII is available on Vicon’s website, vicon-security.com, under Learn and Support, Software Downloads. The utility will not be included in the dome’s accessory kit. - Page 8 Quick Operation Guide Login The initial screen prompts the user to login with a user name and password. Upon first use, the default user name is ADMIN (upper case) and the password is 1234. It is recommended to modify the password of the admin user to ensure security of the system.
- Page 9 Quick Operation Guide The Setting area allows for configuration of a variety of controls. • The System tab screen provides network, time zone settings and advanced settings for importing files, setting defaults and reboots. • The Network screen provides settings for FTP, SMTP, HTTPS, 802.1X, QoS, IGMP, SIP, MDA, DDNS, UPnP and IP filter.
- Page 10 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
