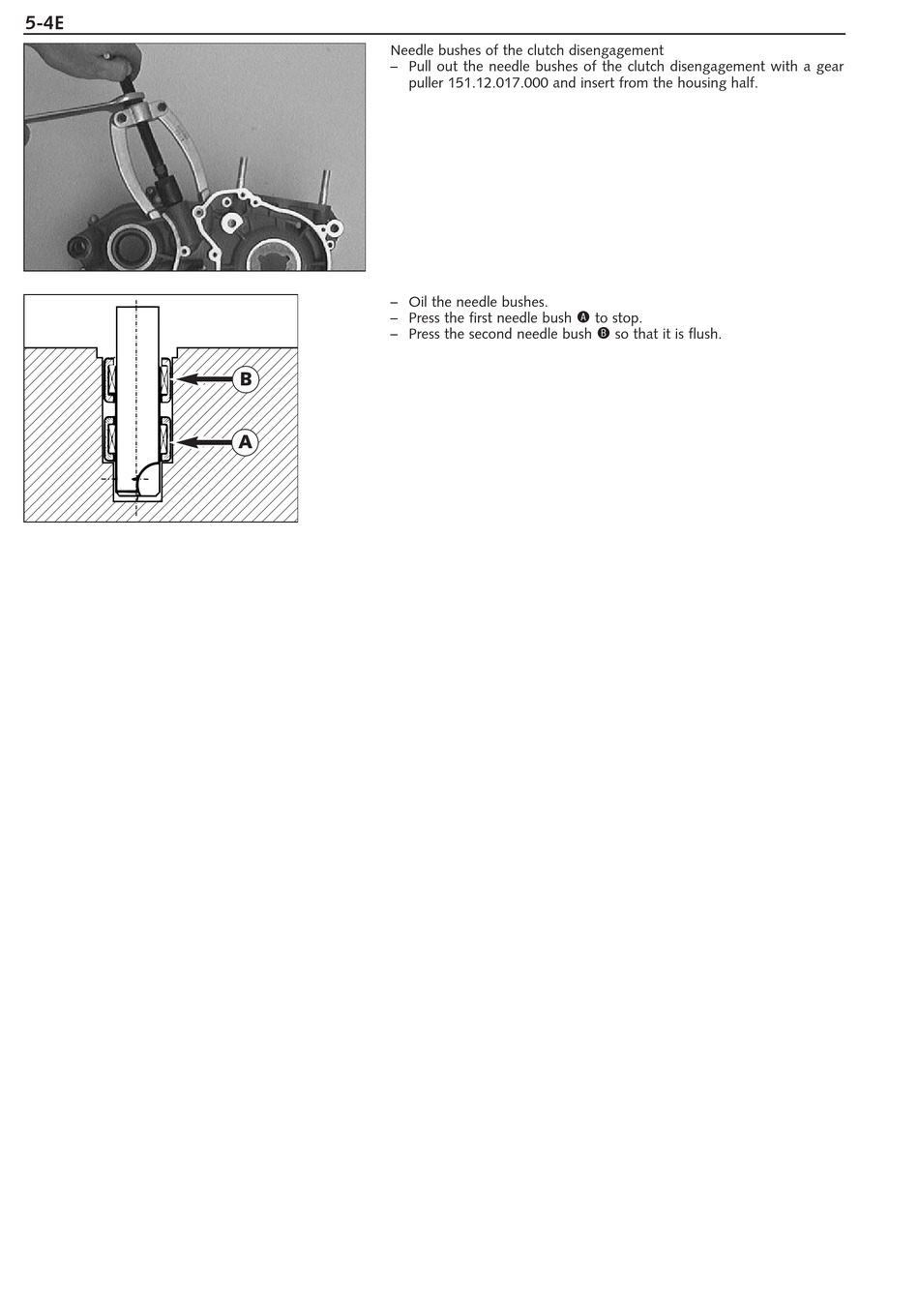

5-4E
Needle bushes of the clutch disengagement
– Pull out the needle bushes of the clutch disengagement with a gear
puller 151.12.017.000 and insert from the housing half.
– Oil the needle bushes.
A
– Press the first needle bush
to stop.
B
– Press the second needle bush
so that it is flush.
B
A
