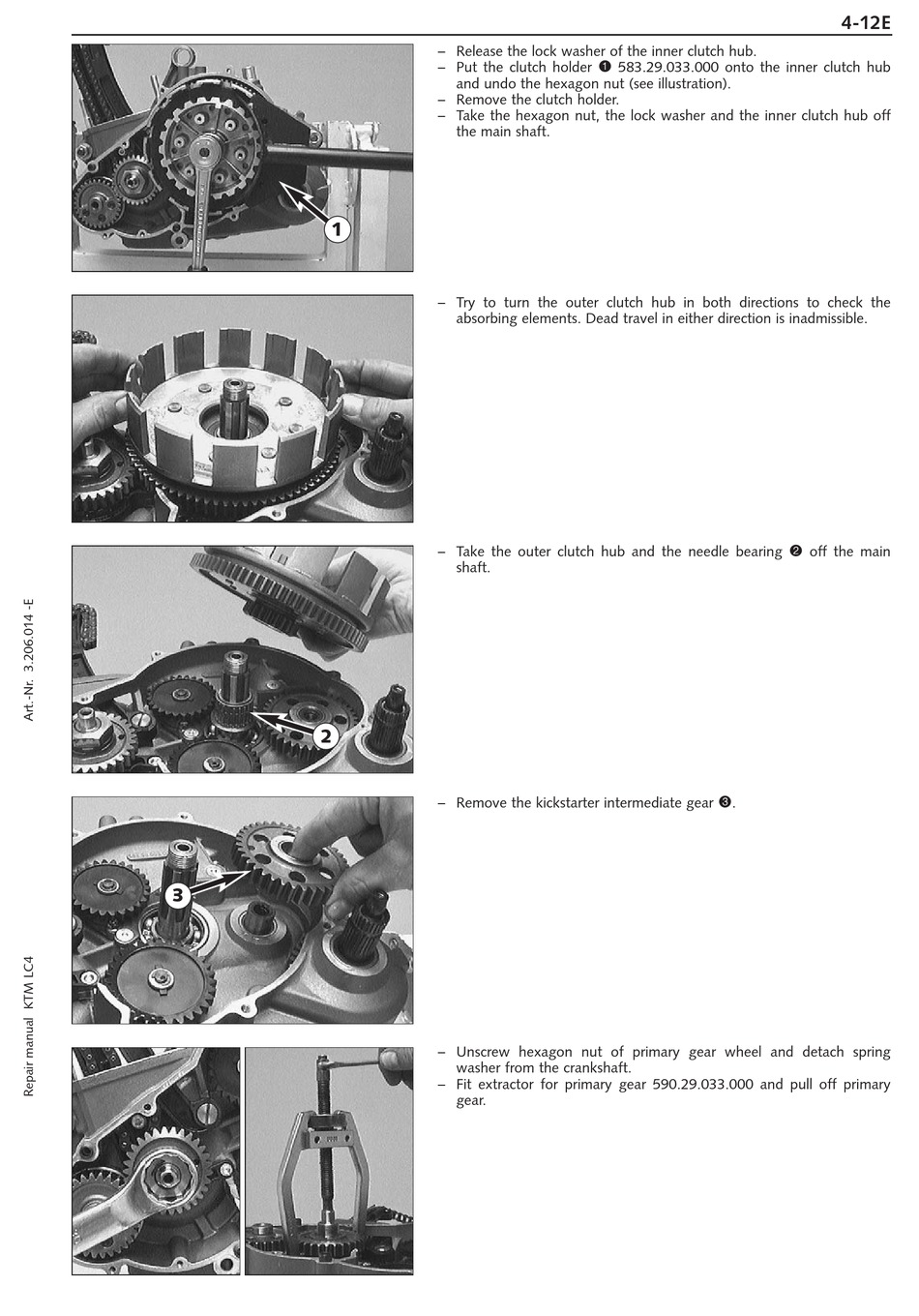

KTM 400-660 LC4 1998-2005 Repair Manual page 53

1
2
3
– Release the lock washer of the inner clutch hub.
1
– Put the clutch holder
and undo the hexagon nut (see illustration).
– Remove the clutch holder.
– Take the hexagon nut, the lock washer and the inner clutch hub off
the main shaft.
– Try to turn the outer clutch hub in both directions to check the
absorbing elements. Dead travel in either direction is inadmissible.
– Take the outer clutch hub and the needle bearing
shaft.
– Remove the kickstarter intermediate gear
– Unscrew hexagon nut of primary gear wheel and detach spring
washer from the crankshaft.
– Fit extractor for primary gear 590.29.033.000 and pull off primary
gear.
583.29.033.000 onto the inner clutch hub
2
3
.
4-12E
off the main
