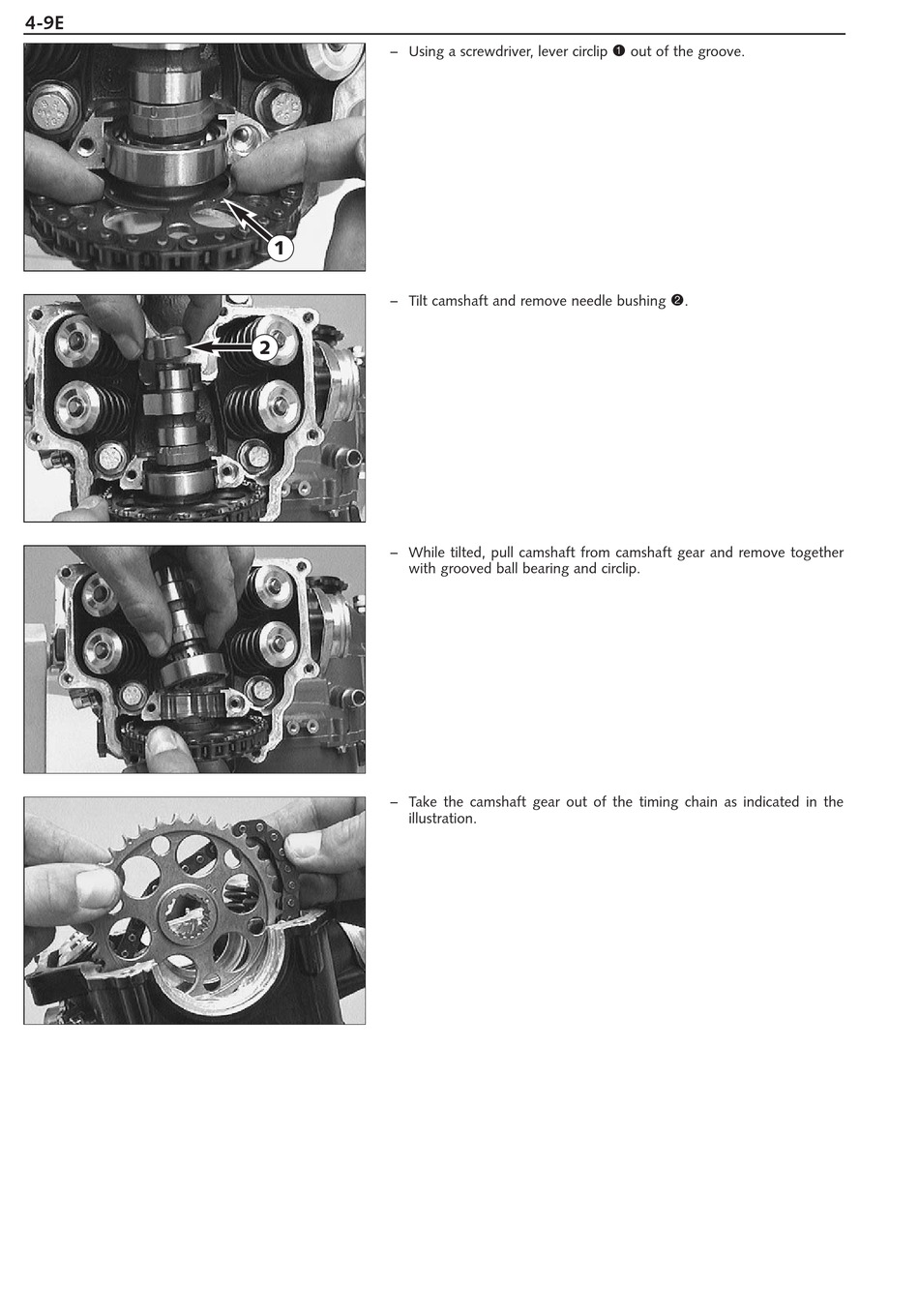

KTM 400-660 LC4 1998-2005 Repair Manual page 50

4-9E
– Using a screwdriver, lever circlip
1
– Tilt camshaft and remove needle bushing
2
– While tilted, pull camshaft from camshaft gear and remove together
with grooved ball bearing and circlip.
– Take the camshaft gear out of the timing chain as indicated in the
illustration.
1
out of the groove.
2
.
