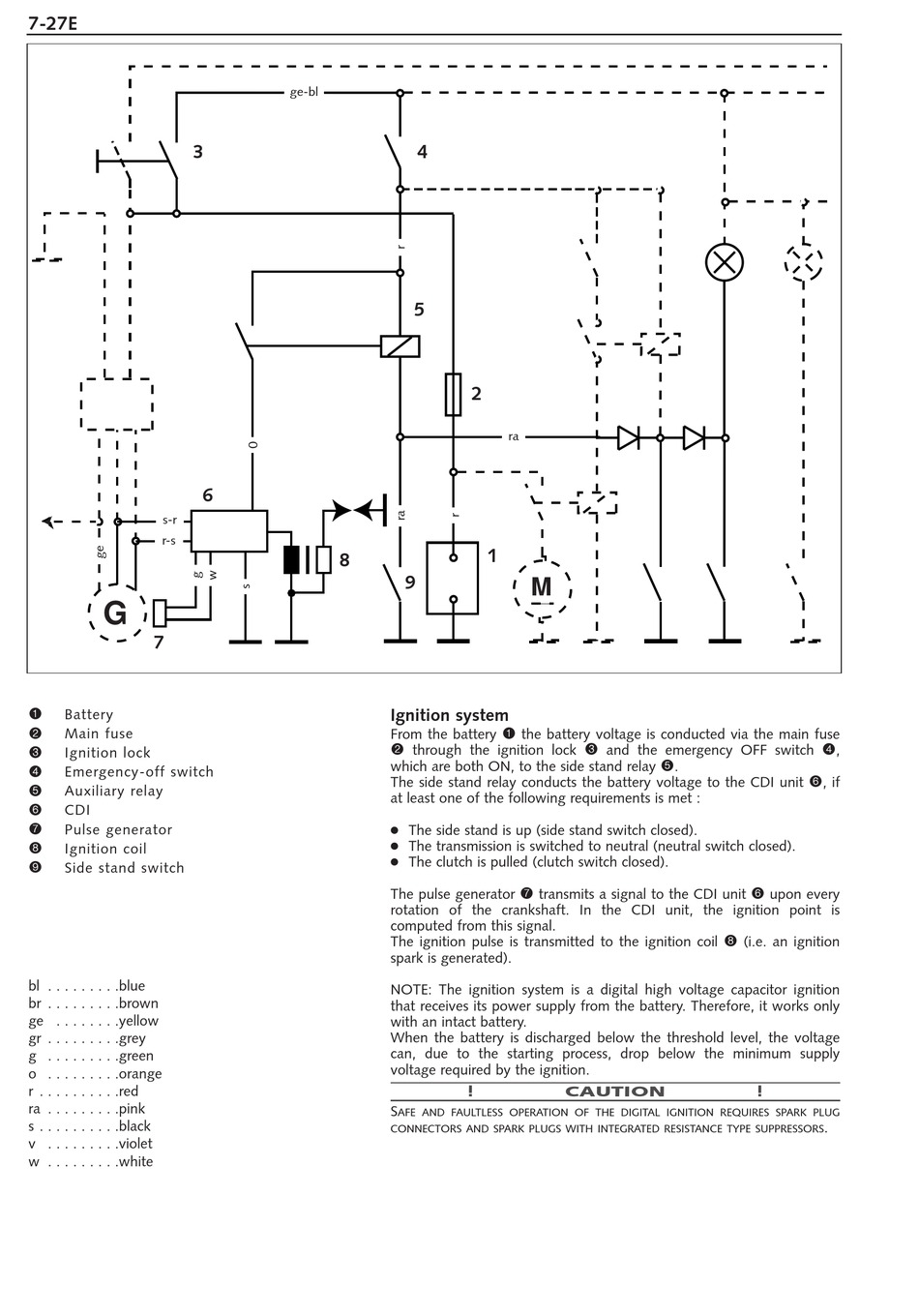

Ignition system
1
From the battery the battery voltage is conducted via the main fuse
2
through the ignition lock
which are both ON, to the side stand relay
The side stand relay conducts the battery voltage to the CDI unit
at least one of the following requirements is met :
● The side stand is up (side stand switch closed).
● The transmission is switched to neutral (neutral switch closed).
● The clutch is pulled (clutch switch closed).
7
The pulse generator transmits a signal to the CDI unit
rotation of the crankshaft. In the CDI unit, the ignition point is
computed from this signal.
The ignition pulse is transmitted to the ignition coil
spark is generated).
NOTE: The ignition system is a digital high voltage capacitor ignition
that receives its power supply from the battery. Therefore, it works only
with an intact battery.
When the battery is discharged below the threshold level, the voltage
can, due to the starting process, drop below the minimum supply
voltage required by the ignition.
!
S
AFE AND FAULTLESS OPERATION OF THE DIGITAL IGNITION REQUIRES SPARK PLUG
CONNECTORS AND SPARK PLUGS WITH INTEGRATED RESISTANCE TYPE SUPPRESSORS
3
and the emergency OFF switch
5
.
8
CAUTION
4
,
6
, if
6
upon every
(i.e. an ignition
!
.
