7-7E
3
1

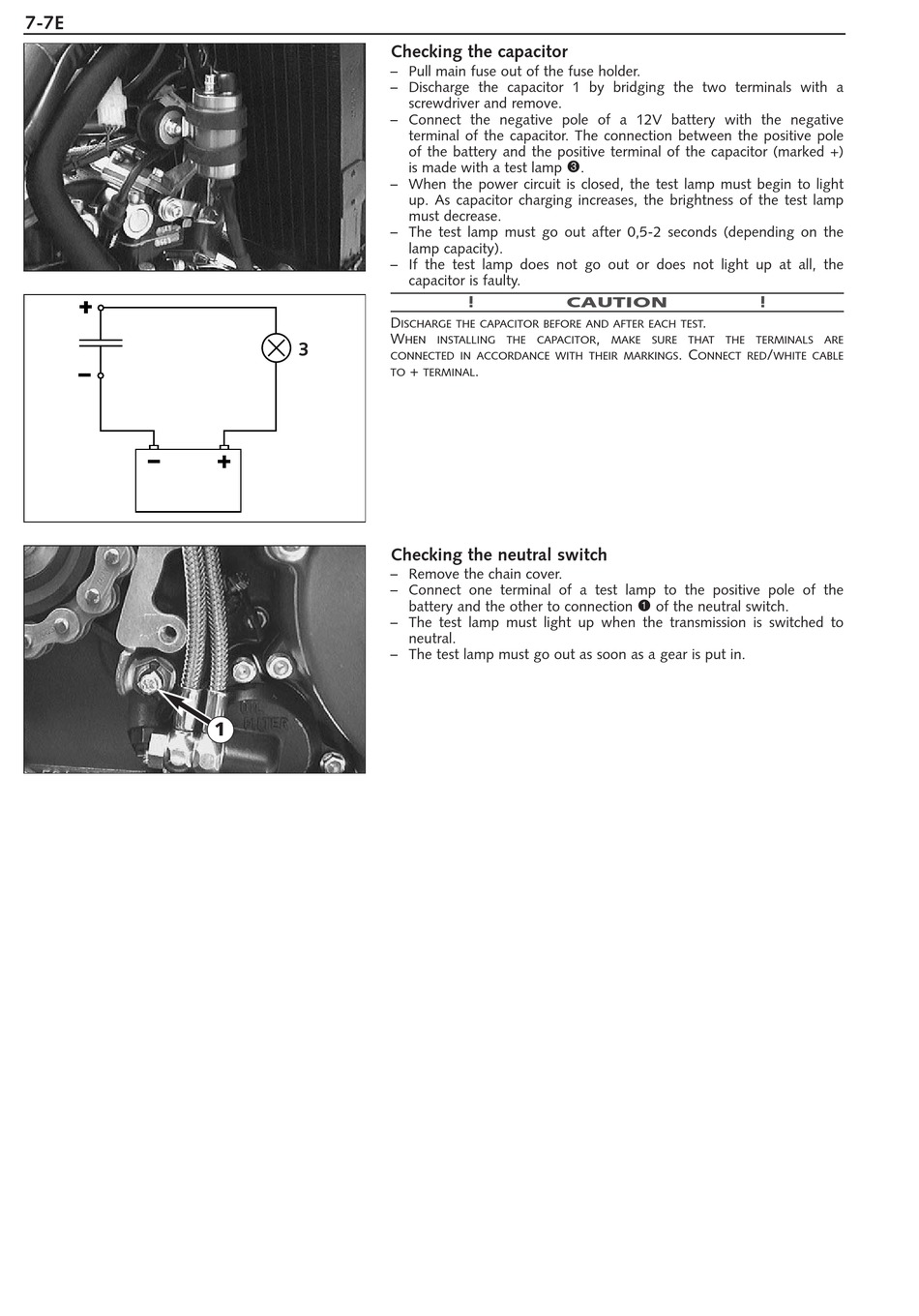

Checking the capacitor
– Pull main fuse out of the fuse holder.
– Discharge the capacitor 1 by bridging the two terminals with a
screwdriver and remove.
– Connect the negative pole of a 12V battery with the negative
terminal of the capacitor. The connection between the positive pole
of the battery and the positive terminal of the capacitor (marked +)
is made with a test lamp
– When the power circuit is closed, the test lamp must begin to light
up. As capacitor charging increases, the brightness of the test lamp
must decrease.
– The test lamp must go out after 0,5-2 seconds (depending on the
lamp capacity).
– If the test lamp does not go out or does not light up at all, the
capacitor is faulty.
!
D
ISCHARGE THE CAPACITOR BEFORE AND AFTER EACH TEST
W
HEN INSTALLING THE CAPACITOR
CONNECTED IN ACCORDANCE WITH THEIR MARKINGS
+ .
TO TERMINAL

Checking the neutral switch

– Remove the chain cover.
– Connect one terminal of a test lamp to the positive pole of the
battery and the other to connection
– The test lamp must light up when the transmission is switched to
neutral.
– The test lamp must go out as soon as a gear is put in.
3
.
CAUTION
.
,
MAKE SURE THAT THE TERMINALS ARE
. C
ONNECT RED
1
of the neutral switch.
!
/
WHITE CABLE
