Mounting The Water Pump - KTM 400-660 LC4 1998-2005 Repair Manual

6-13E

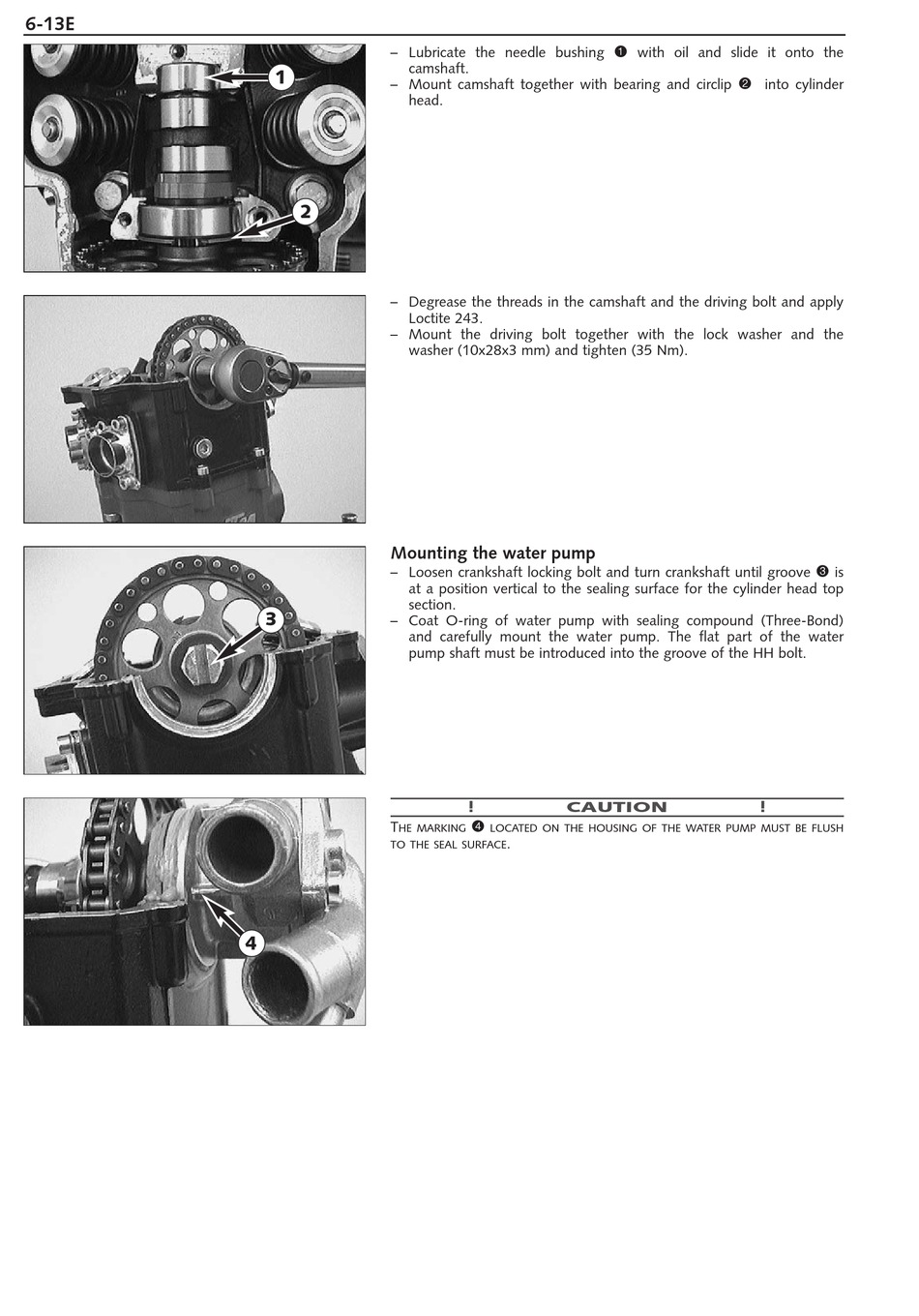

– Lubricate the needle bushing
camshaft.
1
– Mount camshaft together with bearing and circlip
head.
2
– Degrease the threads in the camshaft and the driving bolt and apply
Loctite 243.
– Mount the driving bolt together with the lock washer and the
washer (10x28x3 mm) and tighten (35 Nm).

Mounting the water pump

– Loosen crankshaft locking bolt and turn crankshaft until groove
at a position vertical to the sealing surface for the cylinder head top
section.
3
– Coat O-ring of water pump with sealing compound (Three-Bond)
and carefully mount the water pump. The flat part of the water
pump shaft must be introduced into the groove of the HH bolt.
T
HE MARKING
TO THE SEAL SURFACE
4
1
with oil and slide it onto the
!
CAUTION
4
LOCATED ON THE HOUSING OF THE WATER PUMP MUST BE FLUSH
.
2
into cylinder
3
is
!
