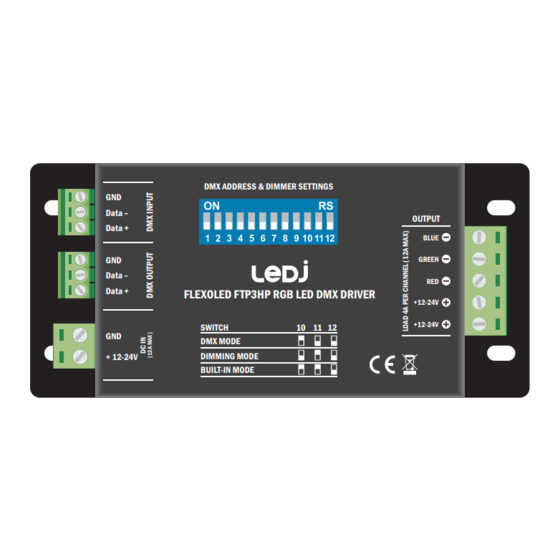

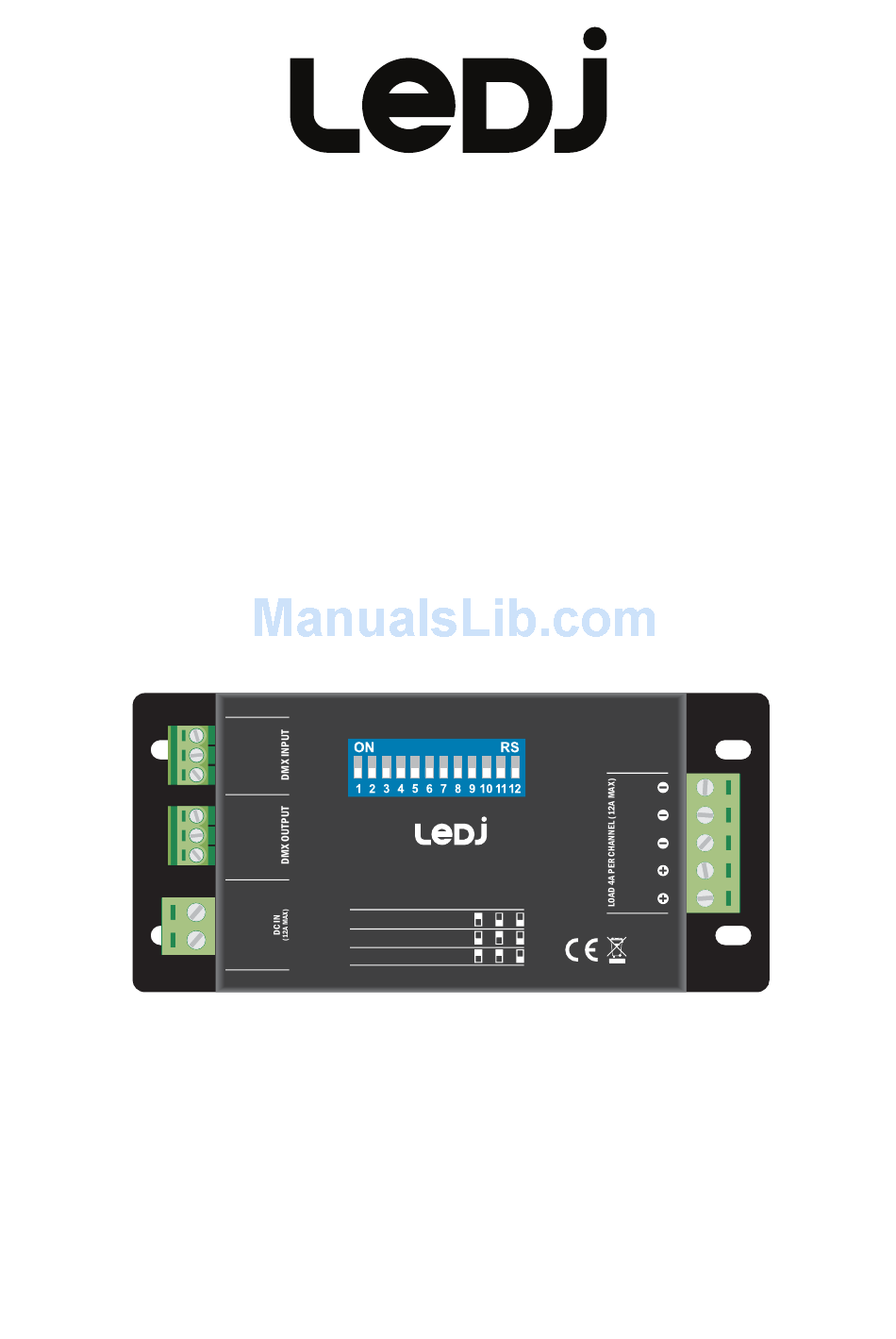

- Page 1 User Manual DMX ADDRESS & DIMMER SETTINGS Data – OUTPUT Data + BLUE GREEN Data – Data + FLEXOLED FTP3HP RGB LED DMX DRIVER +12-24V +12-24V SWITCH 10 11 12 DMX MODE DIMMING MODE + 12-24V BUILT-IN MODE Order code: FLEX30...
- Page 2 Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:...
- Page 3 Data – OUTPUT Data + Weight 0.2kg BLUE GREEN IP rating IP20 Data – Order code FLEX30 Data + FLEXOLED FTP3HP RGB LED DMX DRIVER +12-24V +12-24V SWITCH 10 11 12 DMX MODE In the box: 1 x unit & DIMMING MODE + 12-24V BUILT-IN MODE...
-
Page 4: Operating Instructions
Operating instructions 3 channel mode: Channel Value Function 000-255 Dimmer 1 (Red) (0-100%) 000-255 Dimmer 2 (Green) (0-100%) 000-255 Dimmer 3 (Blue) (0-100%) Manual dimming/static colour selection mode: In manual dimming mode, dipswitch 11 should be in the “ON” position. Dipswitches 1-3 should be now used to control the intensity of the Red LEDs, 4-6 for the Green LEDs and 7-9 for the Blue LEDs. Please refer to the table below for more information. Dipswitch setting: Intensity CH1 Red (1-3) CH2 Green (4-6) CH3 Blue (7-9) 1 = ON 0 = OFF 9 10 Green Blue... - Page 5 Example configuration DMX Controller DMX IN DMX OUT Power IN 12/24V DC Power supply 230V 12/24V DC LED tape (Parallel) Please note: The feed cable between the controller and the LED tape must be kept as short as possible. Using a large diameter cable will prevent voltage drop issues over longer distances. Wiring in parallel with feed cables to both ends of the LED tape will prevent colour fades across the length of the tape. www.prolight.co.uk FTP3HP RGB LED DMX Driver User Manual...
- Page 6 Example configuration DMX Controller DMX IN DMX OUT DMX IN DMX OUT Power IN Power IN 12/24V DC 12/24V DC Power supply Power supply 230V 230V + R G B + R G B www.prolight.co.uk FTP3HP RGB LED DMX Driver User Manual...
- Page 7 Related items Please contact your local retailer to purchase these related items. Visio TRI-RGB Flexible Tri-colour Strip Visio TRI-RGB60 Flexible Visio TRI-RGB60 Flexible Tri-colour Strip (FLS-RGB) (5m roll) Tri-colour Strip (5m roll) (5m roll) Black PCB Order code: LEDC220 Order code: LEDC227 Order code: LEDC227B Visio Meanwell SP-320-24 320W 24V DC Power Supply Order code: LEDC233 To keep up-to-date on the latest accessories and product range additions please visit www.prolight.co.uk...
- Page 8 WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk www.prolight.co.uk FTP3HP RGB LED DMX Driver User Manual...
