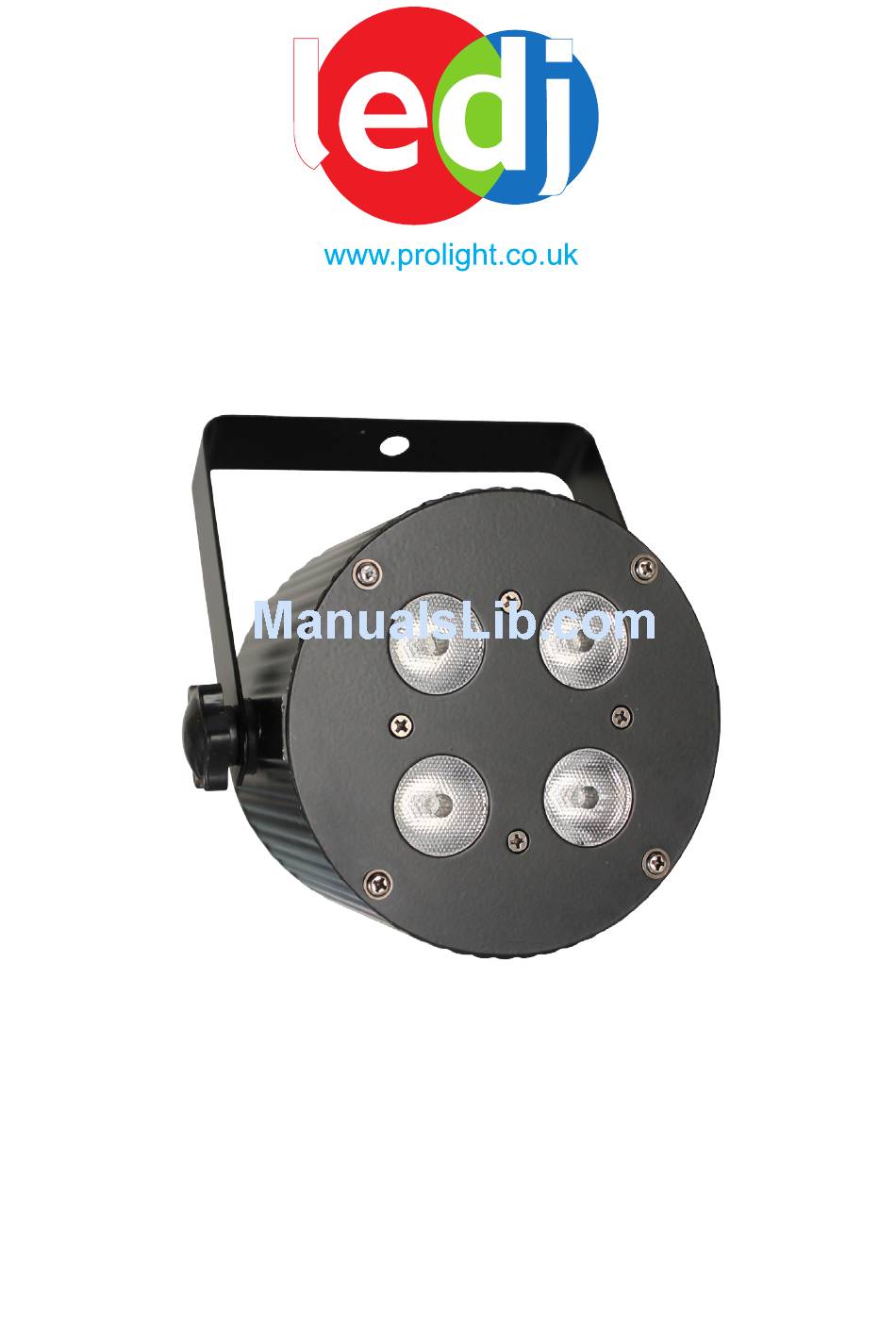

- Page 1 COLOUR BLAST Order code: LEDJ02 USER MANUAL...
- Page 2 COLOR BLAST SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual...
- Page 3 COLOR BLAST SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 • DMX channels: 3/6 selectable • Blackout/Dimmer/Strobe/sound activation • Individual control of Red, Green and Blue LEDs • Optional DMX controllers: LEDJ S-1 (LEDJ126), LEDJ S-1F Foot controller (LEDJ127) Features • 4 x 3W Tri-colour LEDs • RGB colour mixing •...
- Page 5 COLOR BLAST OPERATIONS...
- Page 6 Note: For full function of the S-1 controller, please set the unit into the 3 channel DMX mode. Note: When using the S-1F foot switch controller please make sure that the unit is set into 3 channel DMX mode. Note: When the unit is being used in the 6 channel DMX mode, only the corresponding DMX sliders will work on the S-1 controller.
- Page 7 COLOR BLAST DMX SET UP DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
- Page 8 COLOR BLAST DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
