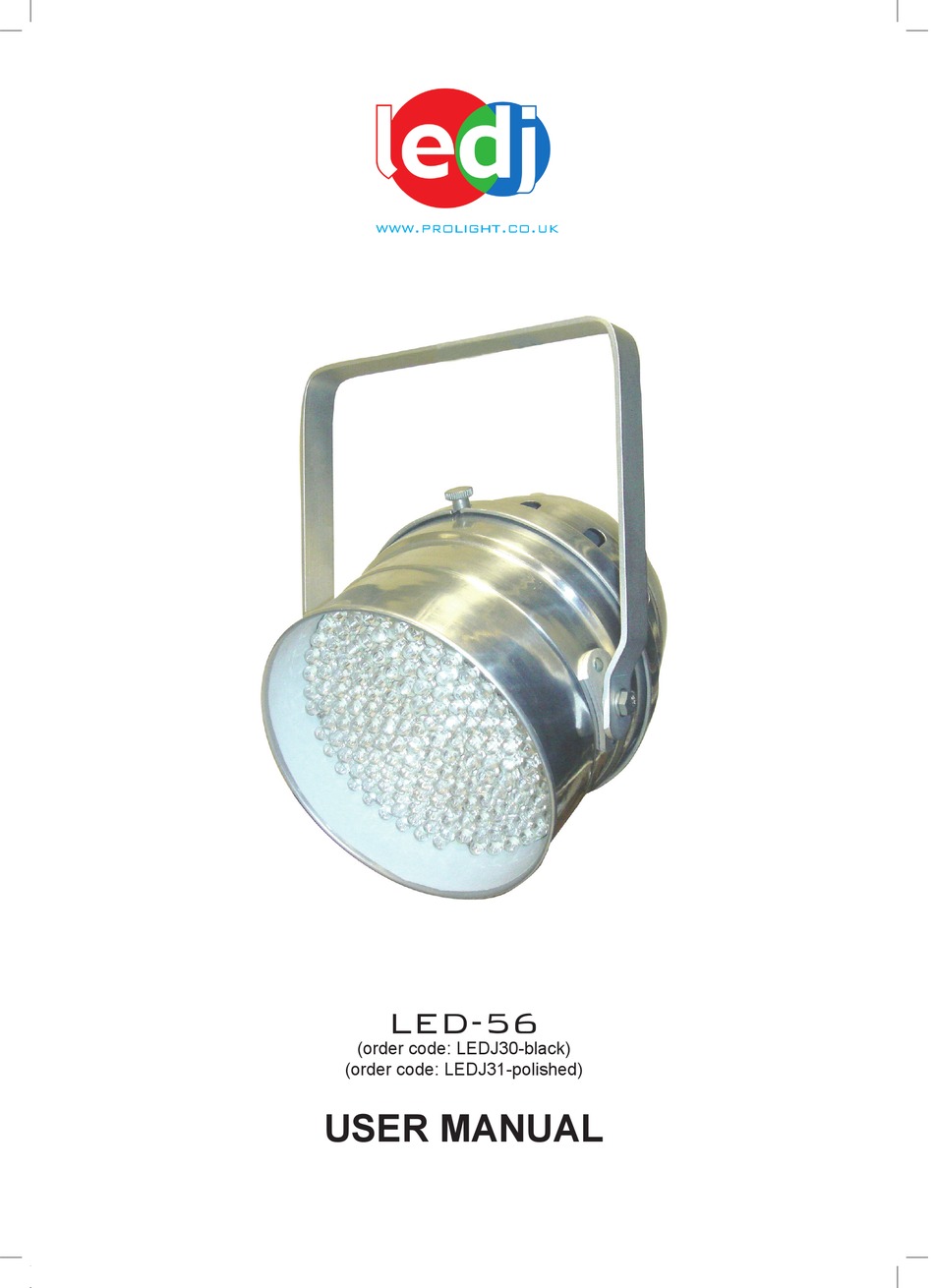

Page 1: User Manual

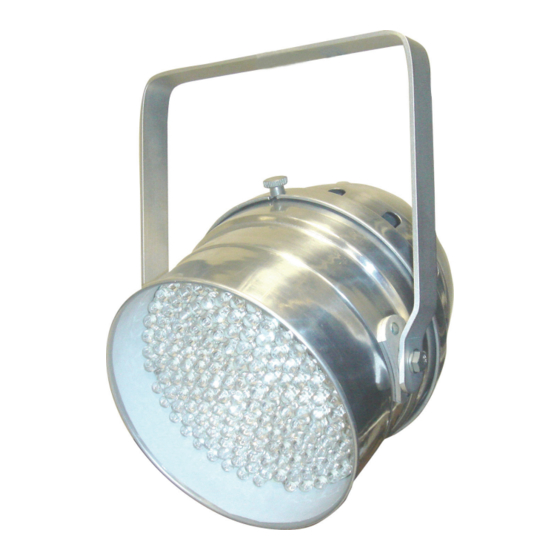

LED-56 (order code: LEDJ30-black) (order code: LEDJ31-polished) USER MANUAL... -
Page 2: Safety Instructions
LEDJ PAR CAN 56 SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
LEDJ PAR CAN 56 SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 LEDJ PAR CAN 56 INTRODUCTION Introduction CONTROL FEATURES • 4-channel DMX-512 LED Par Can • Blackout/Dimmer/Strobe/sound activation • Individual control of Red, Green and Blue LED’s Features • 108 LED’s: - Red (36), Green (36), and Blue (36) • Ultra bright 10mm LED’s •...
- Page 5 Setup Operating Instructions The LED-56 is a DMX-512 controllable, full RGB colour mixing Par Can made up of high efficiency and super bright LED’s. There are three colour groups (red, blue and green) whose intensity can be controlled individually allowing the creation of an unlimited range of colours.
- Page 6 LEDJ PAR CAN 56 MASTER/SLAVE Master/Slave The Master/Slave mode will allow you to link up as many units as you want in a daisy chain fash- ion. In this mode, the first unit in the daisy chain will control the following units.
-
Page 7: Control Options
With all the Dip switches set to off this activates an internal slow colour mixing change and fade programme. Blackout Mode With only dipswitch #10 set to ON the LED-56 will blackout. DMX Control Mode Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. - Page 8 LEDJ PAR CAN 56 CONTROL OPTIONS DMX Control Mode Set the start address using the group of dip switches located usually on the back of the fixture. Each dipswitch has an associated value. Adding the value of each switch in the ON position will provide the start address.
- Page 9 LEDJ PAR CAN 56 DMX SET UP DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
- Page 10 LEDJ PAR CAN 56 DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 11 LEDJ PAR CAN 56 Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position...
- Page 12 LEDJ PAR CAN 56 DMX VALUES DMX Channel Values DEFAULT VALUE Function 000>255 0-100% Green 000>255 0-100% Blue 000>255 0-100% Shutter/Strobe/Dimmer 001<>189 Blackout: 000 190<>250 Intensity: 001<>189 251<>255 Strobe: 190<>250 Full on: 251<>255 Technical Specifications Weight & Dimensions • Length…............275mm •...
