The flange surface of the rotary flange fitting
must be upright! The rotary flange fitting
must be fitted so that it is free from mechan-
ical stress or strain. Otherwise mechanical
damage of the rotary flange fitting may re-
sult. This can result in severe water dam-
age.
Therefore when installing, ensure that no
4.3

Installing the wall support components

Wall support

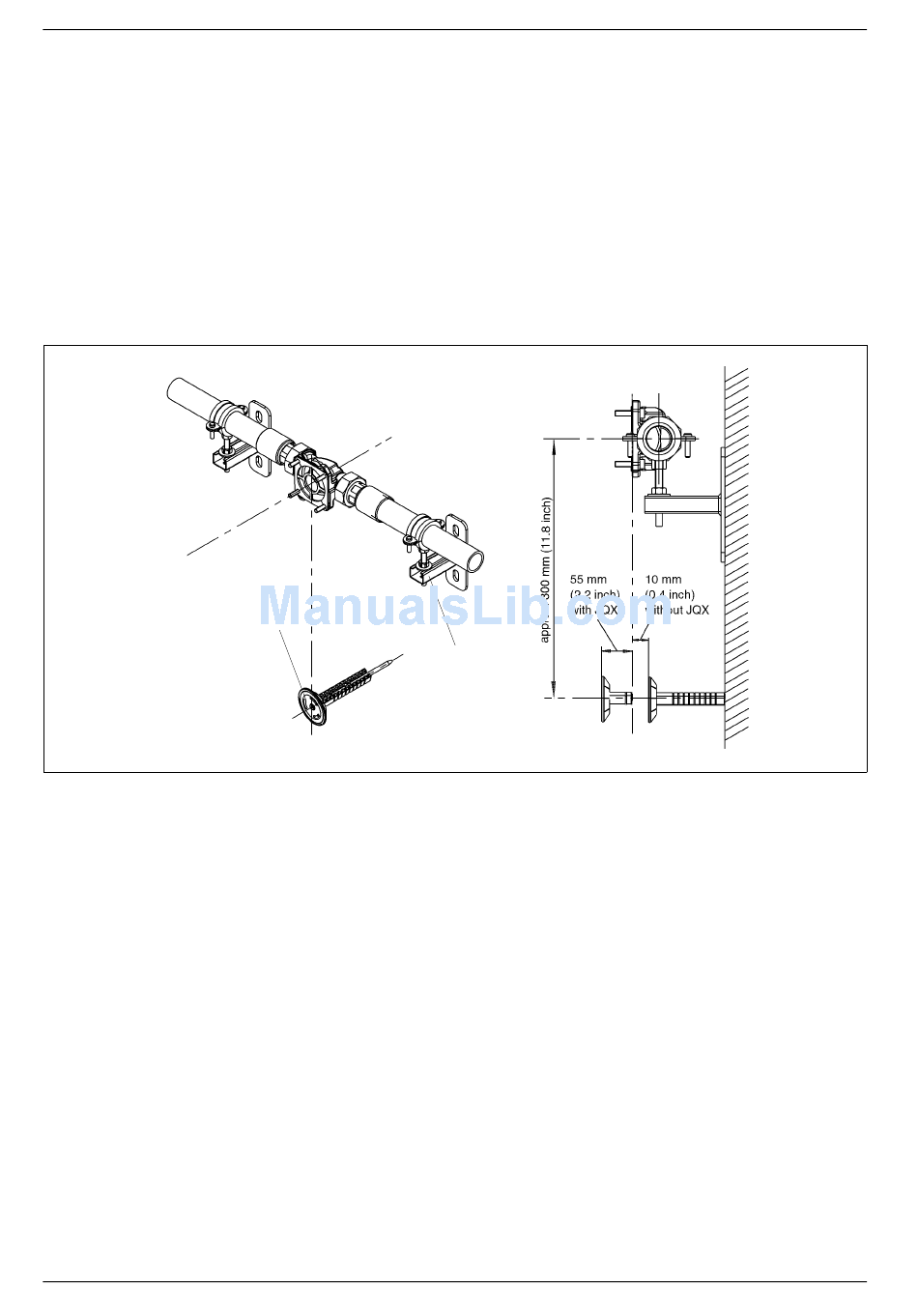

Fig. 4: Wall support components
The wall support ensures safe support of the device and in this way prevents rotation of the
device around the pipe. The mounting of the wall support (order no. 2201397) is described
in more detail in the corresponding installation instructions.
The bracket set (order no. 2201396) is primarily for relieving and securing the pipe.
4.4 Installation of the water sof-
tening system without a by-
pass valve
– First flush the pipe with the newly in-
stalled rotary flange fitting JQE. The ro-
tary flange fitting is still sealed by the
black mounting cover.
– Then shut-off the water again (at the
stopcock or shut-off valve) and remove
the mounting cover of the rotary flange
fitting.
Installation
large forces act on the pipe, rotary flange fit-
ting or water softening system.
Bracket set
The connection flange of the water softening
system is covered by a white protective cap.
This protective cap is secured using four
hexagon socket head screws M6×130.
– Loosen all four hexagon socket head
screws M6×130, but do not screw out
completely (bayonet connection)!
– Remove the white protective cap.
The profile of the profile flange seal must
point towards the rotary flange fitting (see
fig. 5). If this is not observed, the sealing
JUDO QUICKSOFT-P 11
