Supermicro A2SDi-4C-HLN4F User Manual page 47

VGA Enable/Disable
JPG1 allows you to enable or disable the VGA port using the onboard graphics controller.
The default setting is Enabled.
ME Manufacturing Mode Select
Close JPME2 to bypass SPI flash security and force the system to use the Manufacturing
Mode, which will allow you to flash the system firmware from a host server to modify system
settings. Refer the table below for jumper settings.
JUIDB
VGA
1
COM1
JPL1
SRW2
LEDM1
A
A2SDi-2C-HLN4F
REV:1.00
2
SRW1
USB2/3
JD1
JMD1
M.2:PCI-E 3.0 X2 / I-SATA
JSAS2
I-SATA
JL1: CHASSIS
8-11 INTRUSION
JD1:
1-4:SPEAKER
JSAS1
I-SATA
4-7
I-SATA0
I-SATA1
I-SATA2
1
JSD1
VGA Enable/Disable
Jumper Settings
Jumper Setting Definition
Pins 1-2 Enabled (Default)
Pins 2-3 Disabled
ME Manufacturing Mode
Jumper Settings
Jumper Setting Definition
Pins 1-2 Normal (Default)
Pins 2-3 Manufacturing Mode
JWD1
LAN2 LAN1
LAN4 LAN3
BAR CODE
CPU
JTPM1
JF1
I-SATA3
JF1 PWR NIC NIC
RST X OH/FF
ON 2 1 LED
JRT4
LED1
JRT3
47

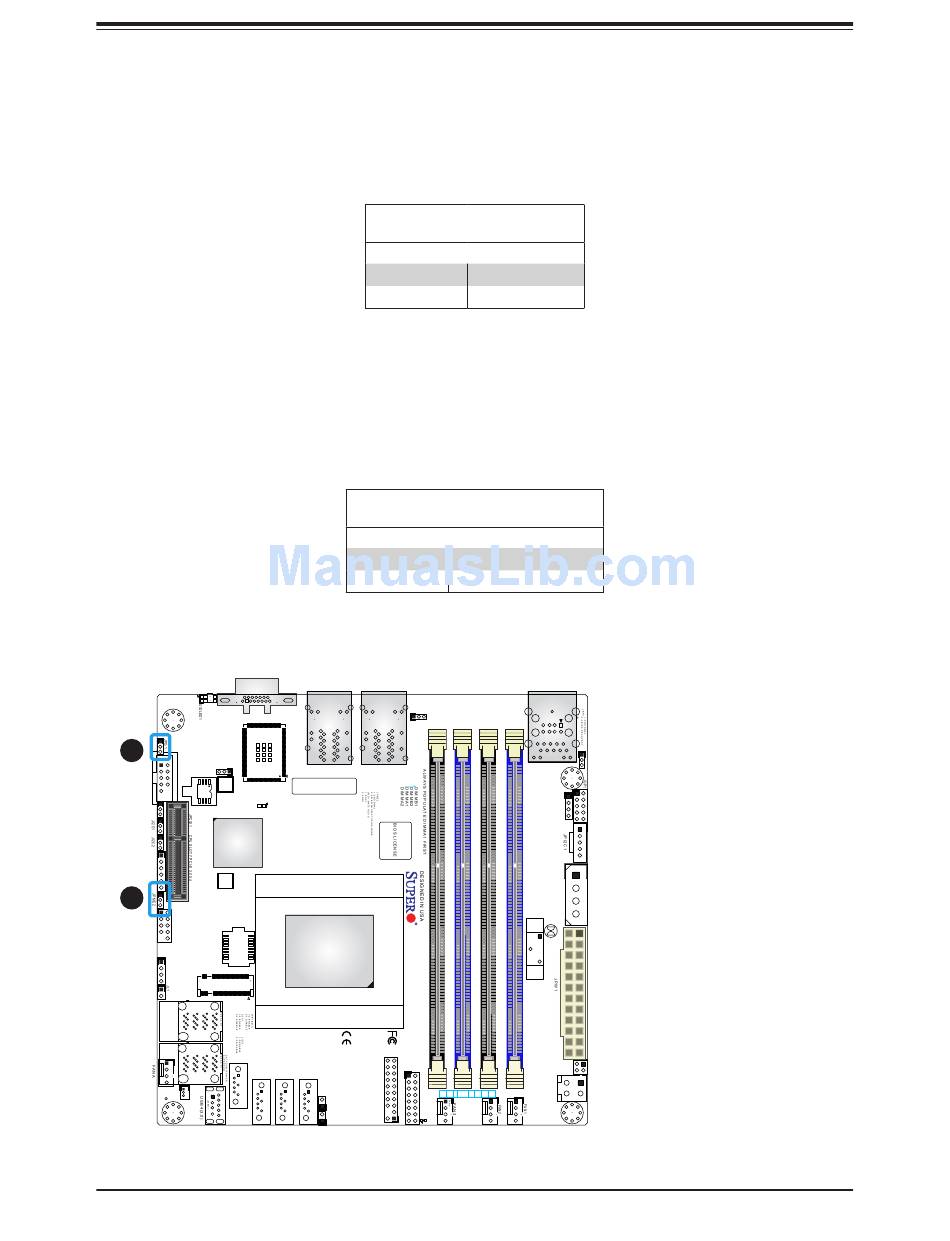

1. VGA Enable/Disable
2. ME Manufacturing Mode
JBR1
USB0/1
IPMI LAN
1
JSMB1
JPH1
JBT1
BT1
JTGLED1
JPV1
HDD PWR
LED
Chapter 2: Installation
