A2SDi-HLN4F Series User's Manual

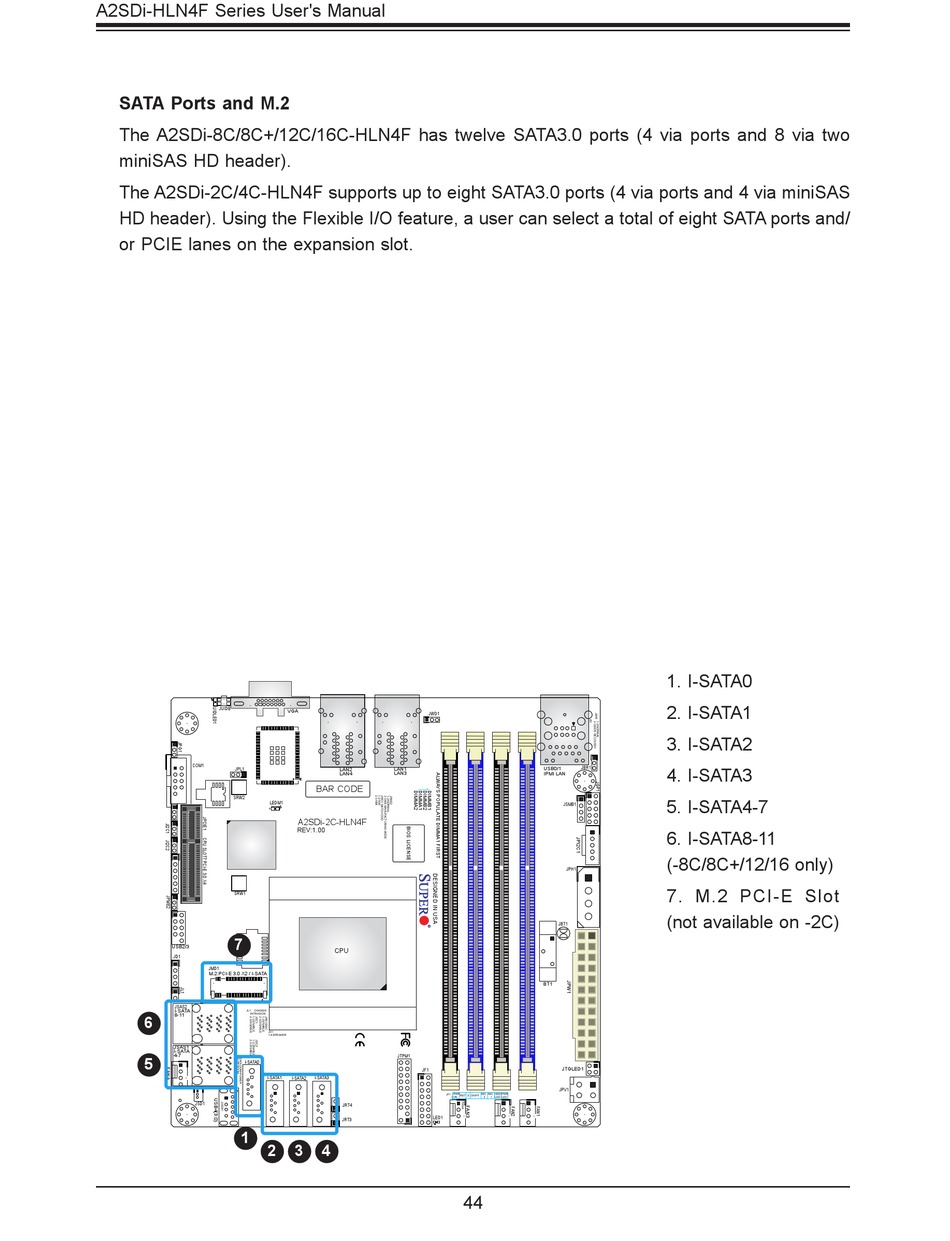

SATA Ports and M.2
The A2SDi-8C/8C+/12C/16C-HLN4F has twelve SATA3.0 ports (4 via ports and 8 via two
miniSAS HD header).
The A2SDi-2C/4C-HLN4F supports up to eight SATA3.0 ports (4 via ports and 4 via miniSAS
HD header). Using the Flexible I/O feature, a user can select a total of eight SATA ports and/
or PCIE lanes on the expansion slot.
JUIDB
COM1
JPL1
SRW2
LEDM1
A
SRW1
7
USB2/3
JD1
JMD1
M.2:PCI-E 3.0 X2 / I-SATA
JSAS2
I-SATA
JL1: CHASSIS
6 8-11 INTRUSION
JD1:
1-4:SPEAKER
JSAS1
I-SATA
4-7
5
I-SATA0
I-SATA1
1
JSD1
1
2
VGA
JWD1
LAN2 LAN1
LAN3
LAN4
BAR CODE
A2SDi-2C-HLN4F
REV:1.00
CPU
JTPM1
JF1
I-SATA3
I-SATA2
JF1 PWR
RST
ON
JRT4
LED1
JRT3
3 4
44
JBR1
USB0/1
IPMI LAN
1
JSMB1
JPH1
JBT1
BT1
JTGLED1
JPV1
NIC NIC HDD PWR
X OH/FF
2 1 LED LED
1. I-SATA0
2. I-SATA1
3. I-SATA2
4. I-SATA3
5. I-SATA4-7
6. I-SATA8-11
(-8C/8C+/12/16 only)
7. M.2 PCI-E Slot
(not available on -2C)
