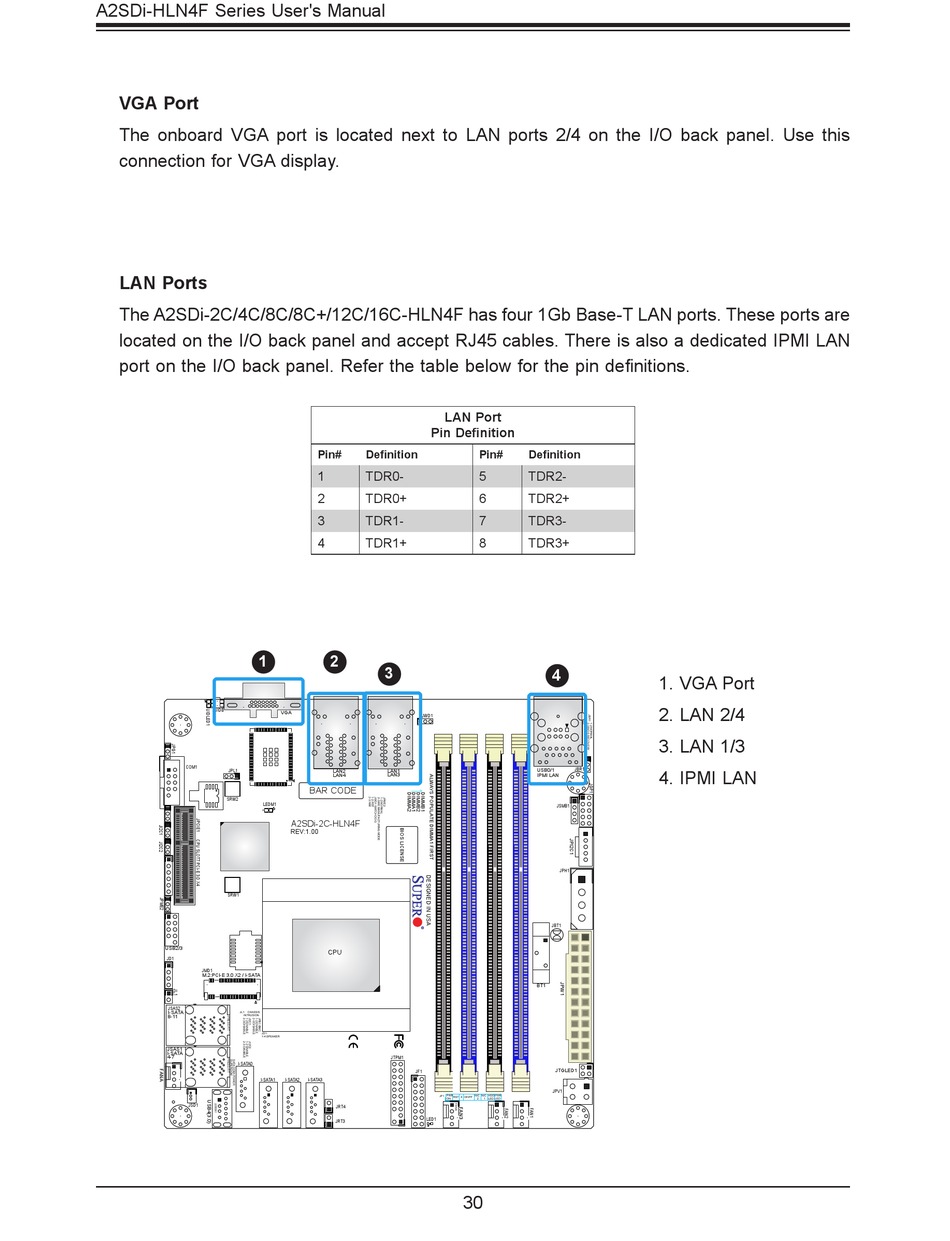

A2SDi-HLN4F Series User's Manual
VGA Port
The onboard VGA port is located next to LAN ports 2/4 on the I/O back panel. Use this
connection for VGA display.
LAN Ports
The A2SDi-2C/4C/8C/8C+/12C/16C-HLN4F has four 1Gb Base-T LAN ports. These ports are
located on the I/O back panel and accept RJ45 cables. There is also a dedicated IPMI LAN
port on the I/O back panel. Refer the table below for the pin definitions.
1
JUIDB
COM1
JPL1
SRW2
LEDM1
A
SRW1
USB2/3
JD1
JMD1
M.2:PCI-E 3.0 X2 / I-SATA
JSAS2
I-SATA
JL1: CHASSIS
8-11 INTRUSION
JD1:
1-4:SPEAKER
JSAS1
I-SATA
4-7
I-SATA0
I-SATA1
1
JSD1
LAN Port
Pin Definition
Pin# Definition
1 TDR0-
2 TDR0+
3 TDR1-
4 TDR1+
2
3
VGA
JWD1
LAN1
LAN2
LAN4 LAN3
BAR CODE
A2SDi-2C-HLN4F
REV:1.00
CPU
JTPM1
JF1
I-SATA2 I-SATA3
JF1 PWR
RST
ON
JRT4
LED1
JRT3
Pin# Definition
5 TDR2-
6 TDR2+
7 TDR3-
8 TDR3+
4
JBR1
USB0/1
IPMI LAN
1
JSMB1
JPH1
JBT1
BT1
JTGLED1
JPV1
NIC NIC HDD PWR
X OH/FF
2 1 LED LED
30
1. VGA Port
2. LAN 2/4
3. LAN 1/3
4. IPMI LAN
