Supermicro A2SDi-4C-HLN4F User Manual page 42

A2SDi-HLN4F Series User's Manual
Power SMB (I C) Header
2
Power System Management Bus (I
system temperatures. Refer the table below for pin definitions.
System Management Bus Header

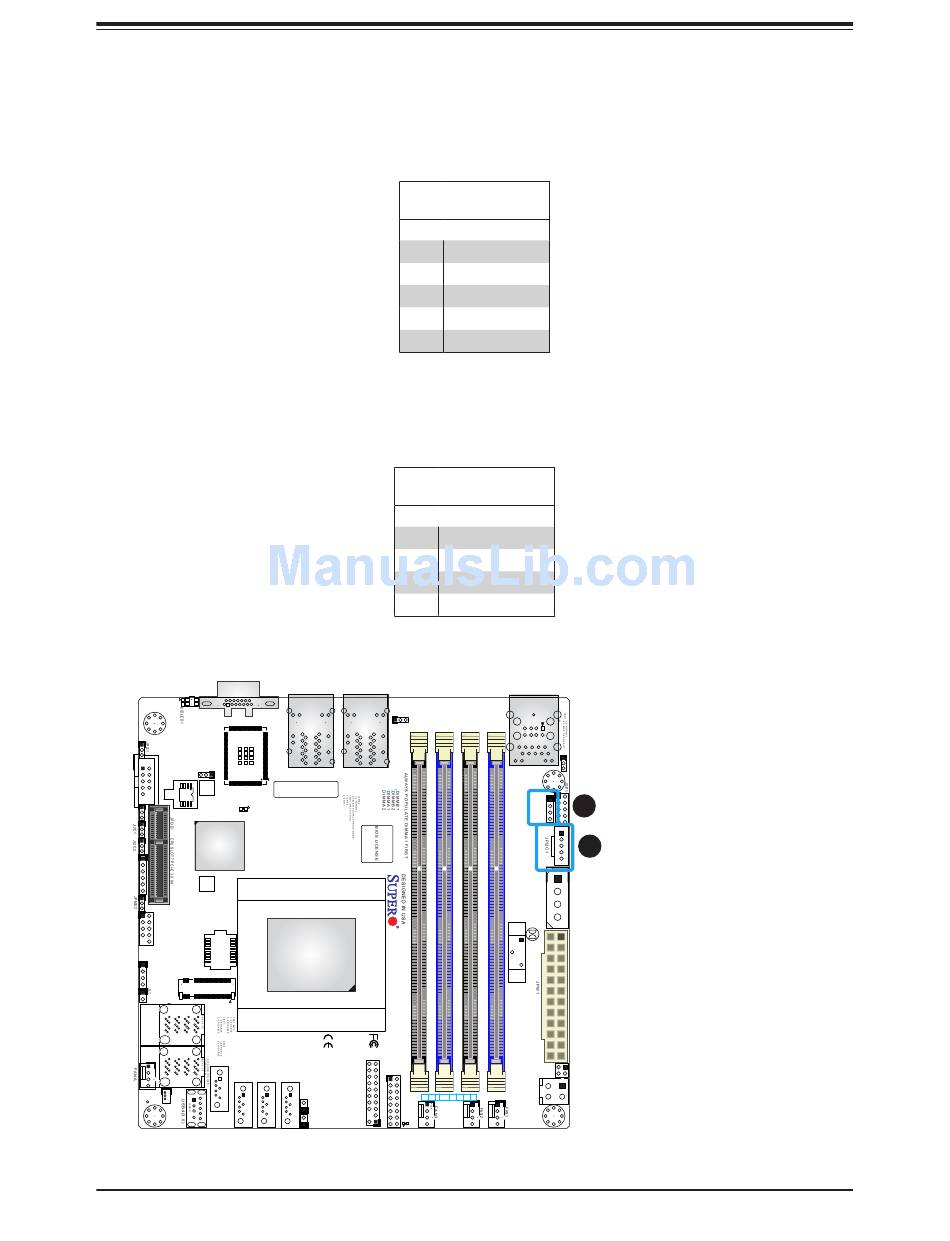

A System Management Bus header for additional slave devices or sensors is located at
JSMB1. Refer to the table below for pin definitions.
JUIDB
VGA
COM1
JPL1
SRW2
LEDM1
A
A2SDi-2C-HLN4F
REV:1.00
SRW1
USB2/3
JD1
JMD1
M.2:PCI-E 3.0 X2 / I-SATA
JSAS2
I-SATA JL1: CHASSIS
8-11
INTRUSION
JD1:
1-4:SPEAKER
JSAS1
I-SATA
4-7
I-SATA0
I-SATA1 I-SATA2
1
JSD1
C) header at JPI
2
Power SMB Header
Pin Definitions
Pin# Definition
1 Clock
2 Data
3 Power Fail
4 Ground
5 No Connection
SMBus Header
Pin Definitions
Pin# Definition
1 Data
2 Ground
3 Clock
4 No Connection
