A2SDi-HLN4F Series User's Manual

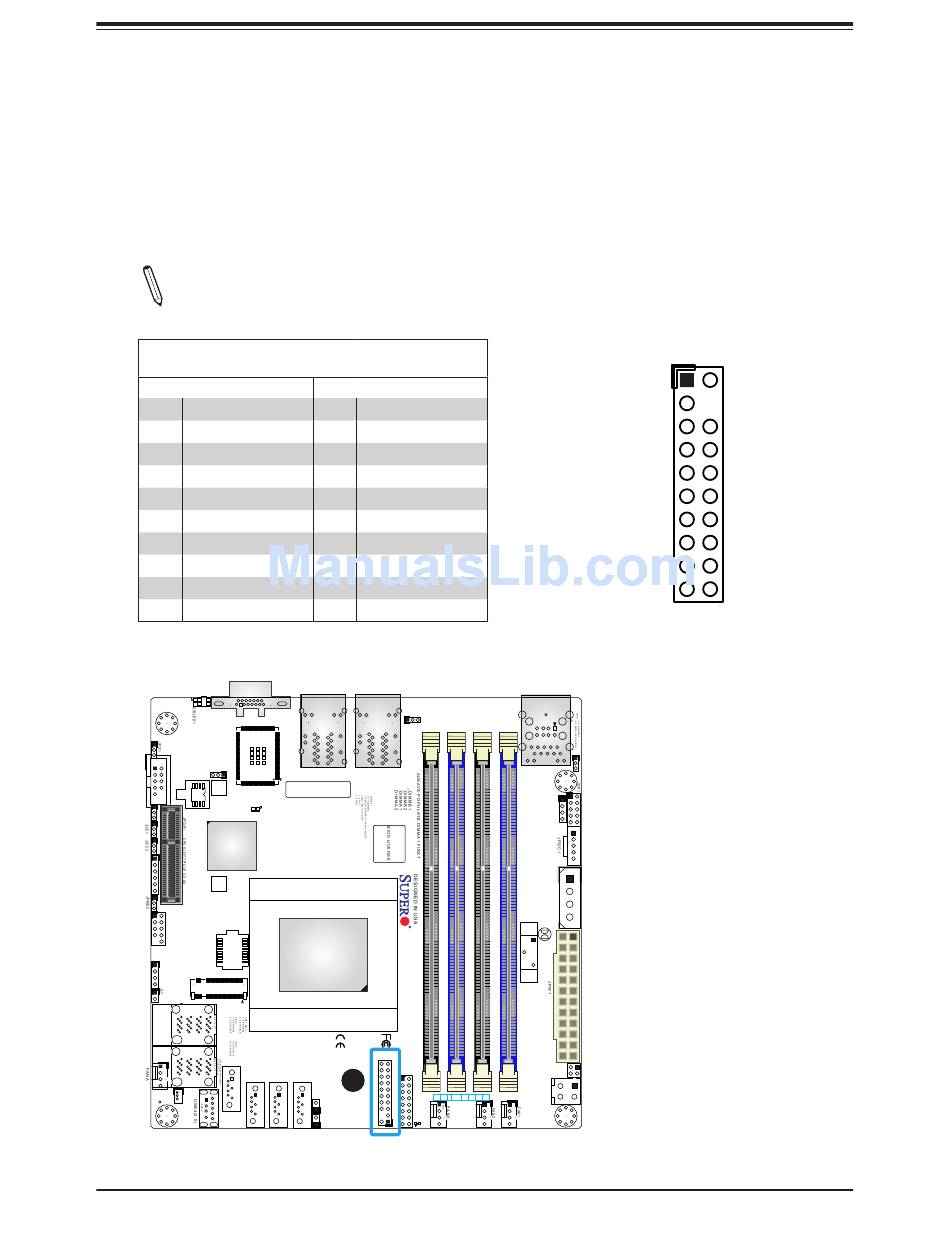

TPM Header
The JTPM1 header is used to connect a Trusted Platform Module (TPM), which is available
from Supermicro or a third-party vendor. A TPM is a security device that supports encryption
and authentication in hard drives. It enables the motherboard to deny access if the TPM
associated with the hard drive is not installed in the system. Refer the table below for pin
definitions.
Note: Please go to the following link for information on TPM:
com/manuals/other/TPM.pdf
Trusted Platform Module Header
Pin Definitions
Pin# Definition
1 LCLK
3 LFRAME#
5 LRESET#
7 LAD3
9 3.3V
11 LAD0
13 SMB_CLK (X)
15 P3V3_STBY
17 GND
19 SUS_STAT_N
JUIDB
VGA
COM1
JPL1
SRW2
LEDM1
A
SRW1
USB2/3
JD1
JMD1
M.2:PCI-E 3.0 X2 / I-SATA
JSAS2
I-SATA JL1: CHASSIS
8-11
INTRUSION
JD1:
1-4:SPEAKER
JSAS1
I-SATA
4-7
I-SATA0
I-SATA1 I-SATA2
1
JSD1
Pin# Definition
2 GND
4 No Pin
6 +5V (X)
8 LAD2
10 LAD1
12 GND
14 SMB_DAT (X)
16 SERIRQ
18 LPC_CLKRUN (X)
20 LDRQ# (X)
JWD1
LAN2 LAN1
LAN4 LAN3
BAR CODE
A2SDi-2C-HLN4F
REV:1.00
CPU
JTPM1
1 JF1
I-SATA3
PWR
JF1
RST X OH/FF
ON
JRT4
LED1
JRT3
JBR1
USB0/1
IPMI LAN
1
JSMB1
JPH1
JBT1
BT1
JTGLED1
JPV1
NIC NIC HDD PWR
2 1 LED LED
40
http://www.supermicro.
1
2
19
20
1. TPM Header
