A2SDi-HLN4F Series User's Manual

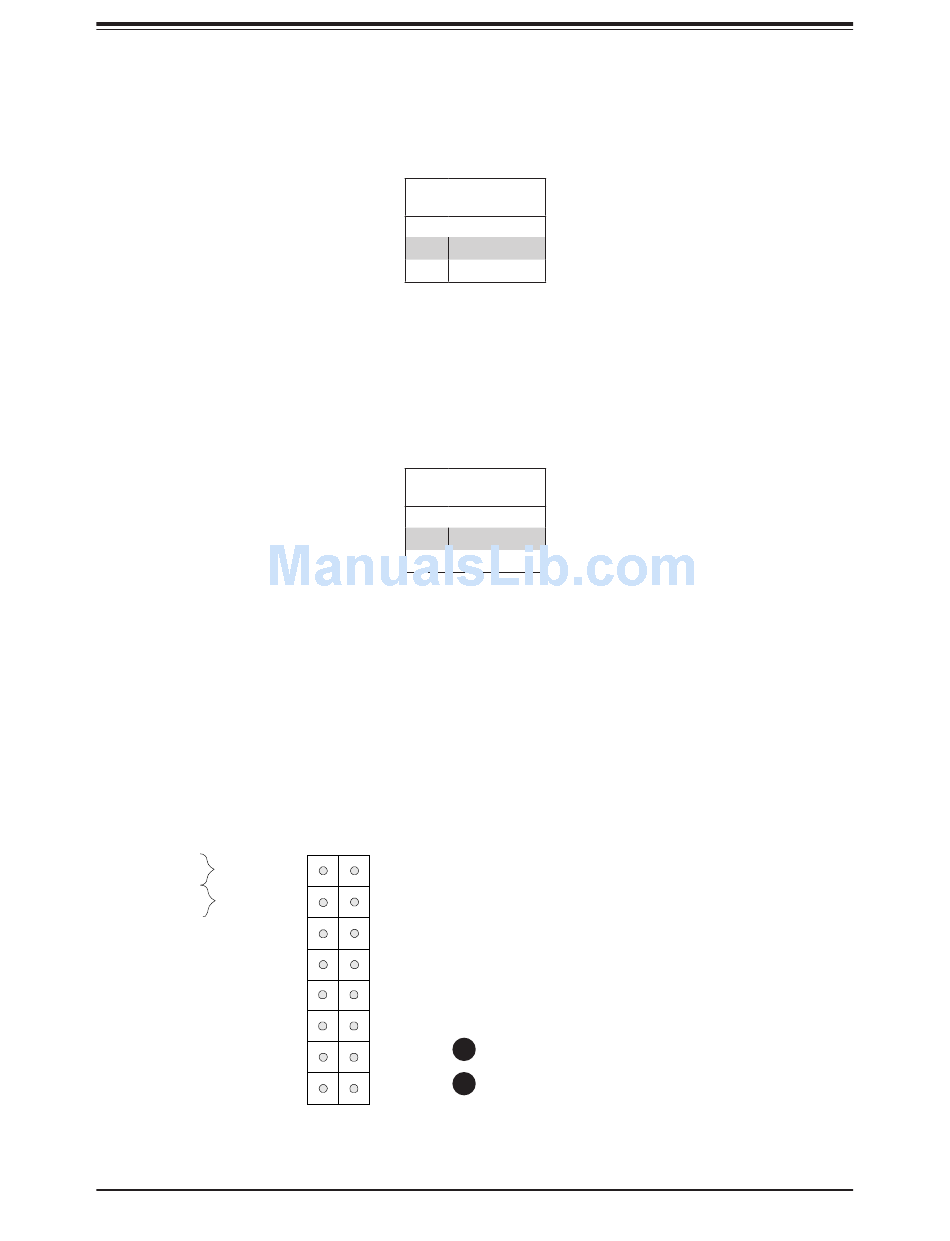

Power LED
The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin definitions.
HDD LED
The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate
the status of HDD-related activities, including SATA. Refer the table below for pin definitions.
PWR
Power Button
Reset
Reset Button
3.3V
UID
3.3V Stby
3.3V Stby
3.3V Stby
3.3V
Power LED
Pin Definitions (JF1)
Pin#
Definition
15
+3.3V
16
Pwr LED
HDD LED
Pin Definitions (JF1)
Pin#
Definition
13
3.3V Stby
14
HDD LED
1
2
Ground
Ground
Power Fail LED
OH/Fan Fail LED
NIC2 Activity LED
NIC1 Activity LED
2
HDD LED
1
PWR LED
15
16
34
1. PWR LED
2. HDD LED
