Disk-On-Module Power Connector
The Disk-On-Module (DOM) power connector at JSD1 provides 5V power to a solid-state DOM
storage device connected to one of the SATA ports. Refer the table below for pin definitions.

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable
from the chassis to the header to inform you when the chassis is opened.
JUIDB
VGA
COM1
JPL1
SRW2
LEDM1
A
SRW1
USB2/3
JD1
JMD1
M.2:PCI-E 3.0 X2 / I-SATA
2
JSAS2
I-SATA
JL1: CHASSIS
8-11 INTRUSION
JD1:
1-4:SPEAKER
JSAS1
I-SATA
4-7
I-SATA0
I-SATA1 I-SATA2
1
1
JSD1
DOM Power
Pin Definitions
Pin# Definition
1 5V
2 Ground
3 Ground
Chassis Intrusion
Pin Definitions
Pin# Definition
1 Intrusion Input
2 Ground
JWD1
LAN1
LAN2
LAN3
LAN4
BAR CODE
A2SDi-2C-HLN4F
REV:1.00
CPU
JTPM1
JF1
I-SATA3
JF1 PWR
RST X OH/FF
ON
JRT4
LED1
JRT3
41

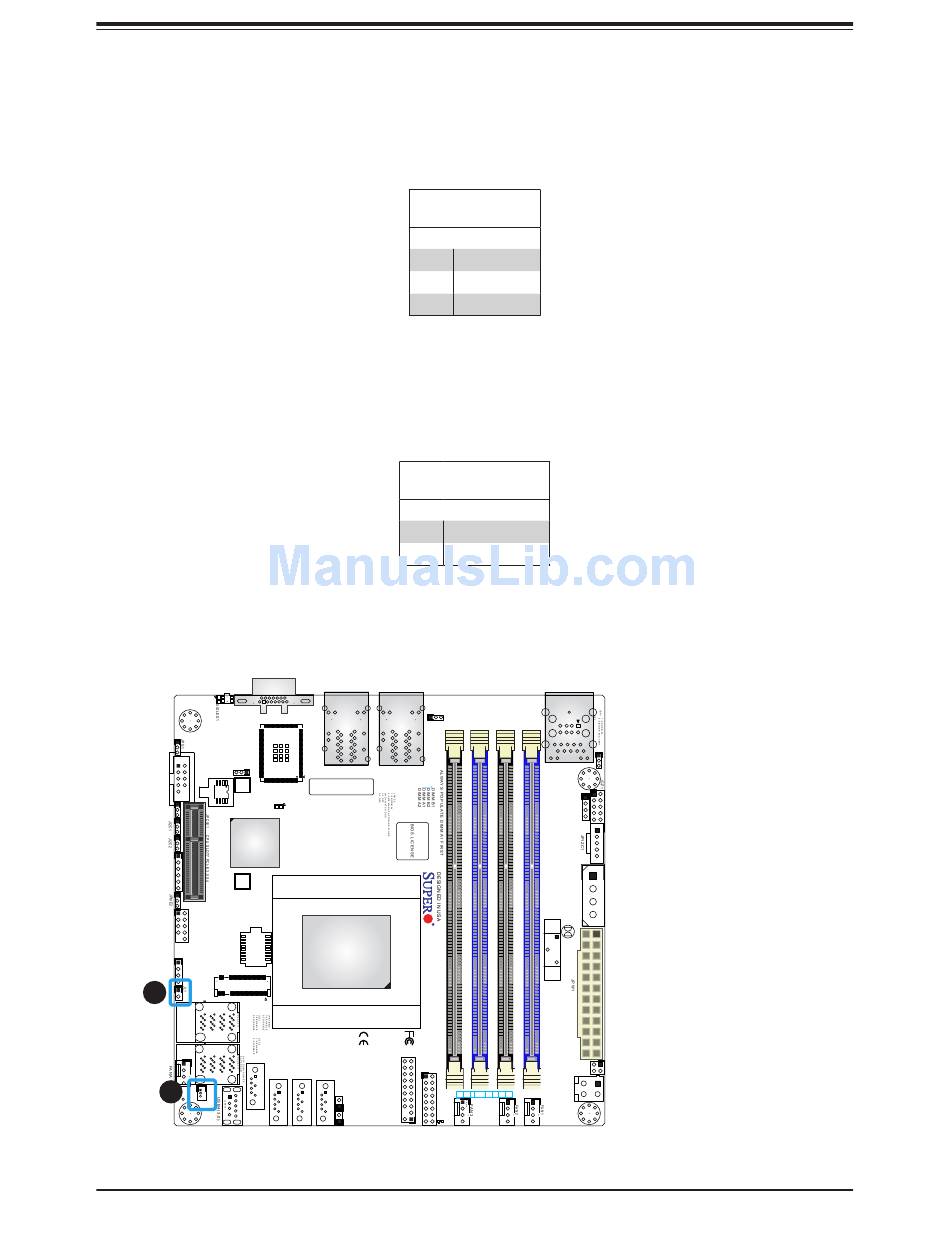

1. SATA DOM
