Supermicro A2SDi-4C-HLN4F User Manual page 39

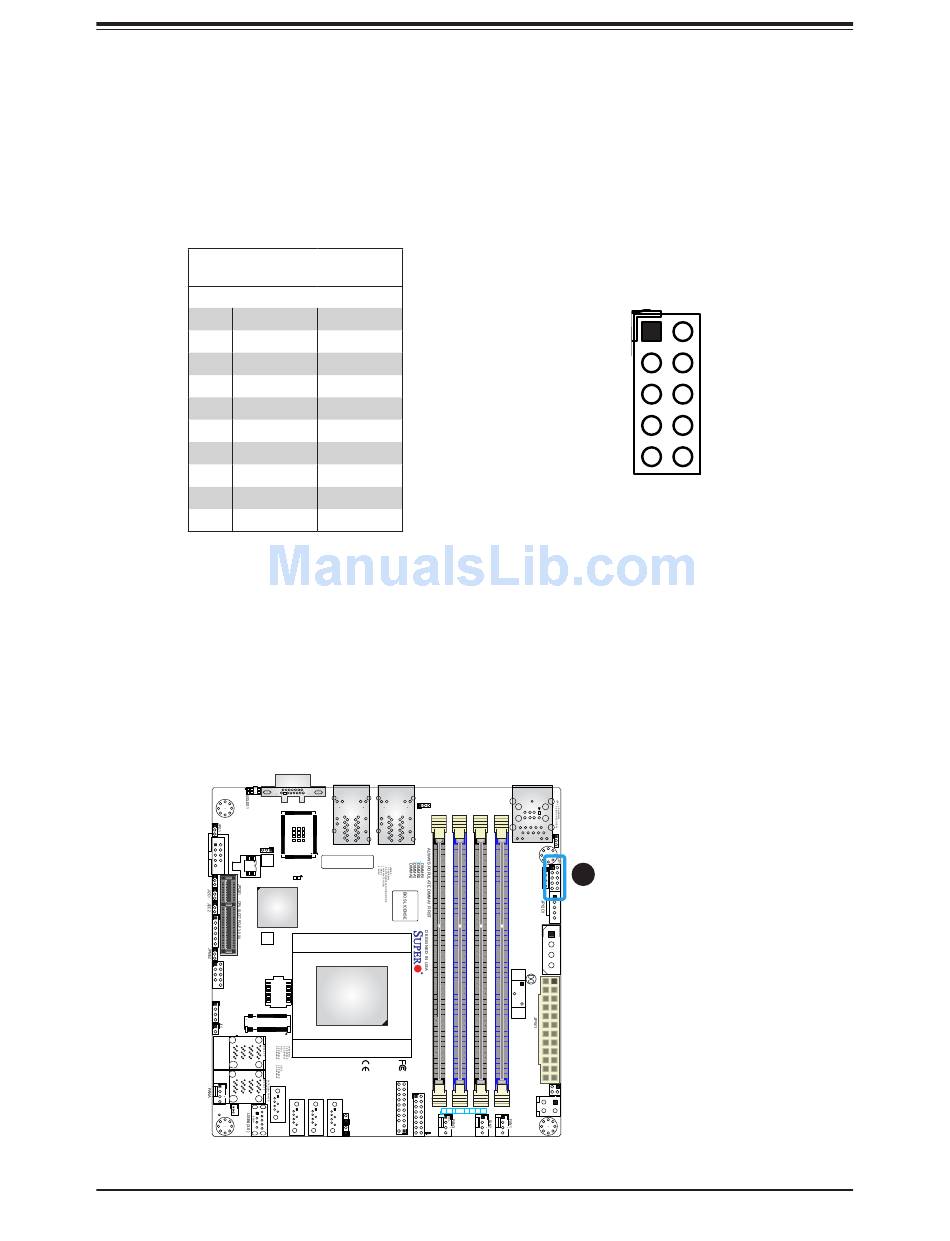

General Purpose I/O Header
JGPIO1 is a 10-pin general purpose I/O header located near the IPMI port. Each pin can be
configured to be an input or output pin. The GPIO is controlled via the PCA9554 8-bit GPIO
expansion. The base address is 0xF040(D31:F4).
JGP1 Header
Pin Definitions
Pin# Definition
1 +5V
2 Ground
3 GP0
4 GP1
5 GP2
6 GP3
7 GP4
8 GP5
9 GP6
10 GP7
JUIDB
COM1
JPL1
SRW2
LEDM1
A
SRW1
USB2/3
JD1
JMD1
M.2:PCI-E 3.0 X2 / I-SATA
JSAS2
I-SATA
JL1: CHASSIS
8-11 INTRUSION
JD1:
1-4:SPEAKER
JSAS1
I-SATA
4-7
I-SATA0
I-SATA1
1
JSD1
USB0/1
IPMI LAN
+5V
Ground
GPP_E0
GPP_F1
GPP_E1
GPP_F2
GPP_E2
GPP_F3
GPP_F0
GPP_F4
VGA
JWD1
LAN2 LAN1
LAN4 LAN3
BAR CODE
A2SDi-2C-HLN4F
REV:1.00
CPU
JTPM1
JF1
I-SATA2 I-SATA3
JF1 PWR NIC NIC HDD PWR
RST X OH/FF
ON 2 1 LED LED
JRT4
LED1
JRT3
39
BT1
Chapter 2: Installation
JBR1
1
1
JSMB1
9
JPH1
1. JGP1
JBR1
USB0/1
IPMI LAN
1
1
JSMB1
JPH1
JBT1
JBT1
BT1
JTGLED1
JPV1
2
10
