For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Document Part Number: 9152111M100I
Windows OS
Please read these instructions carefully before using this product, and save this manual for future use.
G-WIN Front IP65
P-Cap Panel PC
Quick Start Guide
Intel® Core™ i5-5200U
W10IH3S-GCH1(HB)
R12IH3S-GCM2(HB)
R15IH3S-GCC3(HB)
V1.0
Advertisement
Table of Contents
Related Manuals for Winmate W10IH3S-GCH1(HB)
Summary of Contents for Winmate W10IH3S-GCH1(HB)
- Page 1 R12IH3S-GCM2(HB) R15IH3S-GCC3(HB) Quick Start Guide V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 9152111M100I Windows OS Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
- 22 - VESA Mounting - 22 - Panel Mounting - 23 - Specifications - 24 - Appendix - 26 - Appendix A: Cleaning the Monitor - 26 - Appendix B: Winmate Software Development Kit - 27 - - 2 -... -
Page 3: Fcc Statement
FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"... - Page 4 European Union Electromagnetic Compatibility Directive (2014/30/EU) EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014 o IEC61000-4-6: 2014 o IEC61000-4-8: 2010 o IEC61000-4-11: 2004 EN55032: 2012/AC:2013 EN61000-3-2:2014 EN61000-3-3:2013 Low Voltage Directive (2014/35/EU) ...
- Page 5 Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We...
- Page 6 Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
-
Page 7: Safety Information
Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis. -
Page 8: Introduction

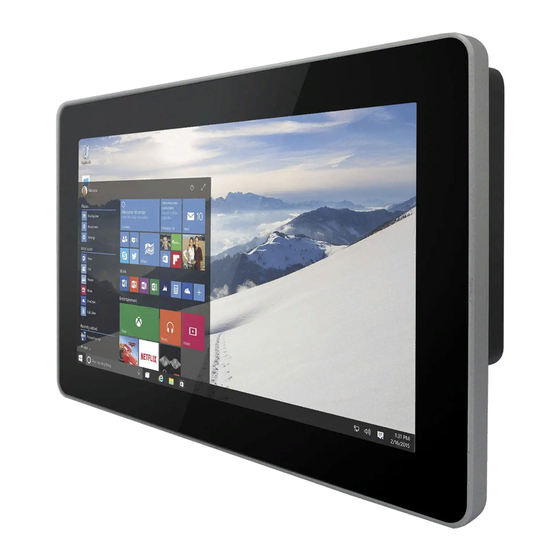

Introduction Congratulations on purchasing Winmate® GC65 Panel PC. The elegantly designed, yet rugged, industrial grade G-WIN GC series is designed for heavy duty applications. With rugged construction, ultimate computing power, GC65 series are guaranteed to meet "heavy duty" needs. This series feature high computing power and user-friendly interface with projected capacitive multi-touch (P-CAP) technology and support Windows®... -
Page 9: Package Content
Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide Driver CD &... -
Page 10: Product Overview
Product Overview W10IH3S-GCH1(HB) Unit: mm № Description № Description 12V DC in (optional 9- ① ⑤ 2 x RJ-45 36V DC) ② RS-232/422/485 ⑥ OSD Control Panel ③ 2 x USB 3.0 ⑦ 1 Watt Speaker ④ HDMI 1.4a - 10 -... - Page 11 R12IB3S-GCM2(HB) Unit: mm № Description № Description 12V DC in (optional 9- ① ⑤ 2 x RJ-45 36V DC) ② RS-232/422/485 ⑥ OSD Control Panel ③ 2 x USB 3.0 ⑦ 2 Watt Speaker ④ HDMI 1.4a - 11 -...
- Page 12 R15IB3S-GCC3(HB) Unit: mm № Description № Description 12V DC in (optional 9- ① ⑤ 2 x RJ-45 36V DC) ② RS-232/422/485 ⑥ OSD Control Panel ③ 2 x USB 3.0 ⑦ 2 Watt Speaker ④ HDMI 1.4a - 12 -...
-
Page 13: Getting Started
Getting Started Turning On Your Device Follow the following steps to turn on your device: 1. Connect the Panel PC to a thermal block (3-pin). 2. Connect the other side of the thermal block to the AC adapter. 3. Connect the AC adapter to the power cord. 4. -
Page 14: Operating The Panel Cpc
Operating the Panel CPC Winmate® GC65 Panel PC support several versions of Windows OS: Windows 10 IoT, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 7 Pro for Embedded Systems, and Windows Embedded Standard 7– WS7P. IMPORTANT: The device is shipped with the OS System according to your order. -
Page 15: How To Enable Watchdog
To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. To enable watchdog in Watchdog AP follow the instructions below: 1. On the right bottom side of the desktop screen, click triangle button to show hidden icons. - Page 16 Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches Every 9 min watchdog timer will be reset to 10 min. Settings Description The system automaticity restarts when this Watchdog countdown time reaches zero.
-
Page 17: Turning Off Your Device
Turning Off Your Device To shut down the device: 1. Tap Start >Shut down. 2. Wait for your Panel PC to completely turn off before disconnecting the power cord (if necessary). - 17 -... -
Page 18: Installation
Installation Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 19: Connecting To Other Devices
Connecting to Other Devices This section explains how to connect external interfaces to the Panel Power Connector DC Jack GC65 Panel PC has a power jack connector that accepts12V DC-in power input. Pin № Pin № Signal Name Signal Name DC_IN Terminal Block Notice that 9-36V DC input is optional and may not be present tin... - Page 20 Serial Port Connector Use COM1 serial port connector to connect your Panel PC to external devices such as modem or printer. You can configure serial port setting via jumpers located on the motherboard. You need to open the housing in order to access the jumpers. Pin №...
- Page 21 RJ45 Connector GC65 Panel PC has two RJ45 connectors that support 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin № Pin № Signal Name Signal Name TX1+ TX1- TX2+ TX2- TX3+ TX3- TX4+ TX4- USB 3.0 Connector GC65 Panel PC has two USB3.0 connectors. Use USB3.0 connector to connect external devices such as mouse or keyboard to the Panel PC.
-
Page 22: Mounting
100x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 22 -... -
Page 23: Panel Mounting
Panel Mounting Panel Mount mounting solutions is suitable for many applications where Panel PC should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw Hole Diameter, mm 10.1” 249 x 157.6 M4x5 12.1”... -
Page 24: Specifications
Specifications Panel PC Specifications Model Name W10IB3S-GCH1(HB) R12IB3S-GCM2(HB) R15IB3S-GCC3(HB) Display 10.1” TFT 12.1” TFT 15” TFT Size/Type (Wide) Resolution 1024 x 600 1024 x 768 1024 x 768 Brightness 450 nits 500 nits 250 nits Contrast Ratio 800:1(typ.) 700:1(typ.) 700:1 (typ.) -75~80(H);... - Page 25 Input/ Output COM Port 1 x RS-232/422/485 (Default RS232) USB Port 2 x USB 3.0 Ethernet 2 x RJ 45-10/100/1000 Mbps Speaker 1 x 1 Watt/ 2 Watt Speaker (Depends on the model) HDMI 1 x HDMI 1.4a Power Specifications 12V DC in (Default) 12V DC in (Default) 12V DC in (Default)
-
Page 26: Appendix
Appendix Appendix A: Cleaning the Monitor Before cleaning: Make sure the device is turned off. Disconnect the power cable from any AC outlet. When cleaning: Never spray or pour any liquid directly on the screen or case. ... -
Page 27: Appendix B: Winmate Software Development Kit
Appendix B: Winmate Software Development Kit Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for GC65 Panel PC with Intel® Core™ i5-5200U processor: Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
