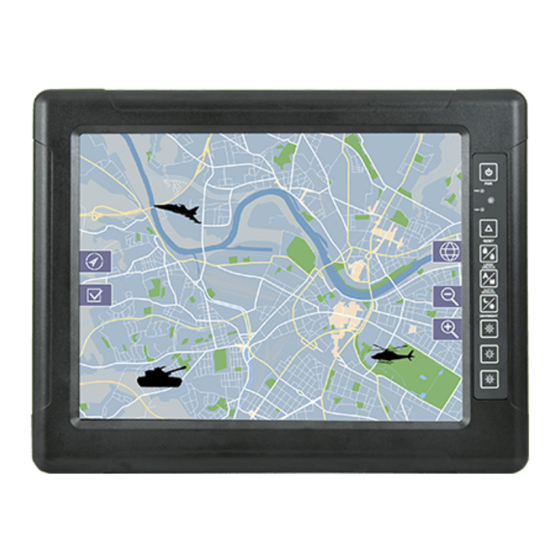

15" G-WIN Rugged
Full IP67 Panel PC
R15IH3S-67A3(HB)
R15IB3S-67A3(HB)
R15ID3S-67A3(HB
Quick Start Guide
V1.0
For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Document Part Number: 9152111I102C
Please read these instructions carefully before using this product, and save this manual for future use.
Advertisement
Table of Contents
Related Manuals for Winmate R15IH3S-67A3HB
Summary of Contents for Winmate R15IH3S-67A3HB
- Page 1 R15ID3S-67A3(HB Quick Start Guide V1.0 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part Number: 9152111I102C Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
4.3.3 Serial Interface Connector - 23 - 4.3.4 USB 2.0 Connector - 24 - 5 SPECIFICATIONS - 25 - APPENDIX - 27 - Appendix A: Cleaning the Monitor - 27 - Appendix B: Winmate Software Development Kit - 28 - - 2 -... -
Page 3: Fcc Statement
FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. -
Page 4: Copyright Notice
Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for... -
Page 5: Safety Information
Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis. -
Page 6: Introduction
1 INTRODUCTION Congratulations on purchasing Winmate® G-WIN Rugged Full IP67 Panel PC. Panel PC features 15” panel with sunlight readable screen, fanless cooling system, low power consumption, WLAN integration, great ability for anti-shock & vibration. The robust design fits the demands for every harsh environment applications such as logistics, transportation/ fleet management, heavy vehicles, utility and also outdoor usage. -
Page 7: Package Contents
1.2 Package Contents Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide Driver CD &... - Page 8 Your package may include optional accessories based on your order: Mounting Bracket 99KK15A00001 - 8 -...
-
Page 9: Description Of Parts
1.3 Description of Parts Unit: mm Dimensions: 398 x 308 x 58 № № Description Description ① ④ LAN (M25 Type) 9-36V DC (M25 Type) ② ⑤ USB (M25 Type) OSD Control Panel ③ RS232 (M25 Type) - 9 -... -
Page 10: Physical Buttons And Led Indicators
1.4 Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Panel PC. - 10 -... - Page 11 Physical Buttons Icon Button Function Power Turn ON or turn OFF the Panel PC. Clear any pending errors or events and brings a Reset system to normal condition or an initial state. Tap this button to lock / unlock the function of Lock / Unlock OSD panel.
-
Page 12: Getting Started
2 GETTING STARTED 2.1 Turning on Your Device 1. Remove the protective cap of the power connector. 2. Connect power cable to the connector of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection. -
Page 13: How To Enable Watchdog
To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. To enable watchdog in Watchdog AP follow the instructions below: 1. - Page 14 Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0. Every 9 min watchdog timer will be reset to 10 min. Settings Description The system automaticity restarts when this countdown time reaches zero.
-
Page 15: Turning Off Your Device
2.3 Turning off Your Device To shut down your device: 1. Select the Start button ( ) and then select Power > Shut down. 2. Disconnect the power cord from the Panel PC to completely turn off the device. To forcibly shut down your device, press and hold for three to five seconds the power button located on the front OSD control panel. -
Page 16: Mounting
100x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 16 -... -
Page 17: Dash/ Yoke Mounting
3.2 Dash/ Yoke Mounting You can purchase mounting bracket from Winmate as an optional accessory. Part Number: 99KK15A00001 Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw hole for each other. 2. Secure three M5x10 screws to fix the device upon the bracket stand. - Page 18 4. Loosen the hand-screw adjustment tool, then you can adjust product angle on the stand. Then screw the product tightly again to secure the stand position. Desk Stand Dimensions - 18 -...
-
Page 19: Installation
4 INSTALLATION 4.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 20: Connecting To Other Devices
4.2 Connecting to Other Devices This Panel PC comes with various interfaces located on the bottom panel. All of these connectors have been shipped with protective caps. To ensure the waterproof function can work properly, make sure that the protective caps and have been securely tightened whenever the connectors are not used. -
Page 21: Connector Description
4.3 Connector Description The Panel PC features M25 type connectors with protective cap and has full IP65 rating. 4.3.1 Power Input Connector Panel PC has M25 type 3 pin male power input connector which accepts 9-36 V DC power input. Use waterproof power cable to connect the Panel PC to the source of power. -
Page 22: Ethernet Connector
4.3.2 Ethernet Connector Panel PC has M25 type Ethernet connector. Use waterproof LAN cable to connect the Panel PC to the Ethernet. - 22 -... -
Page 23: Serial Interface Connector
4.3.3 Serial Interface Connector Panel PC has M25 type 10 pin male RS-232 connector. Use waterproof serial cable to connect the Panel PC to external devices. - 23 -... -
Page 24: Usb 2.0 Connector
4.3.4 USB 2.0 Connector Panel PC has M25 12 pin male Giga LAN and USB connector that supports two LAN and one USB 2.0. Use waterproof USB 2.0 cable to connect the Panel PC to external devices. - 24 -... -
Page 25: Specifications
5 SPECIFICATIONS Model Name R15ID3S- R15IH3S-67A3(HB) R15IB3S-67A3(HB) 67A3(HB) Display 15” 15” 15” Size/Type Resolution 1024 x 768 1024 x 768 1024 x 768 Std: 400 nits Std: 400 nits Std: 400 nits Brightness Opt.: 1000 nits Opt.: 1000 nits Opt.: 1000 nits Contrast Ratio 700:1 700:1 700:1... - Page 26 Input/ Output 2 x USB (M25 Type) Serial 1 x RS-232 (M25 Type) Interface Ethernet 1 x LAN (M25 Type) Power 1 x 9 ~36V DC (M25 Type) Power Specifications 9~36V DC in with isolation Power Input Optional 6-60V DC in, with Ignition On/Off delay Power 47W (typ.) Consumption...
-
Page 27: Appendix
APPENDIX Appendix A: Cleaning the Monitor Before cleaning: Make sure the device is turned off. Disconnect the power cable from any AC outlet. When cleaning: Never spray or pour any liquid directly on the screen or case. ... -
Page 28: Appendix B: Winmate Software Development Kit
Appendix B: Winmate Software Development Kit Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for 15” G-WIN Rugged Full IP67 Panel PC: Item File Type Description Watchdog SDK Watchdog Utility Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. - Page 29 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
- Page 30 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ _______________________________________________________________...
- Page 31 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
