Winmate R15IH3S-SPC369 Quick Start Manual

Winmate R15IH3S-SPC369 Quick Start Manual

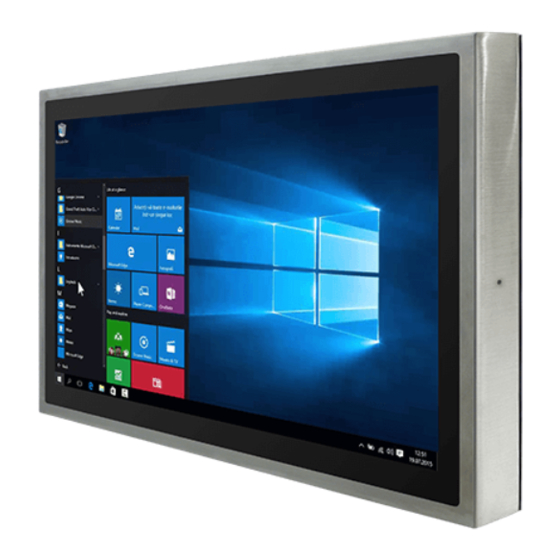

15-21.5” ip69k stainless p-cap panel pc, intel core i5-5250u broadwell 1.6ghz turbo to 2.7ghz
Hide thumbs Also See for R15IH3S-SPC369:

Advertisement

Quick Links

15~21.5" IP69K Stainless
Intel® Core™ i5-5250U Broadwell 1.6GHz (turbo to 2.7GHz)
Quick Start Guide
For more information on this and
other Winmate products, please
visit our website at:
www.winmate.com
Version 1.0
Document Part Number: 915211101032
Please read this instructions before operating the device and retain them for future reference.
P-Cap Panel PC
Model No. R15IH3S-SPC369
R19IH3S-SPM169
W22IH3S-SPA369

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R15IH3S-SPC369 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Winmate R15IH3S-SPC369

  • Page 1 15~21.5” IP69K Stainless P-Cap Panel PC Intel® Core™ i5-5250U Broadwell 1.6GHz (turbo to 2.7GHz) Model No. R15IH3S-SPC369 R19IH3S-SPM169 W22IH3S-SPA369 Quick Start Guide For more information on this and other Winmate products, please visit our website at: www.winmate.com Version 1.0 Document Part Number: 915211101032...
  • Page 2: Table Of Contents

    3.6.1 VESA Mounting - 21 - 3.6.2 Yoke Mounting - 22 - ❹ SPECIFICATIONS - 23 - APPENDIX - 25 - Appendix A: Cleaning the Monitor - 25 - Appendix B: Winmate Software Development Kit - 26 - - 2 -...
  • Page 3: Fcc Statement

    IP69K Stainless Panel PC Quick Start Guide Preface FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference.  This device must accept any interference received ...
  • Page 4 Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for...
  • Page 5 IP69K Stainless Panel PC Quick Start Guide Preface Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
  • Page 6 IP69K Stainless Panel PC Quick Start Guide Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
  • Page 7: Features

    ❶ INTRODUCTION Congratulations on purchasing Winmate® IP69K Stainless P-Cap Panel PC. Winmate flat stainless steel P-Cap panel PCs and display are designed for applications with high hygienic requirements. IP69K series is completely waterproof with IP69K level of protection allowing for easy cleaning and sterilization.
  • Page 8: Package Content

    IP69K Stainless Panel PC Quick Start Guide Introduction 1.2 Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Factory shipment list: Quick Start Guide Driver CD &...
  • Page 9: Product Overview

    IP69K Stainless Panel PC Quick Start Guide Introduction 1.3 Product Overview This section contains mechanical drawing of the Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. 1.3.1 Dimensions 15" Unit: mm Dimensions : 378 x 301 x 56.4 1.3.2 Dimensions 19”...
  • Page 10: Dimensions 21.5

    IP69K Stainless Panel PC Quick Start Guide Introduction 1.3.3 Dimensions 21.5” Unit: mm Dimensions : 541 x 337 x 53 - 10 -...
  • Page 11: Physical Buttons And Led Indicators

    IP69K Stainless Panel PC Quick Start Guide Introduction 1.4 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Off Press to power on or power off the device LED Indicators LED Type...
  • Page 12: Connectors

    IP69K Stainless Panel PC Quick Start Guide Introduction 1.5 Connectors IP69K Stainless P-Cap Panel PC has M25 type connectors with protection cap and air venting valve. - 12 -...
  • Page 13: ❷ Getting Started

    IP69K Stainless Panel PC Quick Start Guide Getting Started ❷ GETTING STARTED 2.1 Turning On Follow the following steps to turn on your device: 1. Connect the AC adapter to the DC-in jack connector located on the back side of the Panel PC. 2.
  • Page 14: How To Enable Watchdog

    Getting Started 2.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center. Refer to the User Manual for more details.
  • Page 15: Turning Off Your Device

    IP69K Stainless Panel PC Quick Start Guide Getting Started Settings Description The system automaticity restarts when this countdown time reaches zero. Watchdog Countdown Time Default: 10 min To set a cycle time to automatically reset watchdog timer. Periodically Feed Time Default: 9 min Enable or disable watchdog.
  • Page 16: ❸ Installation

    IP69K Stainless Panel PC Quick Start Guide Installation ❸ INSTALLATION 3.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device:  Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point.
  • Page 17: Connector Pin Assignments

    IP69K Stainless Panel PC Quick Start Guide Installation 3.2 Connector Pin Assignments This Panel PC is equipped with four M25 type connectors which are waterproof. Use only the cables that are included in the package. The pin assignments of the cables are as follows.
  • Page 18: Serial Cable

    IP69K Stainless Panel PC Quick Start Guide Installation 3.3 Serial Cable The IP69K Stainless P-Cap Panel PC has M25 type serial port connector. Use serial cable to connect serial interfaces. - 18 -...
  • Page 19: Ethernet Cable

    IP69K Stainless Panel PC Quick Start Guide Installation 3.4 Ethernet Cable The IP69K Stainless P-Cap Panel PC has M25 type Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet. - 19 -...
  • Page 20: Usb 2.0 Cable

    IP69K Stainless Panel PC Quick Start Guide Installation 3.5 USB 2.0 Cable The IP69K Stainless P-Cap Panel PC has M25 type USB 2.0 connector. Use USB 2.0 cable to connect external devices such as mouse or keyboard to the Panel PC. - 20 -...
  • Page 21: Mounting

    3.6.1 VESA Mounting The Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate...
  • Page 22: Yoke Mounting

    Quick Start Guide Installation 3.6.2 Yoke Mounting Yoke Mount solution allows installing the Panel PC with the bracket (not supplied by Winmate). Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw holes for each other. 2. Secure screws to fix the device upon the bracket stand.
  • Page 23: ❹ Specifications

    IP69K Stainless Panel PC Quick Start Guide Specifications ❹ SPECIFICATIONS Hardware Specifications Model Name R15IH3S-SPC369 R19IH3S-SPM169 W22IH3S-SPA369 Display 15” 19” 21.5” Size Resolution 1024 x 768 1280 x 1024 1920 x 1080 Brightness (typ.) (typ.) (typ.) Contrast 700 : 1(typ.) 1000 : 1 (typ.)
  • Page 24 IP69K Stainless Panel PC Quick Start Guide Specifications Input/ Output Connectors Ethernet LAN 1 x RJ45 - 10/100/1000 Mbps 1 x RS232 2 x USB Type-A Receptacle Power 1 x 12V DC Mechanical Specification Cooling Fanless System Mounting Yoke Mount, VESA Mount Environmental Consideration Operating 0°C to +45°C...
  • Page 25: Appendix

    IP69K Stainless Panel PC Quick Start Guide Appendix APPENDIX Appendix A: Cleaning the Monitor NOTE: The IP69K Stainless Panel PCs withstand regular intense cleaning and could hold up against steam and high-pressure water. The devices are able to sustain water temperatures up to 80°C and a water jets.
  • Page 26: Appendix B: Winmate Software Development Kit

    Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. Also, you can download drivers from Winmate Download Center. Winmate Download Center Go to http://www.winmate.com / >...
